Toyota IQ EV
2012-09 → 2012-12 · chassis KPJ10 · catalogue 104510 · Europe
Supported model
Data version 2013-10

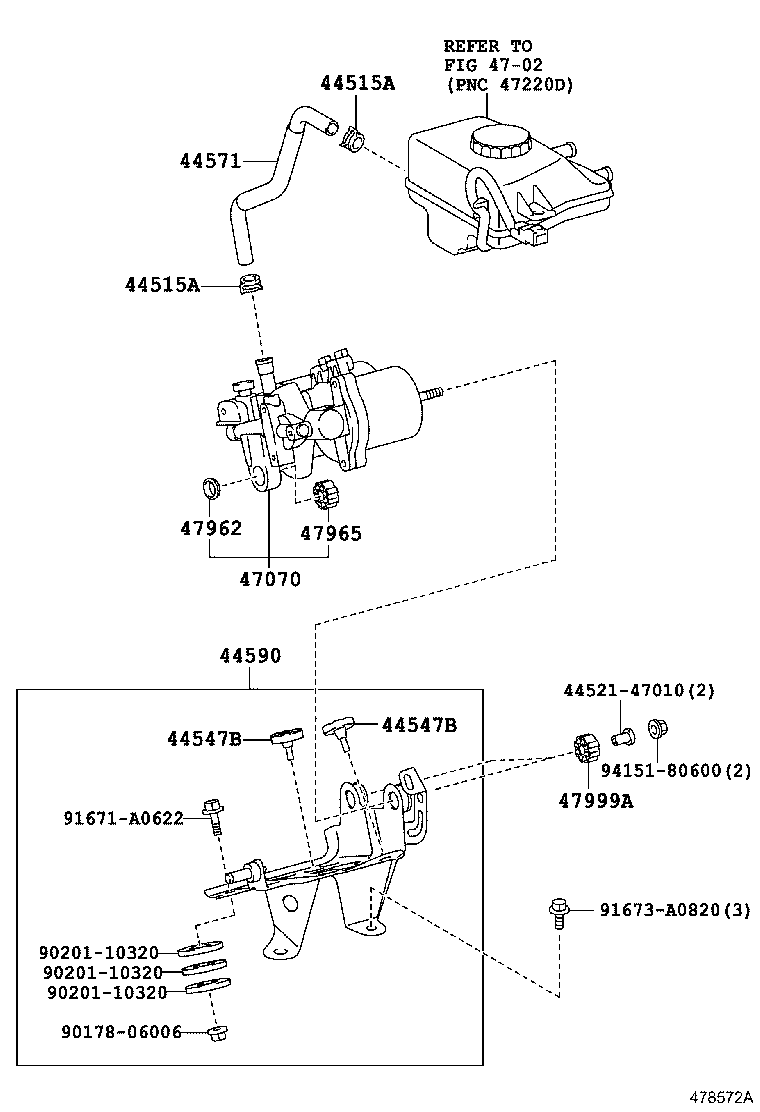

Brake Tube & Clamp
37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44515A | Clip(FOR BRAKE ACTUATOR HOSE) |
| 44547B | Cushion, Brake Actuator Bracket |
| 44571 | Hose, Brake Actuator |
| 44590 | Bracket Assy, Brake Actuator |
| 47070 | Pump Assy, Brake Booster |
| 47311 | Tube, Front Brake, NO.1 |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313J | Hose, Flexible, NO.2(FOR FRONT) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47317 | Tube, Front Brake, NO.7 |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47322 | Tube, Rear Brake, NO.2 |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47361 | Clamp, Tube |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371B | Clamp, Brake Tube, NO.6 |
| 47371C | Clamp, Brake Tube, NO.7 |
| 47371D | Clamp, Brake Tube, NO.8 |
| 47371E | Clamp, Brake Tube, NO.9 |
| 47371F | Clamp, Brake Tube, NO.10 |
| 47371G | Clamp, Brake Tube, NO.11 |
| 47371H | Clamp, Brake Tube, NO.12 |
| 47371M | Clamp, Brake Tube, NO.13 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47381 | Bracket, Brake Tube Clamp NO.1 |
| 47962 | Collar, Brake Booster Pump |
| 47965 | Bush, Brake Booster Pump |
| 47999A | Bush(FOR BRAKE TRACTION ACTUATOR BRACKET) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
