Toyota IQ EV

2012-09 → 2012-12 · chassis KPJ10 · catalogue 104510 · Europe

Supported model Data version 2013-10

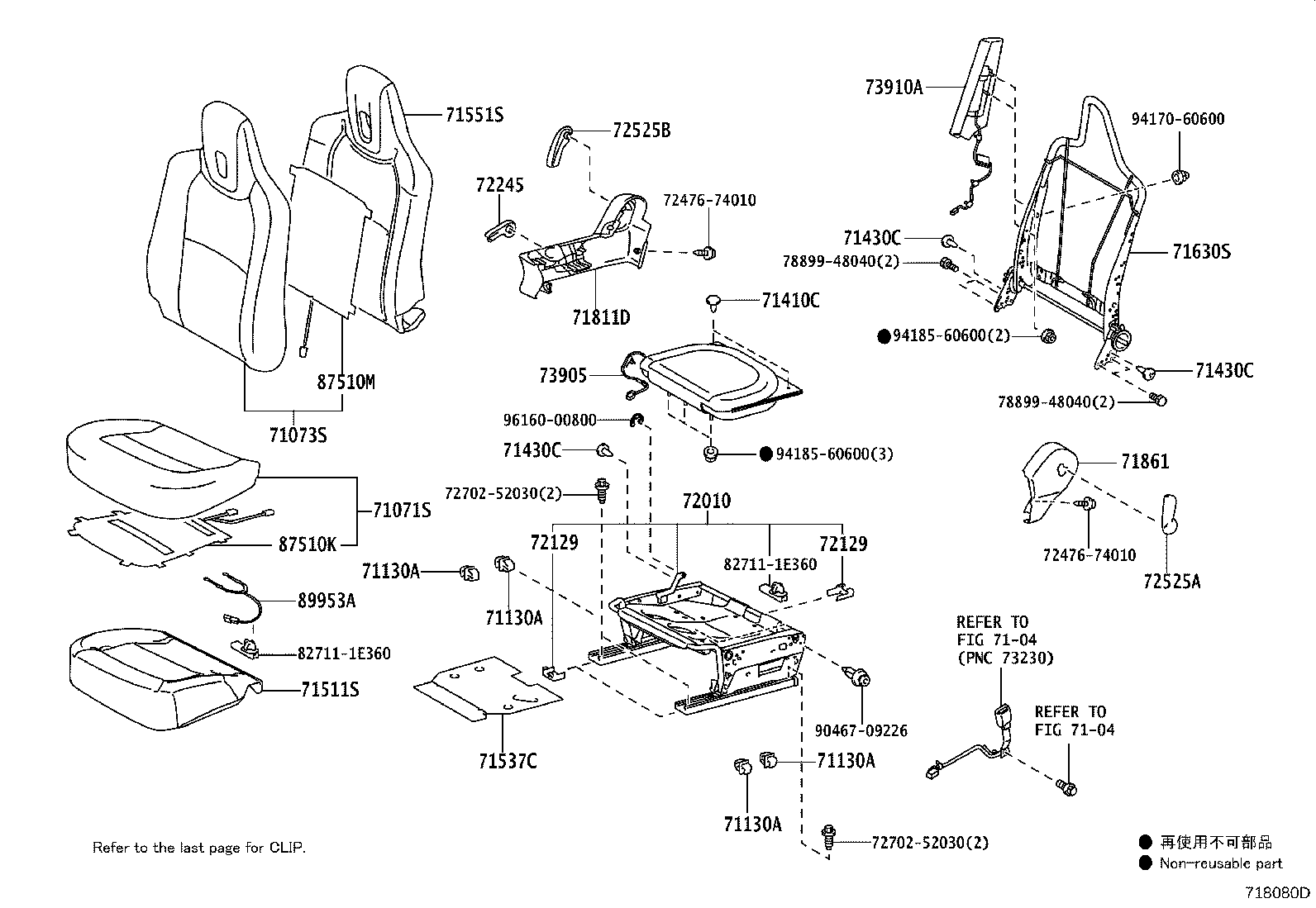

Front Seat & Seat Track

35 part groups · 3 illustrations

PNC	Description
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71130A	Clip, Front Seat Leg
71410C	Clip(FOR FRONT SEAT CUSHION)
71430C	Clip
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537C	Protector, Front Seat Cushion Edge, RH
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
72010	Adjuster Assy, Front Seat, RH
72020	Adjuster Assy, Front Seat, LH
72129	Protector, Seat Track Lower Rail, NO.1
72245	Lever, Seat Track Lock Open, RH
72246	Lever, Seat Track Lock Open, LH
72525A	Handle, Reclining Adjuster Release, RH
72525B	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
73905	Airbag Sub-assy, Front Seat, RH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH
89953A	Sensor, Belt Warning Occupant Detection

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
