Toyota IQ EV

2012-09 → 2012-12 · chassis KPJ10 · catalogue 104510 · Europe

Supported model Data version 2013-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

10 part groups · 2 illustrations

Illustrations

Figure 718064B

718064B 2012-09 → —

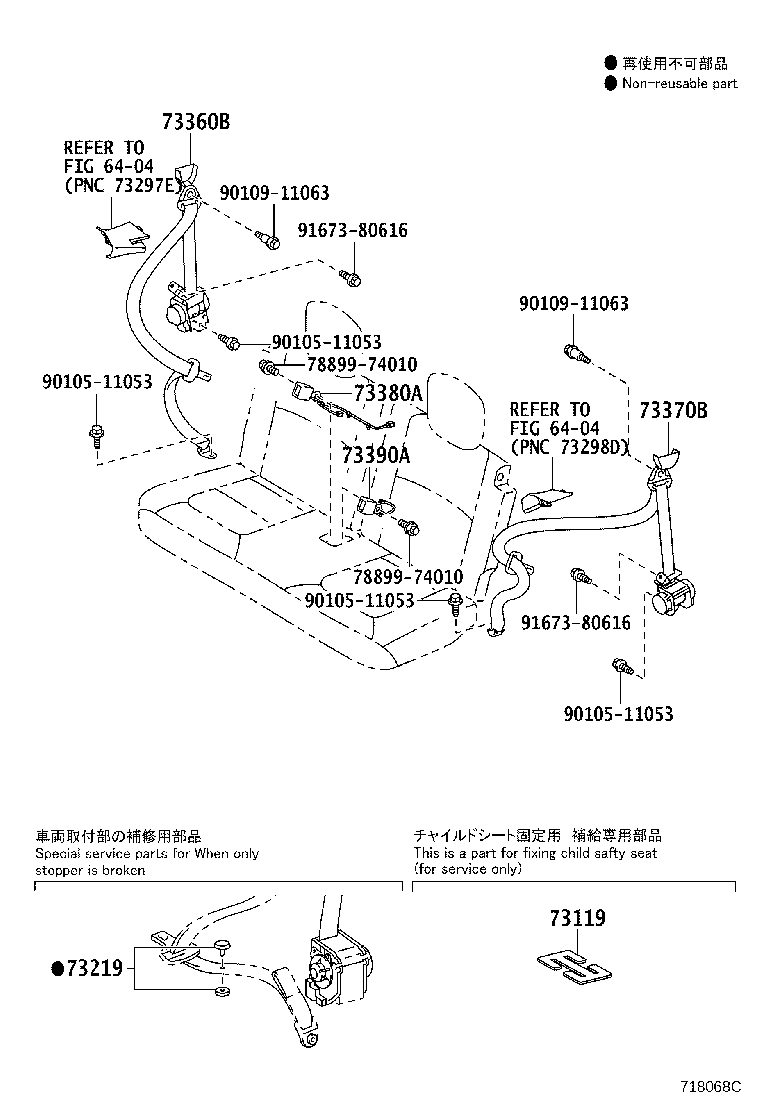

Figure 718068C

718068C 2012-09 → —

Part groups

PNC	Description
73119	Plate, Seat Belt Webbing Clip
73210	Belt Assy, Front Seat Outer, RH
73219	Stopper, Tongue Plate
73220	Belt Assy, Front Seat Outer, LH
73230	Belt Assy, Front Seat Inner, RH
73240	Belt Assy, Front Seat Inner, LH
73360B	Belt Assy, Rear Seat, Outer
73370B	Belt Assy, Rear Seat, Outer
73380A	Belt Assy, Rear Seat, Inner
73390A	Belt Assy, Rear Seat, Inner

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
