Toyota IQ EV

2012-09 → 2012-12 · chassis KPJ10 · catalogue 104510 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

26 part groups · 3 illustrations

Illustrations

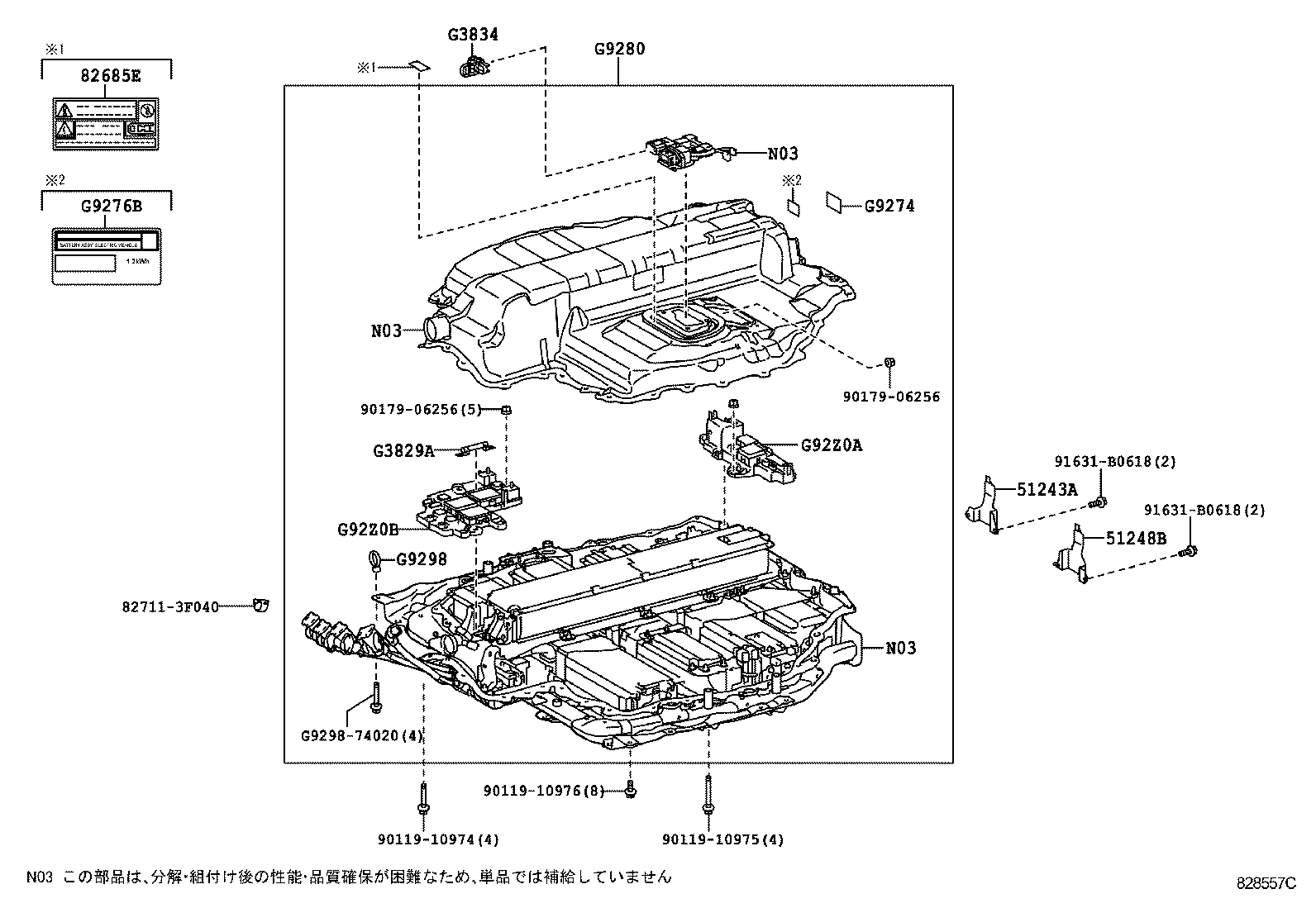

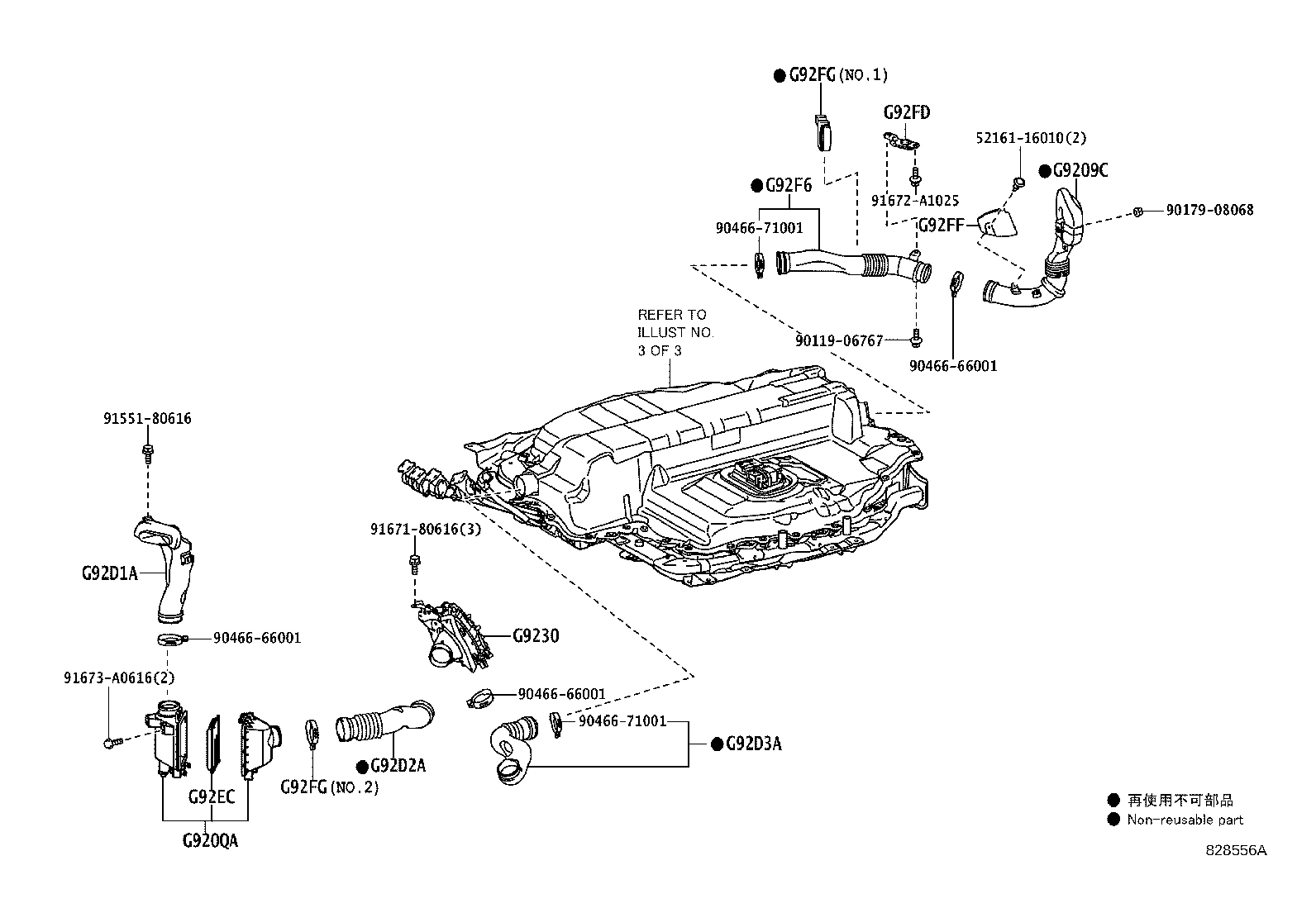

Figure 828572A 828572A 2012-09 → — Figure 828556A 828556A 2012-09 → — Figure 828557C 828557C 2012-09 → —

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800J Terminal, Battery Negative
28898 Plate, Battery
51243A Member, Anti Shake
51248B Reinforcement, Frame NO.4 Crossmember, LH
82685E Plate, Service Plug Caution
G3829A Fuse, Electric Vehicle
G3834 Grip, Service Plug
G9209C Duct Sub-assy, EV Battery
G920QA Cleaner Sub-assy, EV Battery
G9230 Blower Assy, Battery Cooling
G9274 Sheet, Battery Name
G9276B Label, EV Battery Name
G9280 Battery Assy, EV, NO.1
G9298 Clamp, HV Battery
G92D1A Duct, EV Battery Intake, NO.1
G92D2A Duct, EV Battery Intake, NO.2
G92D3A Duct, EV Battery Intake, NO.3
G92EC Filter, EV Battery Air Cleaner
G92F6 Duct, EV Battery Exhaust, NO.6
G92FD Bracket, Battery Cooling, NO.2
G92FF Plate, Battery Cooling
G92FG Clamp, Battery Cooling
G92Z0A Block Assy, EV Battery Junction, NO.1
G92Z0B Block Assy, EV Battery Junction, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
