Toyota IQ EV

2012-09 → 2012-12 · chassis KPJ10 · catalogue 104510 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

23 part groups · 7 illustrations

Illustrations

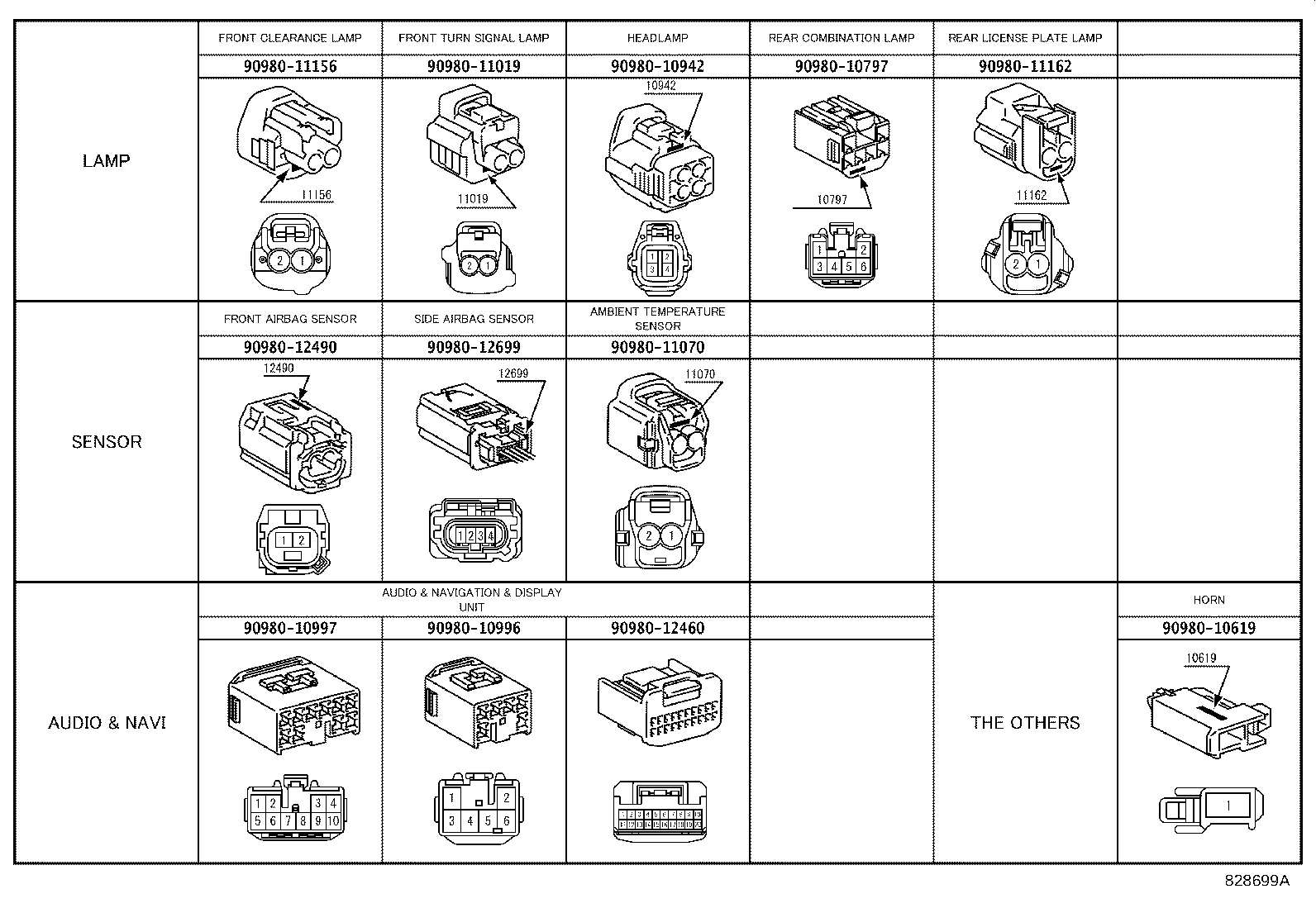

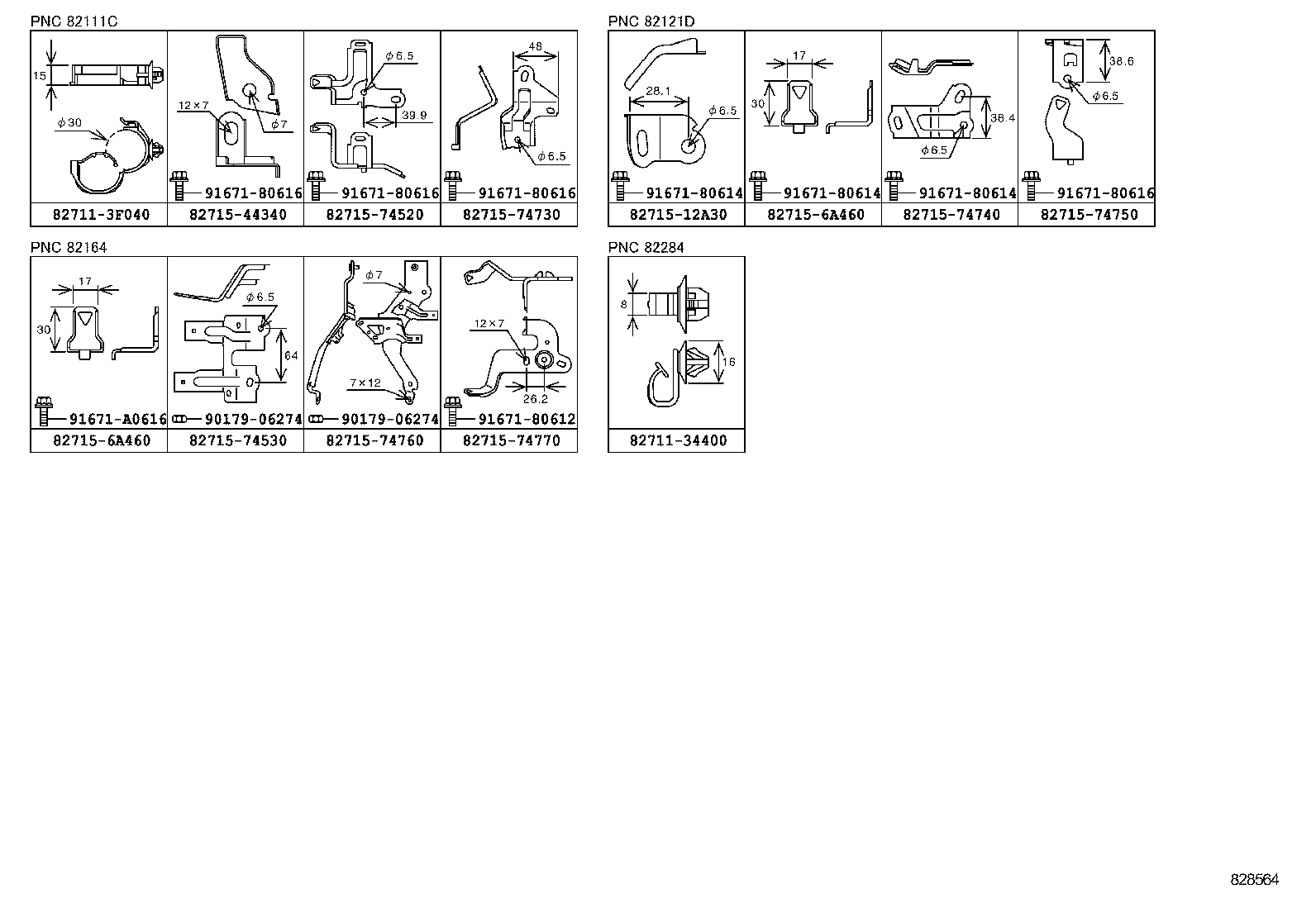

Figure 828565A 828565A 2012-09 → — Figure 828560 828560 2012-09 → — Figure 828568A 828568A 2012-09 → — Figure 828562 828562 2012-09 → — Figure 828563A 828563A 2012-09 → — Figure 828564 828564 2012-09 → — Figure 828699A 828699A 2012-09 → —

Part groups

PNCDescription

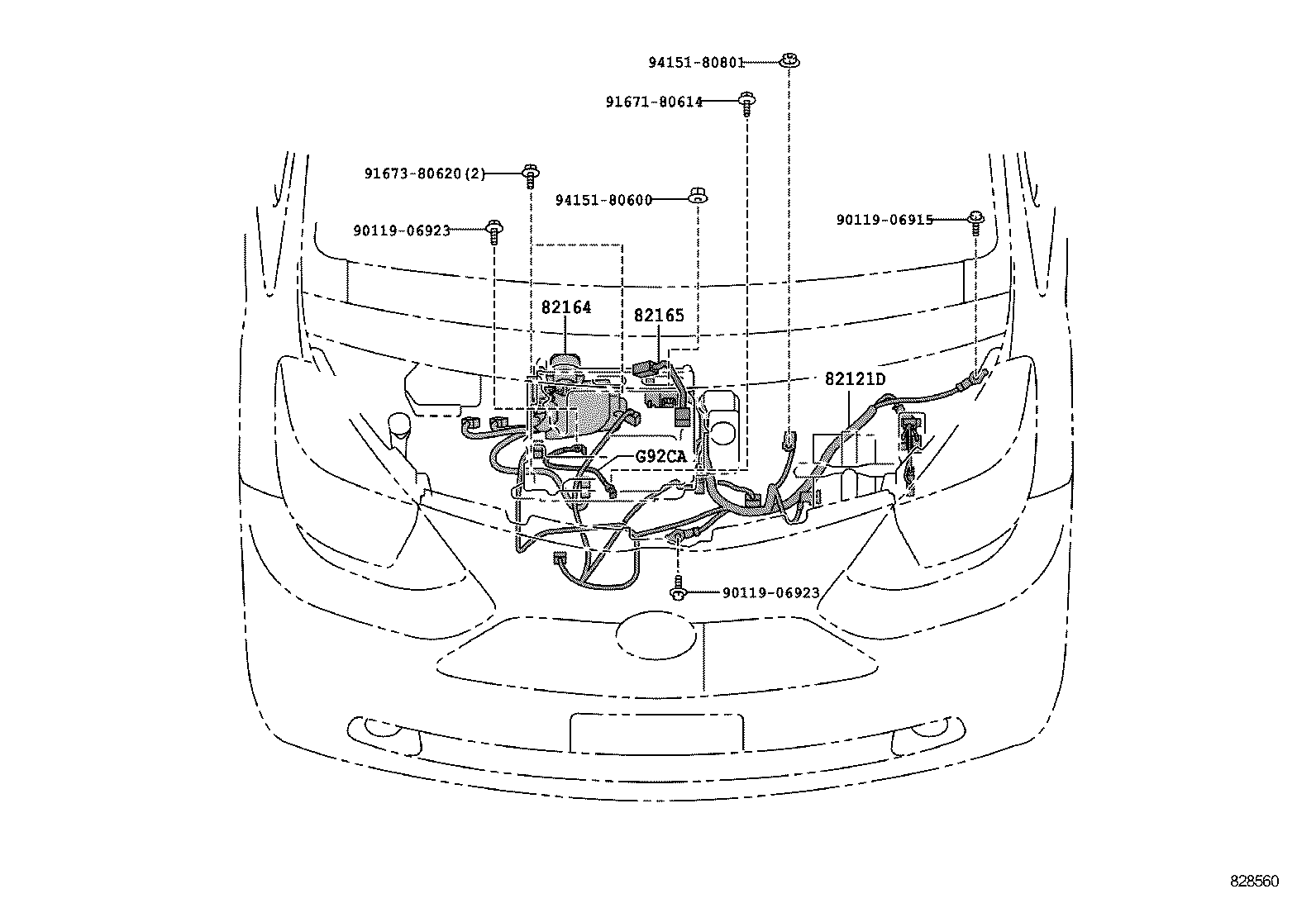

82111C Wire, Front Compartment, Main
82121D Wire, Motor

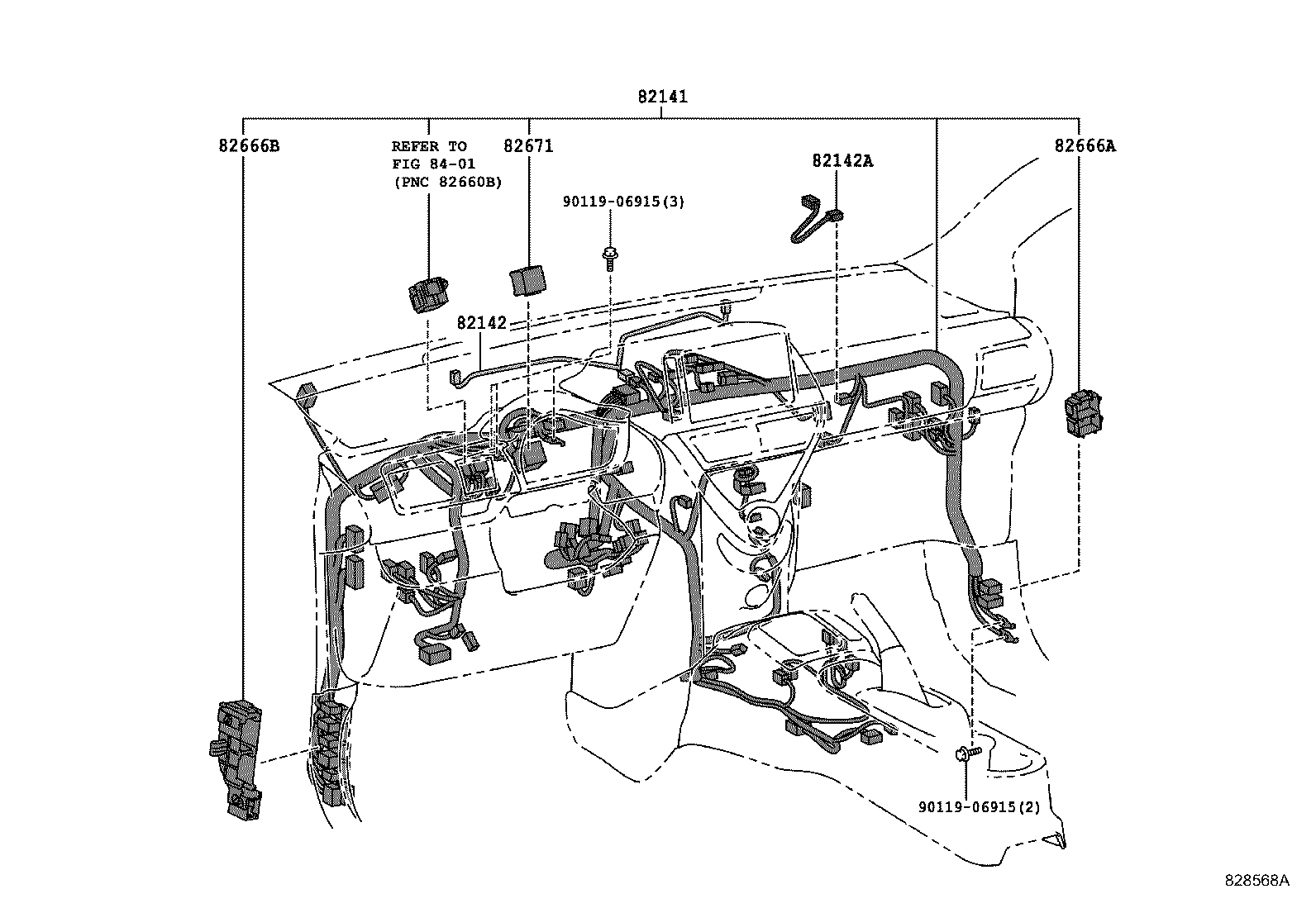

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2

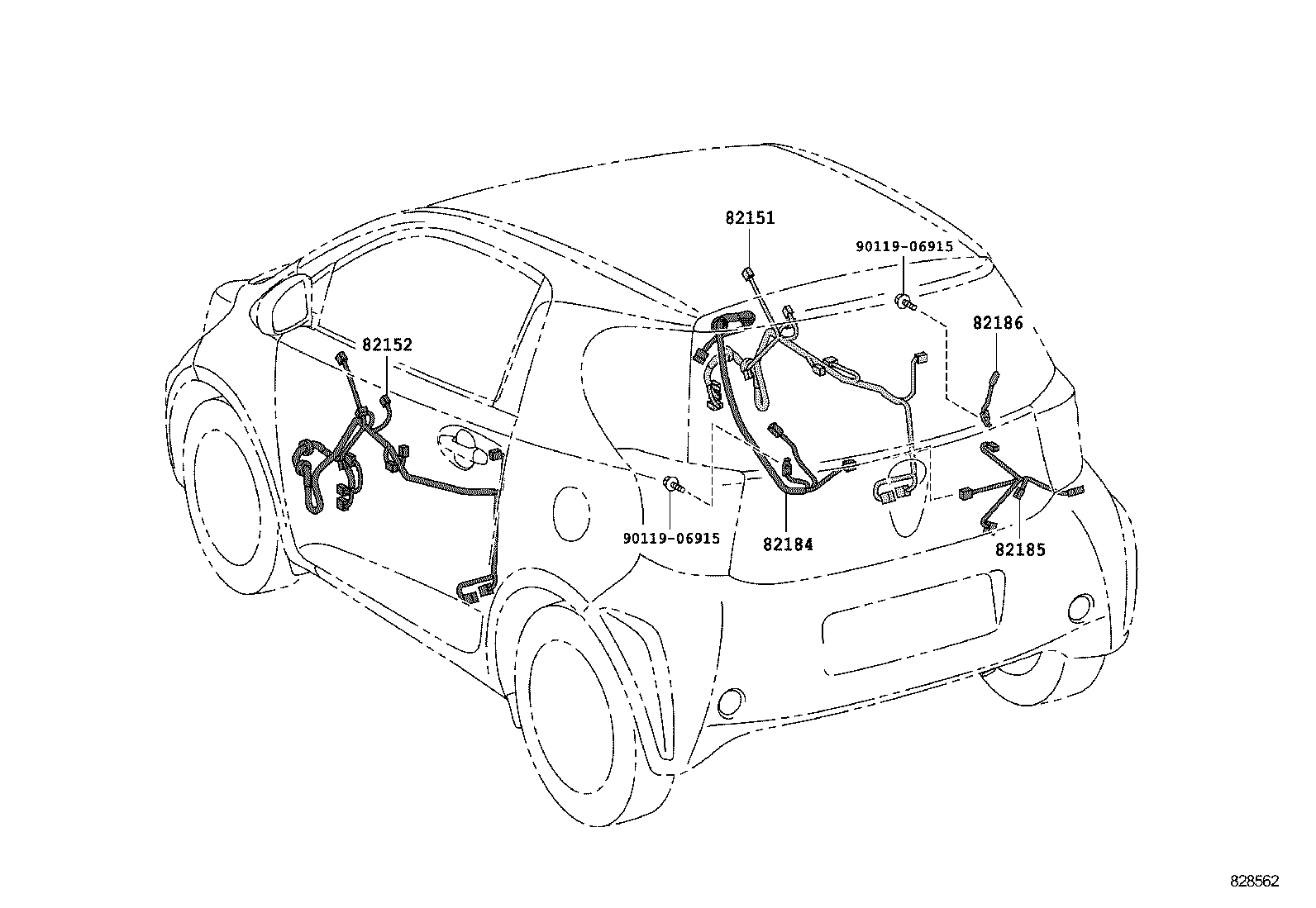

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

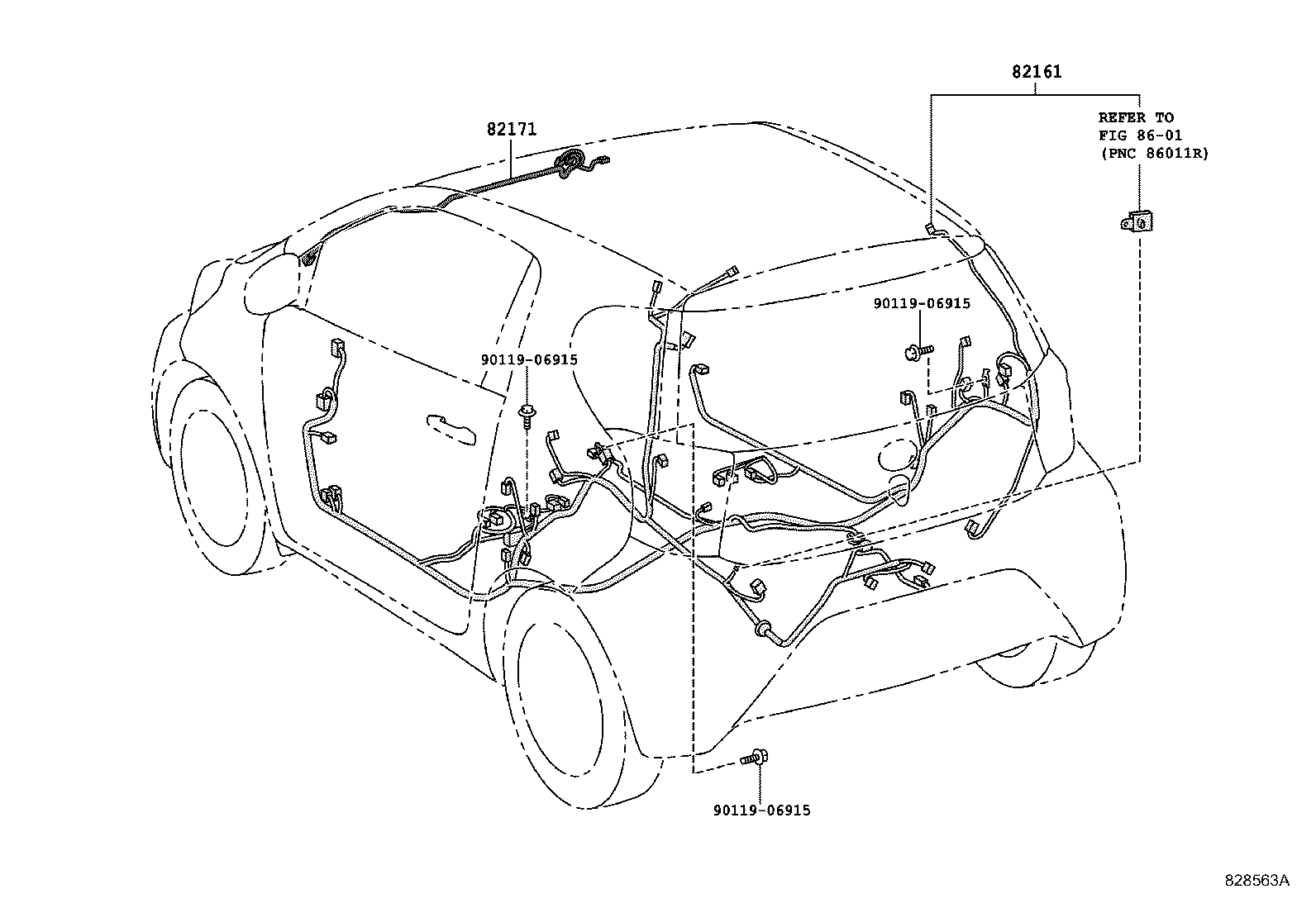

82161 Wire, Floor
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82284 Wire, Earth
82285E Wire, Illumination
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82671 Block, Junction
82815A Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
G92CA Wire, EV Converter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
