Toyota IQ EV

2012-09 → 2012-12 · chassis KPJ10 · catalogue 104510 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

20 part groups · 3 illustrations

Illustrations

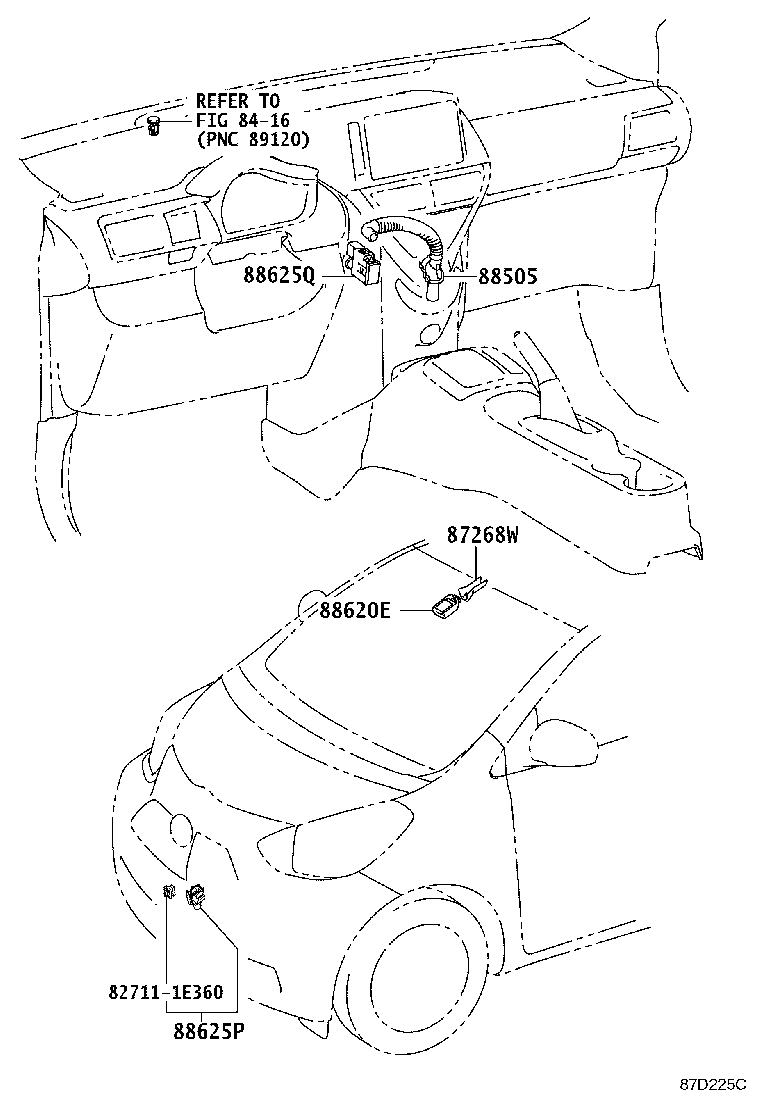

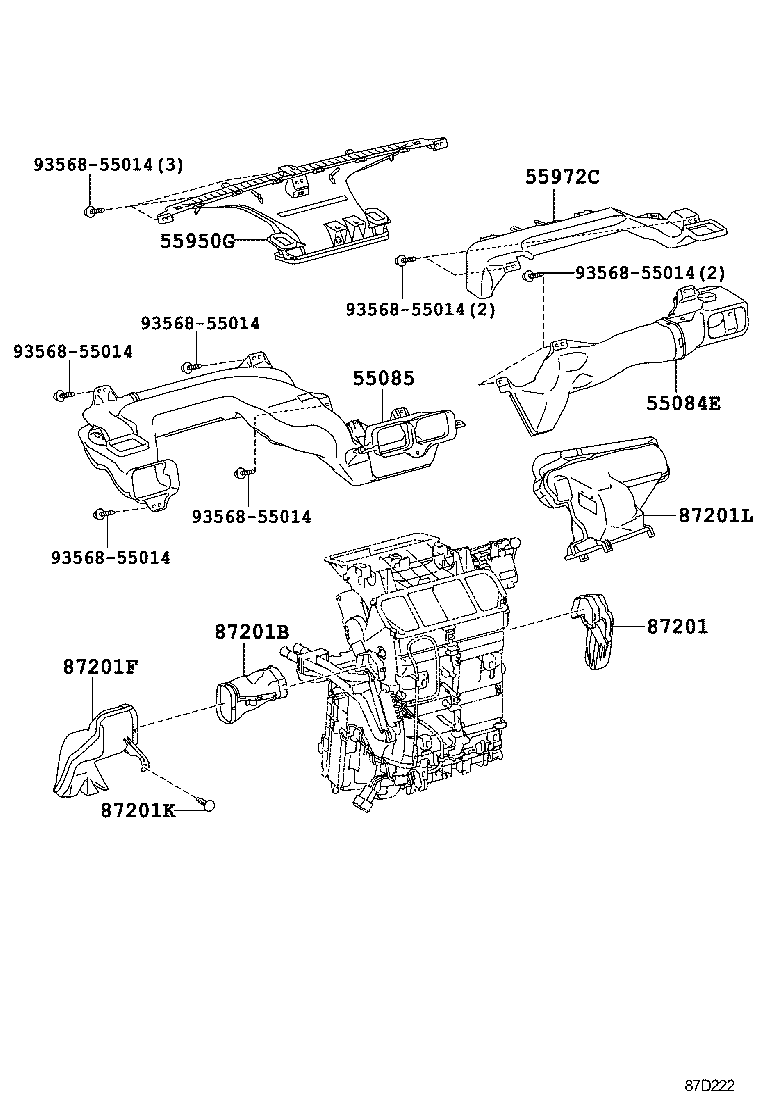

Figure 87D220B 87D220B 2012-09 → — Figure 87D222 87D222 2012-09 → — Figure 87D225C 87D225C 2012-09 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55902C Panel Sub-assy, Air Conditioner
55902D Panel Sub-assy, Air Conditioner
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55935A Circuit, Center Cluster Module
55950G Nozzle Assy, Defroster
55972C Duct, Side Defroster Nozzle, NO.2
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201K Clip (FOR AIR DUCT)
87201L Duct Sub-assy, Air, NO.4
87268W Protector
88505 Duct Sub-assy,Air Conditioner
88620E Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
