Toyota IQ EV

2012-09 → 2012-12 · chassis KPJ10 · catalogue 104510 · Europe

Supported model Data version 2013-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

30 part groups · 3 illustrations

Illustrations

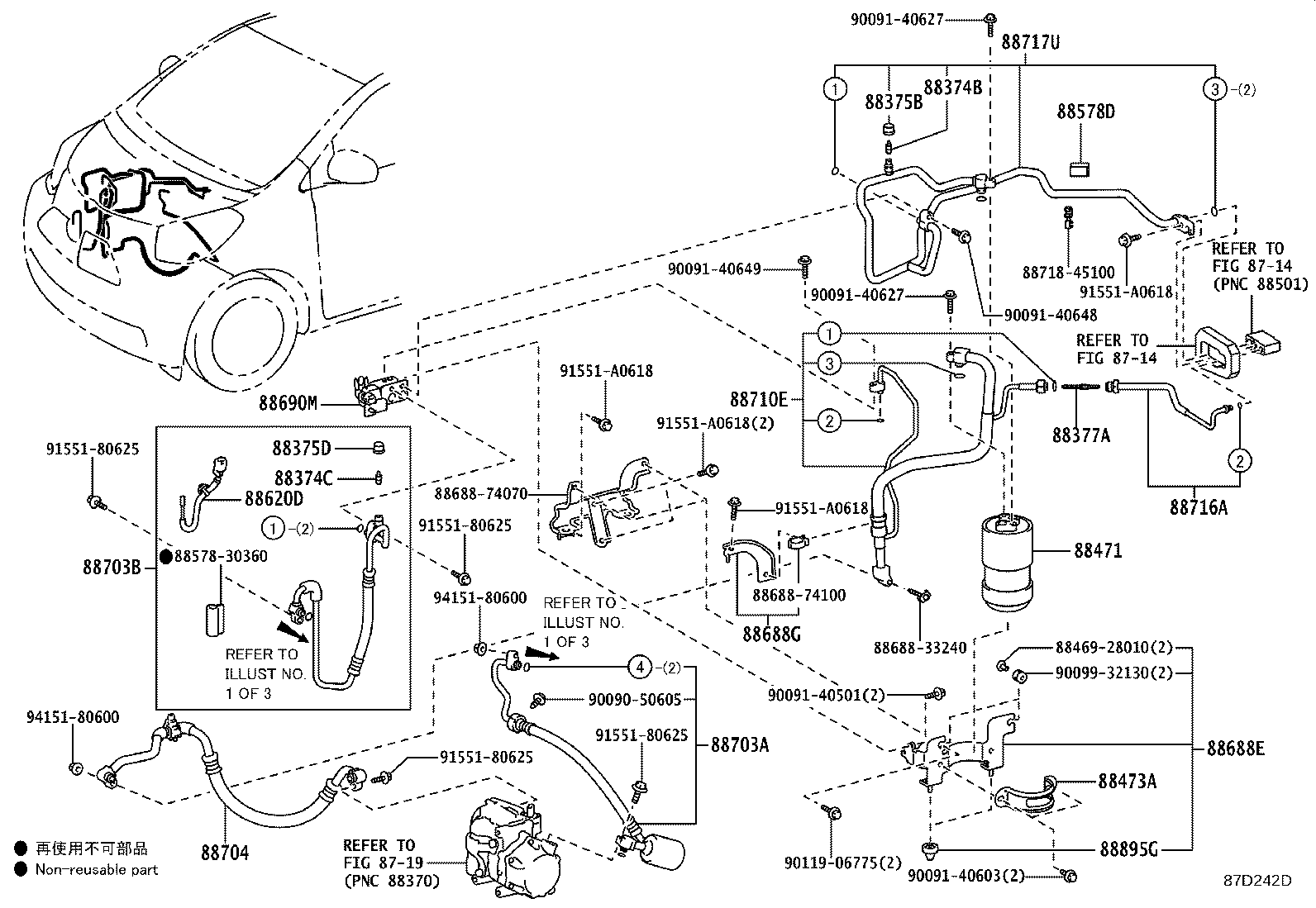

Figure 87D306C 87D306C 2012-09 → — Figure 87D242D 87D242D 2012-09 → — Figure 87D301C 87D301C 2012-09 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88377A Filter, Refrigerant
88377E Filter, Refrigerant, NO.2
88460 Condenser Assy, Cooler
88471 Tank, Receiver Air Conditioner
88473A Holder, Receiver
88578D Packing, Cooler Pipe, NO.1
88578E Packing, Cooler Pipe, NO.2
88603B Valve Sub-assy, Magnet
88620D Thermostat Assy
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688G Bracket, Cooler Refrigerant Pipe
88688Q Bracket (FOR MAGNET VALVE)
88690M Valve Assy, Magnet, NO.1
88690N Valve Assy, Magnet, NO.2
88703A Hose Sub-assy, Discharge, NO.1
88703B Hose Sub-assy, Discharge, NO.2
88704 Hose Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88716A Pipe, Cooler Refrigerant Liquid, A
88717U Tube, Suction, NO.1
88719A Sensor, Air Conditioner Pressure
88720A Hose & Accessory, Air Conditioner
88895G Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
