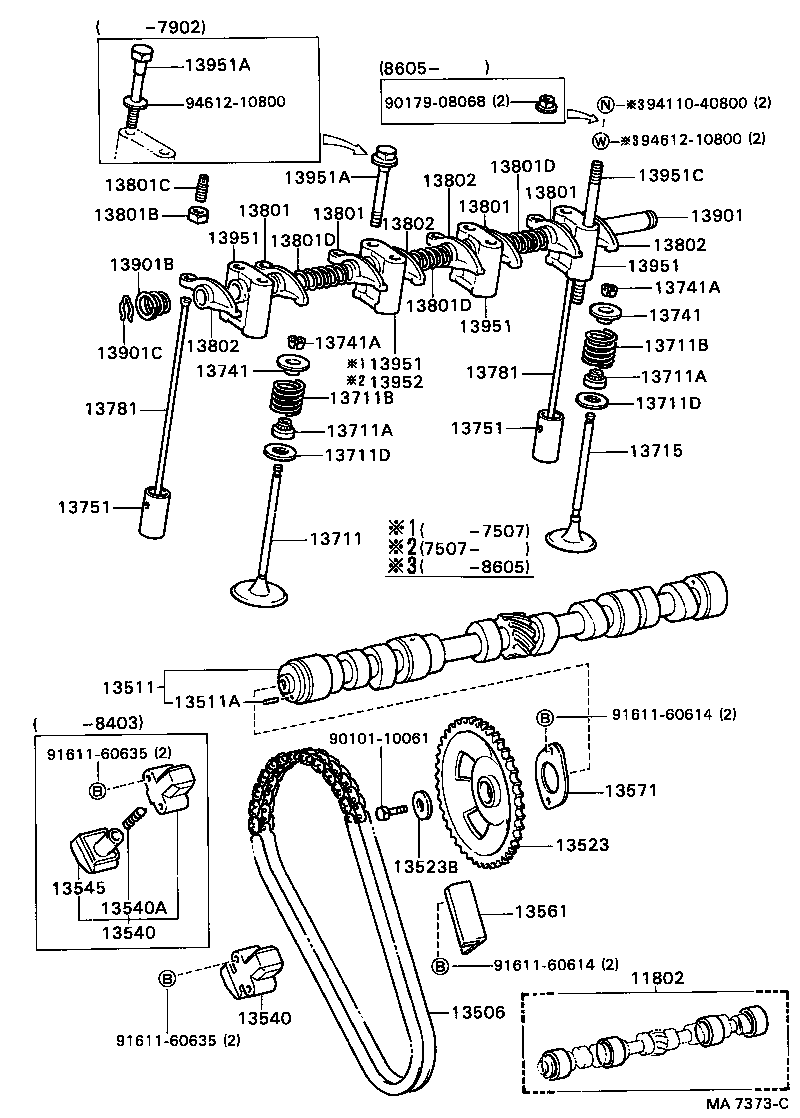

Exploded illustration MA7373C 13951A — BOLT(FOR ROCKER SUPPORT SET) (3 parts) 9017908068 — not listed in this catalogue 9461210800 — not listed in this catalogue 9411040800 — not listed in this catalogue 9461210800 — not listed in this catalogue 13801D — SPRING, COMPRESSION(FOR ROCKER ARM) (4 parts) 13951C — BOLT, STUD(FOR ROCKER SUPPORT) (2 parts) 13951A — BOLT(FOR ROCKER SUPPORT SET) (3 parts) 13802 — ARM SUB-ASSY, VALVE ROCKER, NO.2 (1 parts) 13801C — SCREW, VALVE ADJUSTING (2 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (1 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (1 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (1 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (1 parts) 13801B — NUT, HEXAGON(FOR VALVE ADJUSTING) (3 parts) 13901 — SHAFT SUB-ASSY, VALVE ROCKER, NO.1 (2 parts) 13802 — ARM SUB-ASSY, VALVE ROCKER, NO.2 (1 parts) 13951 — SUPPORT, VALVE ROCKER, NO.1 (4 parts) 13801D — SPRING, COMPRESSION(FOR ROCKER ARM) (4 parts) 13802 — ARM SUB-ASSY, VALVE ROCKER, NO.2 (1 parts) 13901B — SPRING, CONICAL(FOR VALVE ROCKER SHAFT) (1 parts) 13951 — SUPPORT, VALVE ROCKER, NO.1 (4 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13801D — SPRING, COMPRESSION(FOR ROCKER ARM) (4 parts) 13741 — RETAINER, VALVE SPRING (2 parts) 13951 — SUPPORT, VALVE ROCKER, NO.1 (4 parts) 13741A — LOCK, VALVE SPRING RETAINER (1 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (1 parts) 13802 — ARM SUB-ASSY, VALVE ROCKER, NO.2 (1 parts) 13901C — SPRING, RETAINER(FOR VALVE ROCKER SHAFT) (1 parts) 13951 — SUPPORT, VALVE ROCKER, NO.1 (4 parts) 13741 — RETAINER, VALVE SPRING (2 parts) 13781 — ROD, VALVE PUSH (3 parts) 13711A — SEAL OR RING, O(FOR VALVE STEM OIL) (5 parts) 13952 — SUPPORT, VALVE ROCKER, NO.2 (2 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (1 parts) 13711D — WASHER, PLATE(FOR VALVE SPRING SEAT) (2 parts) 13781 — ROD, VALVE PUSH (3 parts) 13751 — LIFTER, VALVE (8 parts) 13711A — SEAL OR RING, O(FOR VALVE STEM OIL) (5 parts) 13715 — VALVE, EXHAUST (4 parts) 13711D — WASHER, PLATE(FOR VALVE SPRING SEAT) (2 parts) 13751 — LIFTER, VALVE (8 parts) 13711 — VALVE, INTAKE (3 parts) 13511 — CAMSHAFT (3 parts) 13511A — PIN, STRAIGHT(FOR CAMSHAFT KNOCK) (1 parts) 9161160614 — not listed in this catalogue 9010110061 — not listed in this catalogue 9161160635 — not listed in this catalogue 13571 — PLATE, CAMSHAFT THRUST (2 parts) 13523 — GEAR OR SPROCKET, CAMSHAFT TIMING (2 parts) 13523B — WASHER, PLATE(FOR TIMING GEAR) (2 parts) 13545 — PLUNGER, CHAIN TENSIONER (2 parts) 13540A — SPRING, COMPRESSION(FOR CHAIN TENSIONER) (3 parts) 13561 — DAMPER, CHAIN VIBRATION, NO.1 (2 parts) 13540 — TENSIONER ASSY, CHAIN, NO.1 (3 parts) 9161160614 — not listed in this catalogue 11802 — BEARING SET, CAMSHAFT (9 parts) 13506 — CHAIN SUB-ASSY (3 parts) 13540 — TENSIONER ASSY, CHAIN, NO.1 (3 parts) 9161160635 — not listed in this catalogue
MA7373C · 52 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
87 parts on this figure
Part number Description Fitment Price
11802 — Bearing Set, Camshaft
11802-13020 note Bearing Set, Camshaft
1982-05 → 1984-11 ended
2K KP36 —
11802-22010 note Bearing Set, Camshaft
1969-04 → 1982-05 ended
2K,3KH KP3# —
11802-22011 note Bearing Set, Camshaft
1984-11 → 1988-08 ended
2K KP36 —
11803-13020 note Bearing Set, Camshaft
1982-05 → 1984-11 ended
2K KP36 —
11803-22010 note Bearing Set, Camshaft
1969-04 → 1982-05 ended
2K,3KH KP3# —
11803-22011 note Bearing Set, Camshaft
1984-11 → 1988-08 ended
2K KP36 —
11804-13020 note Bearing Set, Camshaft
1982-05 → 1984-11 ended
2K KP36 —
11804-22010 note Bearing Set, Camshaft
1969-04 → 1982-05 ended
2K,3KH KP3# —
11804-22011 note Bearing Set, Camshaft
1984-11 → 1988-08 ended
2K KP36 —
13506 — Chain Sub-assy
13506-13020 Chain Sub-assy
1982-08 → 1984-01 ended
2K KP36 —
13506-13021 Chain Sub-assy
1984-01 → 1988-08 ended
2K KP36 —
13506-22010 Chain Sub-assy
1969-04 → 1982-08 ended
2K,3KH KP3# —
13511 — Camshaft
13501-13010 Camshaft
1977-05 → 1986-12 ended
2K,3KH KP3# —
13501-13011 Camshaft
1986-12 → 1988-08 ended
2K KP36 —
13501-22010 Camshaft
1969-04 → 1977-05 ended
2K KP3# —
13511A — Pin, Straight(FOR CAMSHAFT KNOCK)
90250-05121 note Pin, Straight(FOR CAMSHAFT KNOCK)
1969-04 → 1988-08 ended
2K,3KH KP3# —
13523 — Gear OR Sprocket, Camshaft Timing
13523-13030 note Gear OR Sprocket, Camshaft Timing
1982-08 → 1988-08 ended
2K KP36 —
13523-22010 note Gear OR Sprocket, Camshaft Timing
1969-04 → 1982-08 ended
2K,3KH KP3# —
13523B — Washer, Plate(FOR TIMING GEAR)
90201-10203 Washer, Plate(FOR TIMING GEAR)
1972-01 → 1972-06 ended
2K KP3# —
90201-10489 Washer, Plate(FOR TIMING GEAR)
1972-06 → 1988-08 ended
2K,3KH KP3# —
13540 — Tensioner Assy, Chain, NO.1
13540-13010 Tensioner Assy, Chain, NO.1
1982-08 → 1984-03 ended
2K KP36 —
13540-13011 Tensioner Assy, Chain, NO.1
1984-03 → 1988-08 ended
2K KP36 —
13540-22012 Tensioner Assy, Chain, NO.1
1969-04 → 1982-08 ended
2K,3KH KP3# —
13540A — Spring, Compression(FOR CHAIN TENSIONER)
90501-09593 Spring, Compression(FOR CHAIN TENSIONER)
1982-08 → 1984-03 ended
2K KP36 —
90501-10595 Spring, Compression(FOR CHAIN TENSIONER)
1981-08 → 1982-08 ended
2K KP36 —
90501-10595 Spring, Compression(FOR CHAIN TENSIONER)
1969-04 → 1981-08 ended
2K,3KH KP3# —
13545 — Plunger, Chain Tensioner
13545-13010 Plunger, Chain Tensioner
1982-08 → 1984-03 ended
2K KP36 —
13545-22010 Plunger, Chain Tensioner
1969-04 → 1982-08 ended
2K,3KH KP3# —
13561 — Damper, Chain Vibration, NO.1
13561-13020 Damper, Chain Vibration, NO.1
1982-08 → 1988-08 ended
2K KP36 —
13561-22010 Damper, Chain Vibration, NO.1
1969-04 → 1982-08 ended
2K,3KH KP3# —
13571 — Plate, Camshaft Thrust
13571-13010 Plate, Camshaft Thrust
1977-05 → 1988-08 ended
2K,3KH KP3# —
13571-22010 Plate, Camshaft Thrust
1969-04 → 1977-05 ended
2K KP3# —
13711 — Valve, Intake
13711-22010 Valve, Intake
1969-04 → 1974-10 ended
2K KP3# —
13711-22011 Valve, Intake
1974-10 → 1988-08 ended
2K KP30,36 —
13711-24011 Valve, Intake
1977-07 → 1981-08 ended
3KH KP37 —
13711A — Seal OR Ring, O(FOR VALVE STEM OIL)
90301-06096 note Seal OR Ring, O(FOR VALVE STEM OIL)
1969-04 → 1974-10 ended
2K KP3# —
90913-02023 note Seal OR Ring, O(FOR VALVE STEM OIL)
1977-04 → 1981-02 ended
2K,3KH KP3# —
90913-02024 note Seal OR Ring, O(FOR VALVE STEM OIL)
1974-10 → 1977-04 ended
2K KP3# —
90913-02056 note Seal OR Ring, O(FOR VALVE STEM OIL)
1981-02 → 1981-11 ended
2K,3KH KP3# —
90913-02057 note Seal OR Ring, O(FOR VALVE STEM OIL)
1981-11 → 1988-08 ended
2K KP36 —
13711B — Spring, Compression(FOR INNER)
90501-42293 note Spring, Compression(FOR INNER)
1969-04 → 1988-08 ended
2K,3KH KP3# —
13711D — Washer, Plate(FOR VALVE SPRING SEAT)
90201-15247 Washer, Plate(FOR VALVE SPRING SEAT)
1969-04 → 1975-10 ended
2K KP3# —
90201-16002 Washer, Plate(FOR VALVE SPRING SEAT)
1975-10 → 1988-08 ended
2K,3KH KP3# —
13715 — Valve, Exhaust
13715-22010 Valve, Exhaust
1969-04 → 1974-10 ended
2K KP3# —
13715-22011 Valve, Exhaust
1974-10 → 1982-05 ended
2K KP30,36 —
13715-22012 Valve, Exhaust
1982-05 → 1988-08 ended
2K KP36 —
13715-24012 Valve, Exhaust
1977-07 → 1981-08 ended
3KH KP37 —
13741 — Retainer, Valve Spring
13741-22011 Retainer, Valve Spring
1969-04 → 1974-10 ended
2K KP3# —
13741-24020 Retainer, Valve Spring
1974-10 → 1988-08 ended
2K,3KH KP3# —
13741A — Lock, Valve Spring Retainer
90913-03005 Lock, Valve Spring Retainer
1969-04 → 1988-08 ended
2K,3KH KP3# —
13751 — Lifter, Valve
13751-22011 note Lifter, Valve
1969-04 → 1974-07 ended
2K KP3# —
13751-22012 note Lifter, Valve
1974-07 → 1976-06 ended
2K KP3# —
13751-22013 note Lifter, Valve
1976-06 → 1982-03 ended
2K,3KH KP3# —
13751-22014 note Lifter, Valve
1982-03 → 1988-08 ended
2K KP36 —
13755-22011 note Lifter, Valve
1969-04 → 1974-07 ended
2K KP3# —
13755-22012 note Lifter, Valve
1974-07 → 1976-06 ended
2K KP3# —
13755-22013 note Lifter, Valve
1976-06 → 1982-03 ended
2K,3KH KP3# —
13755-22014 note Lifter, Valve
1982-03 → 1988-08 ended
2K KP36 —
13781 — Rod, Valve Push
13781-22010 Rod, Valve Push
1969-04 → 1974-07 ended
2K KP3# —
13781-22020 Rod, Valve Push
1974-07 → 1988-08 ended
2K KP30,36 —
13781-24021 Rod, Valve Push
1977-07 → 1981-08 ended
3KH KP37 —
13801 — Arm Sub-assy, Valve Rocker, NO.1
13811-22011 Arm Sub-assy, Valve Rocker, NO.1
1969-04 → 1988-08 ended
2K,3KH KP3# —
13801B — Nut, Hexagon(FOR VALVE ADJUSTING)
90170-08005 Nut, Hexagon(FOR VALVE ADJUSTING)
1979-02 → 1988-08 ended
2K,3KH KP3# —
90170-08094 Nut, Hexagon(FOR VALVE ADJUSTING)
1969-08 → 1979-02 ended
2K,3KH KP3# —
90170-08152 Nut, Hexagon(FOR VALVE ADJUSTING)
1969-04 → 1969-08 ended
2K KP3# —
13801C — Screw, Valve Adjusting
90913-05013 Screw, Valve Adjusting
1969-04 → 1982-02 ended
2K,3KH KP3# —
90913-05020 Screw, Valve Adjusting
1982-02 → 1988-08 ended
2K KP36 —
13801D — Spring, Compression(FOR ROCKER ARM)
90501-11008 Spring, Compression(FOR ROCKER ARM)
1979-02 → 1982-08 ended
2K,3KH KP3# —
90501-12008 Spring, Compression(FOR ROCKER ARM)
1976-02 → 1979-02 ended
2K,3KH KP3# —
90501-14064 Spring, Compression(FOR ROCKER ARM)
1982-08 → 1988-08 ended
2K KP36 —
90501-14292 Spring, Compression(FOR ROCKER ARM)
1969-04 → 1976-02 ended
2K KP3# —
13802 — Arm Sub-assy, Valve Rocker, NO.2
13812-22011 Arm Sub-assy, Valve Rocker, NO.2
1969-04 → 1988-08 ended
2K,3KH KP3# —
13901 — Shaft Sub-assy, Valve Rocker, NO.1
13901-22010 Shaft Sub-assy, Valve Rocker, NO.1
1969-04 → 1979-02 ended
2K,3KH KP3# —
13901-22011 Shaft Sub-assy, Valve Rocker, NO.1
1979-02 → 1988-08 ended
2K,3KH KP3# —
13901B — Spring, Conical(FOR VALVE ROCKER SHAFT)
90502-14022 Spring, Conical(FOR VALVE ROCKER SHAFT)
1969-04 → 1988-08 ended
2K,3KH KP3# —
13901C — Spring, Retainer(FOR VALVE ROCKER SHAFT)
90524-13009 Spring, Retainer(FOR VALVE ROCKER SHAFT)
1969-04 → 1988-08 ended
2K,3KH KP3# —
13951 — Support, Valve Rocker, NO.1
13951-22010 Support, Valve Rocker, NO.1
1969-04 → 1975-07 ended
2K KP3# —
13951-24010 Support, Valve Rocker, NO.1
1975-07 → 1979-02 ended
2K,3KH KP3# —
13951-24012 Support, Valve Rocker, NO.1
1979-02 → 1985-05 ended
2K,3KH KP3# —
13952-24012 Support, Valve Rocker, NO.1
1985-05 → 1988-08 ended
2K KP36 —
13951A — Bolt(FOR ROCKER SUPPORT SET)
90105-08028 Bolt(FOR ROCKER SUPPORT SET)
1979-02 → 1988-08 ended
2K,3KH KP3# —
90910-01005 Bolt(FOR ROCKER SUPPORT SET)
1969-04 → 1975-07 ended
2K KP3# —
90910-01011 Bolt(FOR ROCKER SUPPORT SET)
1975-07 → 1979-02 ended
2K,3KH KP3# —
13951C — Bolt, Stud(FOR ROCKER SUPPORT)
90116-08082 note Bolt, Stud(FOR ROCKER SUPPORT)
1979-03 → 1988-08 ended
2K,3KH KP3# —
90116-08127 note Bolt, Stud(FOR ROCKER SUPPORT)
1969-04 → 1979-03 ended
2K,3KH KP3# —
13952 — Support, Valve Rocker, NO.2
13952-24010 Support, Valve Rocker, NO.2
1975-07 → 1979-02 ended
2K,3KH KP3# —
13952-24012 Support, Valve Rocker, NO.2
1979-02 → 1988-08 ended
2K,3KH KP3# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
