Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

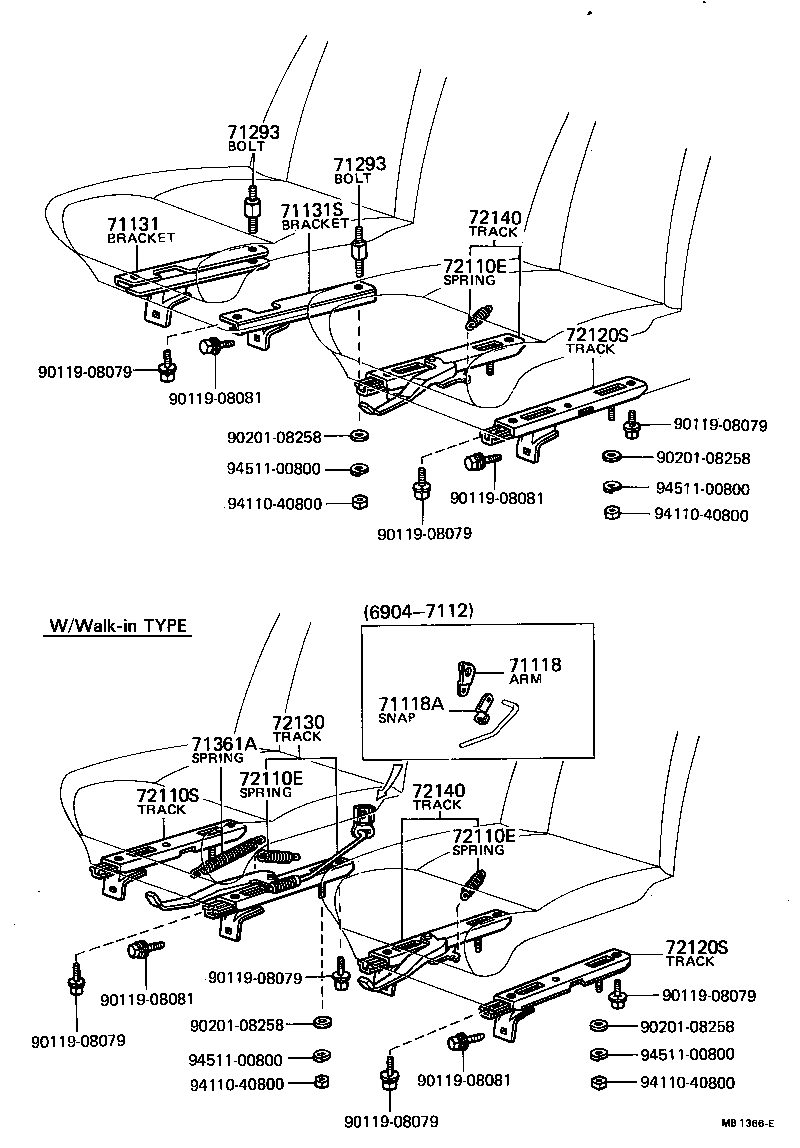

Exploded illustration MB1366E 71293 — BOLT, FRONT SEAT SET (1 parts) 71293 — BOLT, FRONT SEAT SET (1 parts) 71131S — BRACKET, FRONT SEAT SET, INNER RH (1 parts) 72140 — TRACK ASSY, LH SEAT, INNER (10 parts) 71131 — BRACKET, FRONT SEAT SET, OUTER RH (1 parts) 72110E — SPRING, TENSION, NO.1 (FOR SEAT TRACK) (1 parts) 72120S — TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) (4 parts) 9011908079 — not listed in this catalogue 9011908081 — not listed in this catalogue 9011908079 — not listed in this catalogue 9020108258 — not listed in this catalogue 9020108258 — not listed in this catalogue 9451100800 — not listed in this catalogue 9451100800 — not listed in this catalogue 9011908081 — not listed in this catalogue 9411040800 — not listed in this catalogue 9411040800 — not listed in this catalogue 9011908079 — not listed in this catalogue 71118 — ARM, FRONT SEAT CONTROL (1 parts) 71118A — SNAP, FRONT SEAT CONTROL ARM (1 parts) 72130 — TRACK ASSY, RH SEAT, INNER (5 parts) 71361A — SPRING, TENSION (FOR SEAT TRACK) (3 parts) 72110E — SPRING, TENSION, NO.1 (FOR SEAT TRACK) (1 parts) 72140 — TRACK ASSY, LH SEAT, INNER (10 parts) 72110S — TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) (7 parts) 72110E — SPRING, TENSION, NO.1 (FOR SEAT TRACK) (1 parts) 72120S — TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) (4 parts) 9011908079 — not listed in this catalogue 9011908079 — not listed in this catalogue 9011908081 — not listed in this catalogue 9020108258 — not listed in this catalogue 9020108258 — not listed in this catalogue 9011908079 — not listed in this catalogue 9451100800 — not listed in this catalogue 9451100800 — not listed in this catalogue 9011908081 — not listed in this catalogue 9411040800 — not listed in this catalogue 9411040800 — not listed in this catalogue 9011908079 — not listed in this catalogue
MB1366E · 16 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
35 parts on this figure
Part number Description Fitment Price
71118 — Arm, Front Seat Control
71118-10090 Arm, Front Seat Control
1969-04 → 1971-12 ended
KP3# SED,V —
71118A — Snap, Front Seat Control Arm
69768-13010 Snap, Front Seat Control Arm
1969-04 → 1971-12 ended
KP3# SED,V —
71131 — Bracket, Front Seat Set, Outer RH
71250-10020 Bracket, Front Seat Set, Outer RH
1969-04 → 1988-08 ended
KP30,36 LHD —
71131S — Bracket, Front Seat Set, Inner RH
71270-10010 Bracket, Front Seat Set, Inner RH
1969-04 → 1988-08 ended
KP30,36 LHD —
71293 — Bolt, Front Seat Set
71293-10010 Bolt, Front Seat Set
1969-04 → 1988-08 ended
KP3# —
71361A — Spring, Tension (FOR SEAT TRACK)
90506-18231 Spring, Tension (FOR SEAT TRACK)
1969-04 → 1971-12 ended
KP3# SED,V —
90506-18231 Spring, Tension (FOR SEAT TRACK)
1972-01 → 1978-09 ended
KP30,36 (SED,V) LHD —
90506-18377 Spring, Tension (FOR SEAT TRACK)
1972-01 → 1978-09 ended
KP30,36 (SED,V) RHD —
72110E — Spring, Tension, NO.1 (FOR SEAT TRACK)
90506-16143 Spring, Tension, NO.1 (FOR SEAT TRACK)
1969-04 → 1988-08 ended
KP3# —
72110S — Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72110-10030 Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1969-04 → 1973-10 ended
KP3# (SED,V) RHD —
72110-10031 Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1973-10 → 1978-09 ended
KP30,36 (SED,V) RHD —
72110-10040 note Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1973-10 → 1978-09 ended
KP30,36 (SED,V) RHD —
72110-11010 Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1969-11 → 1971-12 ended
KP36 PIC RHD —
72110-96400 Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1972-01 → 1973-10 ended
KP36 PIC RHD —
72110-96401 Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1973-10 → 1988-08 ended
KP36,37 PIC RHD —
72120-10040 note Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
1969-04 → 1978-09 ended
KP30,36 (SED,V) LHD —
72120S — Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72120-10040 note Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1969-04 → 1971-12 ended
KP3# (SED,V) RHD —
72120-10040 Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1969-04 → 1988-08 ended
KP30,36 LHD —
72120-10050 note Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1972-01 → 1978-09 ended
KP30,36 (SED,V) RHD —
72120-10070 note Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
1973-10 → 1978-09 ended
KP30,36 (SED,V) RHD —
72130 — Track Assy, RH Seat, Inner
72130-10020 Track Assy, RH Seat, Inner
1969-04 → 1988-08 ended
KP3# RHD —
72130-10030 note Track Assy, RH Seat, Inner
1969-04 → 1970-10 ended
KP3# (SED,V) LHD —
72130-10031 note Track Assy, RH Seat, Inner
1970-10 → 1973-10 ended
KP3# (SED,V) LHD —
72130-10032 note Track Assy, RH Seat, Inner
1973-10 → 1978-09 ended
KP30,36 (SED,V) LHD —
72130-10040 note Track Assy, RH Seat, Inner
1973-10 → 1978-09 ended
KP30,36 (SED,V) RHD —
72140 — Track Assy, LH Seat, Inner
72140-10010 note Track Assy, LH Seat, Inner
1969-04 → 1970-10 ended
KP3# (SED,V) RHD —
72140-10011 note Track Assy, LH Seat, Inner
1970-10 → 1971-12 ended
KP3# (SED,V) RHD —
72140-10012 note Track Assy, LH Seat, Inner
1972-01 → 1973-10 ended
KP3# (SED,V) RHD —
72140-10013 note Track Assy, LH Seat, Inner
1973-10 → 1978-09 ended
KP30,36 (SED,V) RHD —
72140-10020 Track Assy, LH Seat, Inner
1969-04 → 1973-10 ended
KP3# (SED,V) LHD —
72140-10021 Track Assy, LH Seat, Inner
1973-10 → 1978-09 ended
KP30,36 (SED,V) LHD —
72140-10050 note Track Assy, LH Seat, Inner
1973-10 → 1978-09 ended
KP30,36 (SED,V) RHD —
72140-11010 Track Assy, LH Seat, Inner
1969-11 → 1971-12 ended
KP36 PIC LHD —
72140-96400 Track Assy, LH Seat, Inner
1972-01 → 1973-10 ended
KP36 PIC LHD —
72140-96401 Track Assy, LH Seat, Inner
1973-10 → 1988-08 ended
KP36 PIC LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
