Toyota TOYOTA1000
1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe
Discontinued model
Data version 1988-08

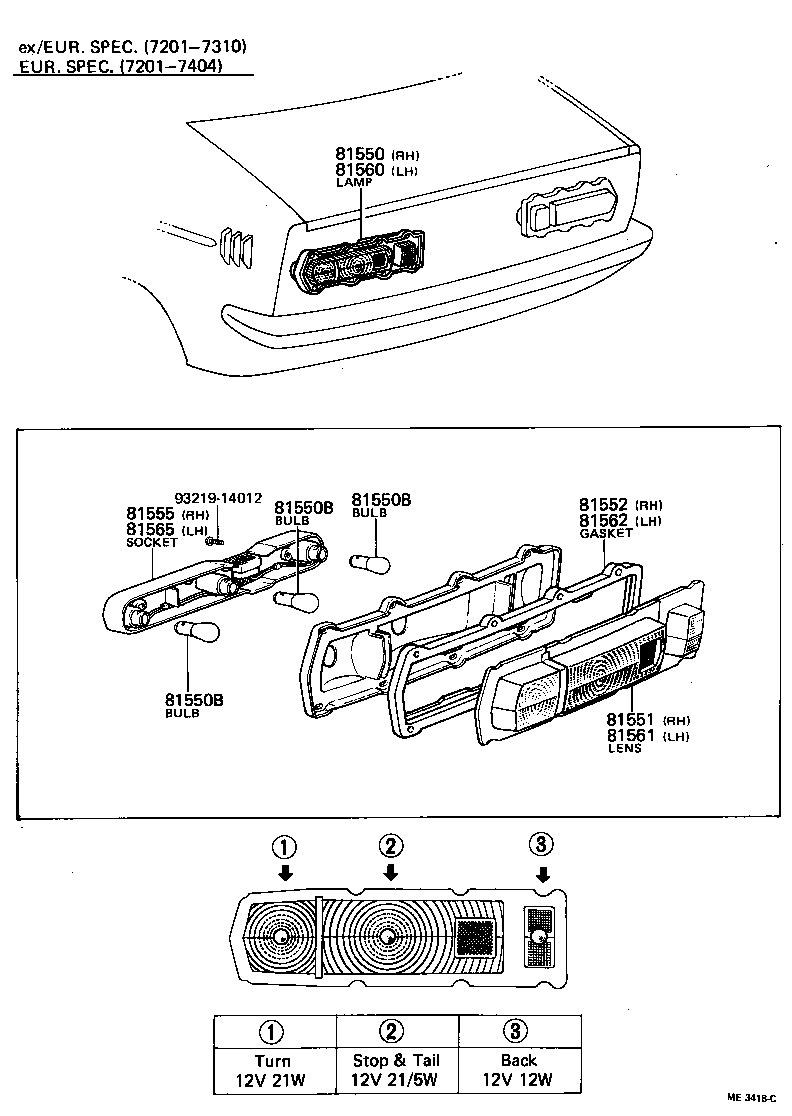

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81550 — Lamp Assy, Rear Combination, RH | ||||
| 81550-10062 note |
Lamp Assy, Rear Combination, RH
1972-01 → 1973-10
ended
|
KP30 | — | |
| 81550-10063 note |
Lamp Assy, Rear Combination, RH
1973-10 → 1975-11
ended
|
KP30 | — | |
| 81550-10064 note |
Lamp Assy, Rear Combination, RH
1975-11 → 1978-02
ended
|
KP30 | — | |
| 81550-10130 note |
Lamp Assy, Rear Combination, RH
1973-10 → 1974-04
ended
|
KP30 LHD | — | |
| 81550-11062 note |
Lamp Assy, Rear Combination, RH
1973-10 → 1978-09
ended
|
KP36 V | — | |
| 81550-19135 note |
Lamp Assy, Rear Combination, RH
1969-04 → 1970-10
ended
|
KP30 | — | |
| 81550-19136 note |
Lamp Assy, Rear Combination, RH
1970-10 → 1971-12
ended
|
KP30 | — | |
| 81550-19145 note |
Lamp Assy, Rear Combination, RH
1969-04 → 1970-10
ended
|
KP30 | — | |
| 81550-19146 note |
Lamp Assy, Rear Combination, RH
1970-10 → 1971-12
ended
|
KP30 | — | |
| 81550-19165 note |
Lamp Assy, Rear Combination, RH
1969-04 → 1971-12
ended
|
KP36 V | — | |
| 81550-19176 note |
Lamp Assy, Rear Combination, RH
1975-11 → 1988-08
ended
|
KP36,37 PIC | — | |
| 81550-19185 note |
Lamp Assy, Rear Combination, RH
1969-11 → 1973-10
ended
|
KP36 PIC | — | |
| 81550-19186 note |
Lamp Assy, Rear Combination, RH
1973-10 → 1975-11
ended
|
KP36 PIC | — | |
| 81550-19545 note |
Lamp Assy, Rear Combination, RH
1970-10 → 1971-12
ended
|
KP30 LHD | — | |
| 81550-19565 note |
Lamp Assy, Rear Combination, RH
1972-01 → 1973-10
ended
|
KP36 V | — | |
| 81550B — Bulb(FOR REAR COMBINATION LAMP) | ||||
| 90981-12002 note |
Bulb(FOR REAR COMBINATION LAMP)
1969-11 → 1973-06
ended
|
KP30 | — | |
| 99132-11100 note |
Bulb(FOR REAR COMBINATION LAMP)
1969-11 → 1988-08
ended
|
KP36,37 PIC | — | |
| 99132-11120 note |
Bulb(FOR REAR COMBINATION LAMP)
1973-06 → 1973-10
ended
|
KP30 | — | |
| 99132-11120 note |
Bulb(FOR REAR COMBINATION LAMP)
1973-10 → 1974-04
ended
|
KP30 LHD | — | |
| 99132-11210 note |
Bulb(FOR REAR COMBINATION LAMP)
1972-01 → 1978-09
ended
|
KP30,36 SED,V | — | |
| 99132-11210 note |
Bulb(FOR REAR COMBINATION LAMP)
1972-01 → 1975-11
ended
|
KP36 PIC | — | |
| 99132-11230 note |
Bulb(FOR REAR COMBINATION LAMP)
1975-11 → 1988-08
ended
|
KP36,37 PIC | — | |
| 99132-11230 note |
Bulb(FOR REAR COMBINATION LAMP)
1969-04 → 1971-12
ended
|
KP3# | — | |
| 99132-21210 note |
Bulb(FOR REAR COMBINATION LAMP)
1972-01 → 1988-08
ended
|
KP3# | — | |
| 99132-21230 note |
Bulb(FOR REAR COMBINATION LAMP)
1969-04 → 1971-12
ended
|
KP3# PIC,SED | — | |
| 81551 — Lens, Rear Combination Lamp, RH | ||||
| 81551-10050 note |
Lens, Rear Combination Lamp, RH
1969-04 → 1970-10
ended
|
KP30 | — | |
| 81551-10051 note |
Lens, Rear Combination Lamp, RH
1970-10 → 1971-12
ended
|
KP30 | — | |
| 81551-10052 note |
Lens, Rear Combination Lamp, RH
1972-01 → 1973-10
ended
|
KP30 | — | |
| 81551-10053 note |
Lens, Rear Combination Lamp, RH
1973-10 → 1975-11
ended
|
KP30 | — | |
| 81551-10054 note |
Lens, Rear Combination Lamp, RH
1975-11 → 1978-02
ended
|
KP30 | — | |
| 81551-10070 note |
Lens, Rear Combination Lamp, RH
1969-04 → 1970-10
ended
|
KP30 | — | |
| 81551-10071 note |
Lens, Rear Combination Lamp, RH
1970-10 → 1971-12
ended
|
KP30 | — | |
| 81551-10090 note |
Lens, Rear Combination Lamp, RH
1970-10 → 1971-12
ended
|
KP30 LHD | — | |
| 81551-10130 note |
Lens, Rear Combination Lamp, RH
1973-10 → 1974-04
ended
|
KP30 LHD | — | |
| 81551-11050 note |
Lens, Rear Combination Lamp, RH
1969-04 → 1971-12
ended
|
KP36 V | — | |
| 81551-11051 note |
Lens, Rear Combination Lamp, RH
1972-01 → 1978-09
ended
|
KP36 V | — | |
| 81551-11070 note |
Lens, Rear Combination Lamp, RH
1969-11 → 1973-10
ended
|
KP36 PIC | — | |
| 81551-11071 note |
Lens, Rear Combination Lamp, RH
1973-10 → 1988-08
ended
|
KP36,37 PIC | — | |
| 81559-11070 note |
Lens, Rear Combination Lamp, RH
1969-11 → 1988-08
ended
|
KP36,37 PIC | — | |
| 81552 — Gasket, Rear Combination Lamp Lens, RH | ||||
| 81552-10050 |
Gasket, Rear Combination Lamp Lens, RH
1969-04 → 1971-12
ended
|
KP30 | — | |
| 81552-10051 |
Gasket, Rear Combination Lamp Lens, RH
1972-01 → 1973-10
ended
|
KP30 | — | |
| 81552-10051 note |
Gasket, Rear Combination Lamp Lens, RH
1973-10 → 1974-04
ended
|
KP30 LHD | — | |
| 81552-11050 |
Gasket, Rear Combination Lamp Lens, RH
1969-04 → 1978-09
ended
|
KP36 V | — | |
| 81554-10051 |
Gasket, Rear Combination Lamp Lens, RH
1973-10 → 1978-02
ended
|
KP30 | — | |
| 81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH | ||||
| 81555-10060 note |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1969-04 → 1971-12
ended
|
KP30 | — | |
| 81555-10061 note |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1973-10 → 1974-04
ended
|
KP30 LHD | — | |
| 81555-10061 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1972-01 → 1973-10
ended
|
KP30 | — | |
| 81555-10062 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1973-10 → 1978-02
ended
|
KP30 | — | |
| 81555-10070 note |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1969-04 → 1971-12
ended
|
KP30 | — | |
| 81555-10090 note |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1970-10 → 1971-12
ended
|
KP30 LHD | — | |
| 81555-11052 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1973-10 → 1978-09
ended
|
KP36 V | — | |
| 81555-11061 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1972-01 → 1973-10
ended
|
KP36 V | — | |
| 81560 — Lamp Assy, Rear Combination, LH | ||||
| 81560-10042 note |
Lamp Assy, Rear Combination, LH
1972-01 → 1973-10
ended
|
KP30 | — | |
| 81560-10043 note |
Lamp Assy, Rear Combination, LH
1973-10 → 1975-11
ended
|
KP30 | — | |
| 81560-10044 note |
Lamp Assy, Rear Combination, LH
1975-11 → 1978-02
ended
|
KP30 | — | |
| 81560-10110 note |
Lamp Assy, Rear Combination, LH
1973-10 → 1974-04
ended
|
KP30 LHD | — | |
| 81560-11042 note |
Lamp Assy, Rear Combination, LH
1973-10 → 1978-09
ended
|
KP36 V | — | |
| 81560-19125 note |
Lamp Assy, Rear Combination, LH
1969-04 → 1970-10
ended
|
KP30 | — | |
| 81560-19126 note |
Lamp Assy, Rear Combination, LH
1970-10 → 1971-12
ended
|
KP30 | — | |
| 81560-19135 note |
Lamp Assy, Rear Combination, LH
1969-04 → 1970-10
ended
|
KP30 | — | |
| 81560-19136 note |
Lamp Assy, Rear Combination, LH
1970-10 → 1971-12
ended
|
KP30 | — | |
| 81560-19155 note |
Lamp Assy, Rear Combination, LH
1969-04 → 1971-12
ended
|
KP36 V | — | |
| 81560-19166 note |
Lamp Assy, Rear Combination, LH
1975-11 → 1988-08
ended
|
KP36,37 PIC | — | |
| 81560-19175 note |
Lamp Assy, Rear Combination, LH
1969-11 → 1973-10
ended
|
KP36 PIC | — | |
| 81560-19176 note |
Lamp Assy, Rear Combination, LH
1973-10 → 1975-11
ended
|
KP36 PIC | — | |
| 81560-19525 note |
Lamp Assy, Rear Combination, LH
1970-10 → 1971-12
ended
|
KP30 LHD | — | |
| 81560-19545 note |
Lamp Assy, Rear Combination, LH
1972-01 → 1973-10
ended
|
KP36 V | — | |
| 81561 — Lens, Rear Combination Lamp, LH | ||||
| 81551-11070 note |
Lens, Rear Combination Lamp, LH
1969-11 → 1973-10
ended
|
KP36 PIC | — | |
| 81551-11071 note |
Lens, Rear Combination Lamp, LH
1973-10 → 1988-08
ended
|
KP36,37 PIC | — | |
| 81559-11070 note |
Lens, Rear Combination Lamp, LH
1977-07 → 1988-08
ended
|
KP36,37 PIC | — | |
| 81559-11070 note |
Lens, Rear Combination Lamp, LH
1969-11 → 1977-07
ended
|
KP36 PIC | — | |
| 81561-10030 note |
Lens, Rear Combination Lamp, LH
1969-04 → 1970-10
ended
|
KP30 | — | |
| 81561-10031 note |
Lens, Rear Combination Lamp, LH
1970-10 → 1971-12
ended
|
KP30 | — | |
| 81561-10032 note |
Lens, Rear Combination Lamp, LH
1972-01 → 1973-10
ended
|
KP30 | — | |
| 81561-10033 note |
Lens, Rear Combination Lamp, LH
1973-10 → 1975-11
ended
|
KP30 | — | |
| 81561-10034 note |
Lens, Rear Combination Lamp, LH
1975-11 → 1978-02
ended
|
KP30 | — | |
| 81561-10050 note |
Lens, Rear Combination Lamp, LH
1969-04 → 1970-10
ended
|
KP30 | — | |
| 81561-10051 note |
Lens, Rear Combination Lamp, LH
1970-10 → 1971-12
ended
|
KP30 | — | |
| 81561-10070 note |
Lens, Rear Combination Lamp, LH
1970-10 → 1971-12
ended
|
KP30 LHD | — | |
| 81561-10110 note |
Lens, Rear Combination Lamp, LH
1973-10 → 1974-04
ended
|
KP30 LHD | — | |
| 81561-11030 note |
Lens, Rear Combination Lamp, LH
1969-04 → 1971-12
ended
|
KP36 V | — | |
| 81561-11031 note |
Lens, Rear Combination Lamp, LH
1972-01 → 1978-09
ended
|
KP36 V | — | |
| 81562 — Gasket, Rear Combination Lamp Lens, LH | ||||
| 81552-10050 |
Gasket, Rear Combination Lamp Lens, LH
1969-04 → 1971-12
ended
|
KP30 | — | |
| 81552-10051 |
Gasket, Rear Combination Lamp Lens, LH
1972-01 → 1973-10
ended
|
KP30 | — | |
| 81552-10051 note |
Gasket, Rear Combination Lamp Lens, LH
1973-10 → 1974-04
ended
|
KP30 LHD | — | |
| 81552-11050 |
Gasket, Rear Combination Lamp Lens, LH
1969-04 → 1978-09
ended
|
KP36 V | — | |
| 81564-10031 |
Gasket, Rear Combination Lamp Lens, LH
1973-10 → 1978-02
ended
|
KP30 | — | |
| 81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH | ||||
| 81555-10052 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1973-10 → 1978-09
ended
|
KP36 V | — | |
| 81555-10060 note |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1969-04 → 1971-12
ended
|
KP30 | — | |
| 81555-10070 note |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1969-04 → 1971-12
ended
|
KP30 | — | |
| 81555-10090 note |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1970-10 → 1971-12
ended
|
KP30 LHD | — | |
| 81555-11061 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1972-01 → 1973-10
ended
|
KP36 V | — | |
| 81565-10040 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1972-01 → 1973-10
ended
|
KP30 | — | |
| 81565-10040 note |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1973-10 → 1974-04
ended
|
KP30 LHD | — | |
| 81565-10042 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1973-10 → 1978-02
ended
|
KP30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
