Water Pump

12 part groups · 2 illustrations

Illustrations

Figure MA0090D

MA0090D 1969-04 → 1970-07

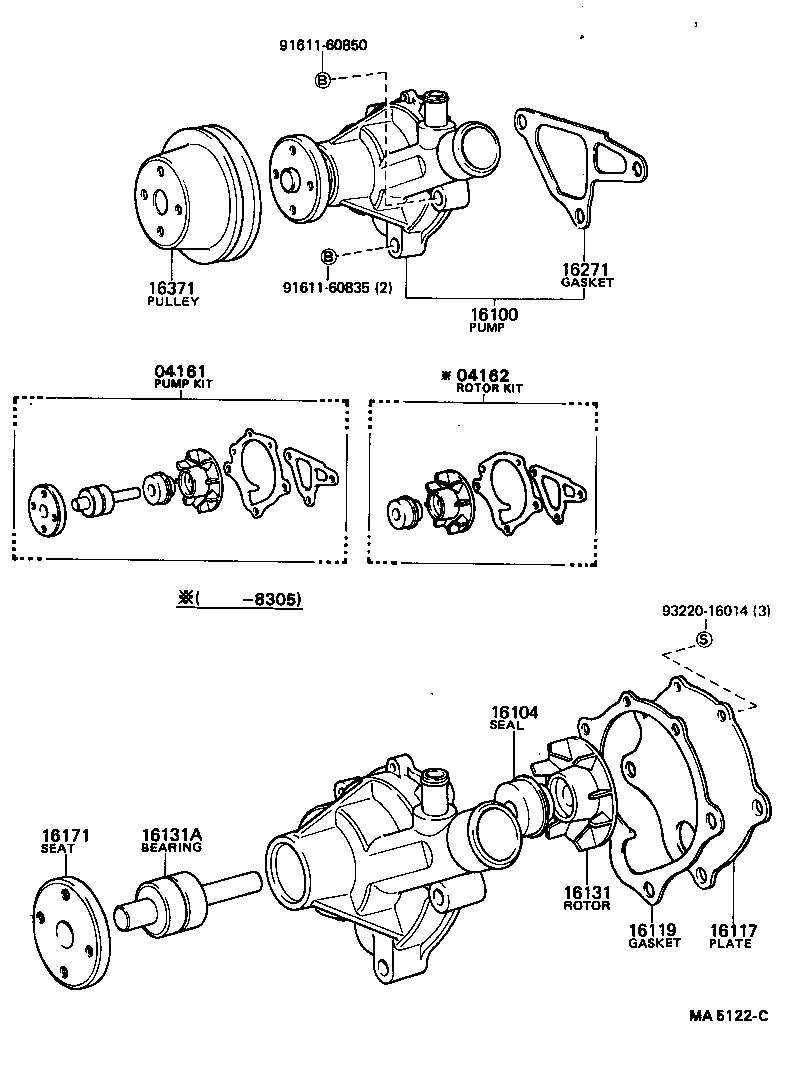

Figure MA5122C

MA5122C 1970-07 → —

Part groups

PNC	Description
04161	Pump Kit, Water
04162	Rotor Kit, Water Pump
16100	Pump Assy, Engine Water
16103	Rotor Sub-assy, Water Pump
16104	Seal Set, Water Pump
16117	Plate, Water Pump
16119	Gasket, Water Pump Body
16131	Rotor, Water Pump
16131A	Bearing, Water Pump
16171	Seat, Water Pump Pulley
16271	Gasket, Water Pump
16371	Pulley, Fan

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
