Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

16 part groups · 7 illustrations

Illustrations

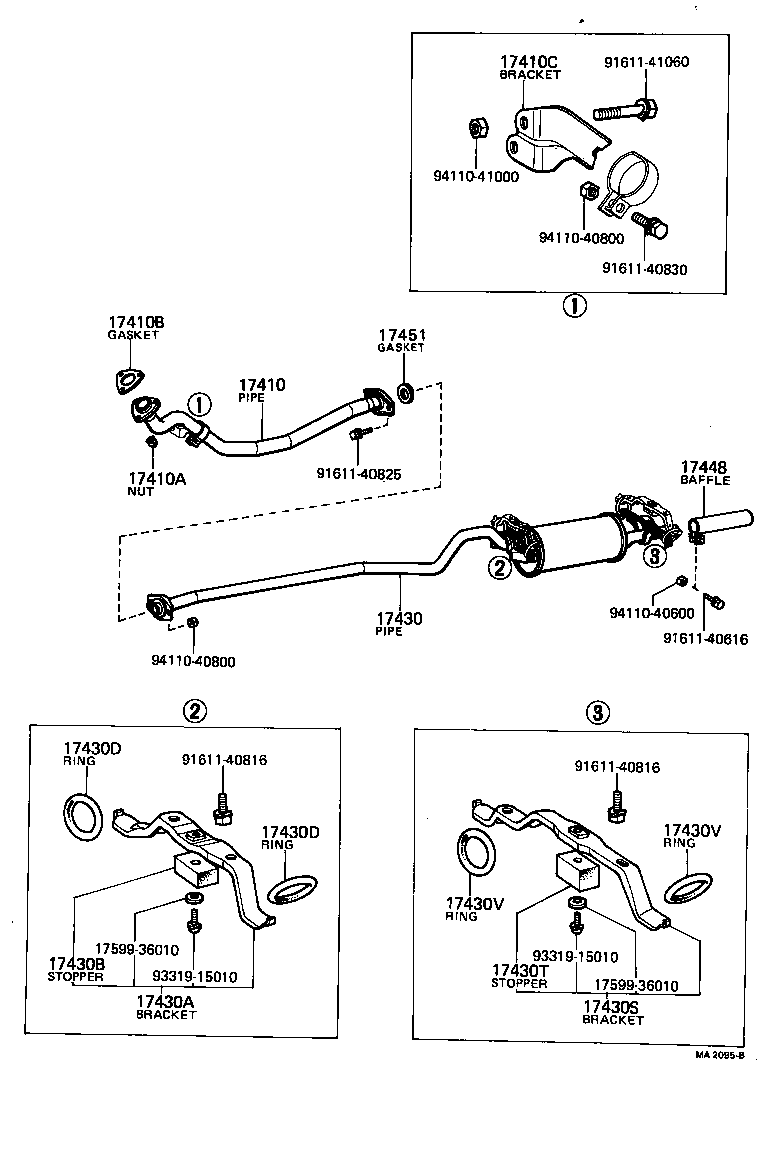

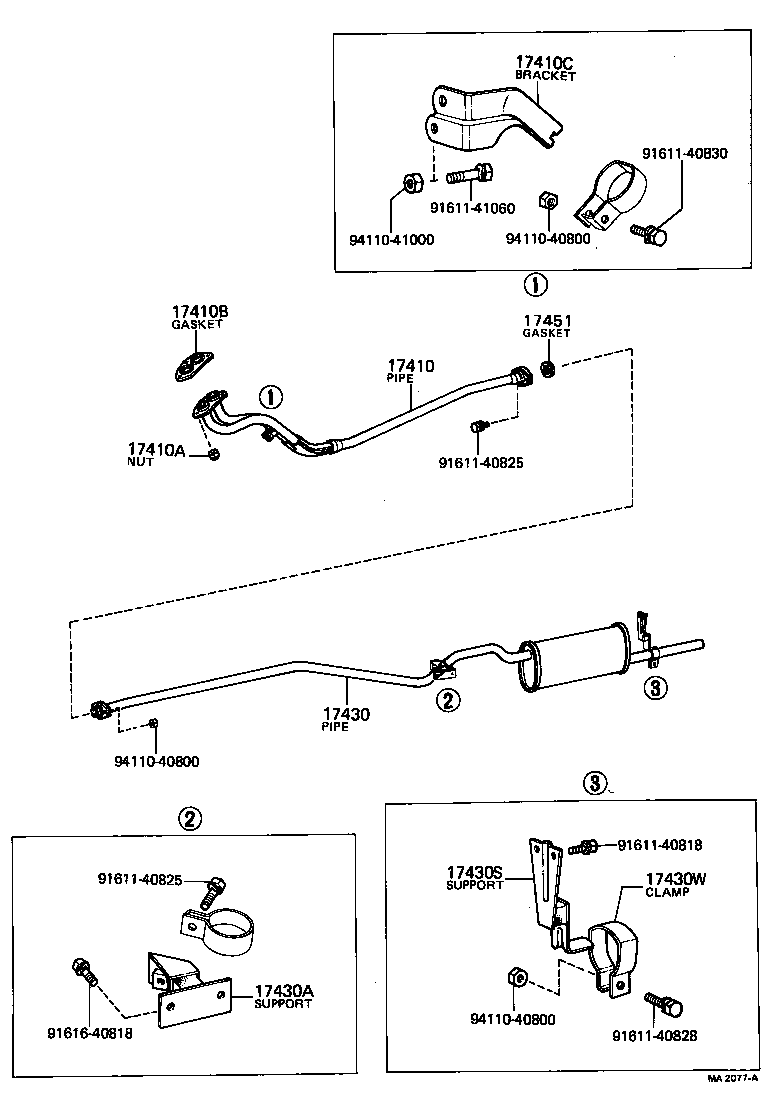

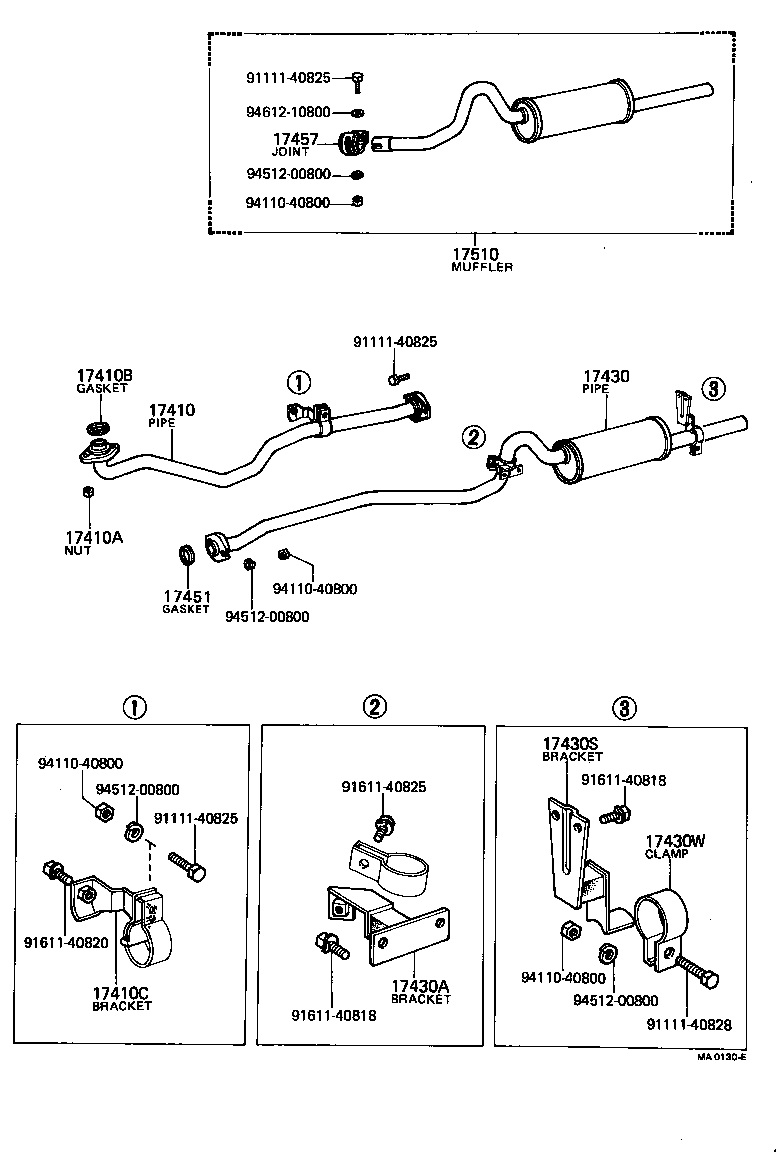

Figure MA0443D MA0443D 1969-04 → 1975-11 Figure MA0444D MA0444D 1969-04 → 1975-11 Figure MA0130E MA0130E 1969-11 → 1975-11 Figure MA2095B MA2095B 1975-11 → 1978-02 Figure MA2074A MA2074A 1975-11 → 1978-09 Figure MA2093A MA2093A 1975-11 → — Figure MA2077A MA2077A 1977-07 → 1981-08

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17457 Joint, Exhaust Pipe
17510 Muffler Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
