Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

9 part groups · 6 illustrations

Illustrations

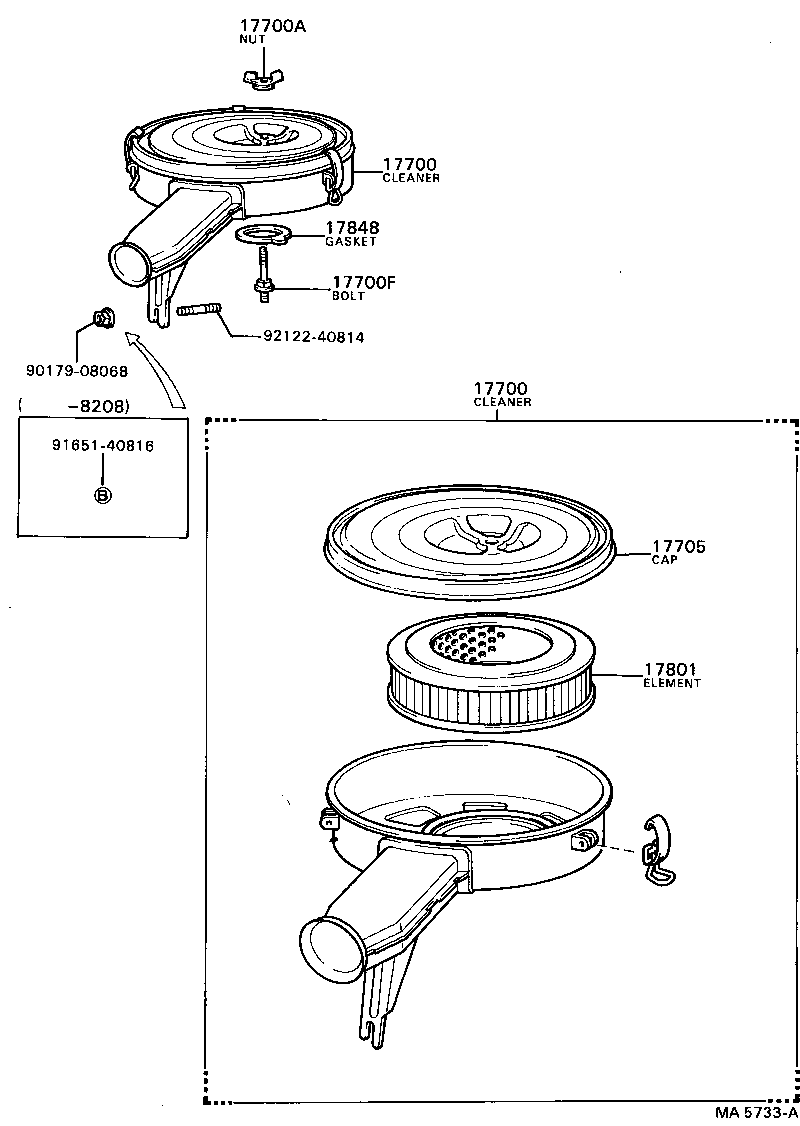

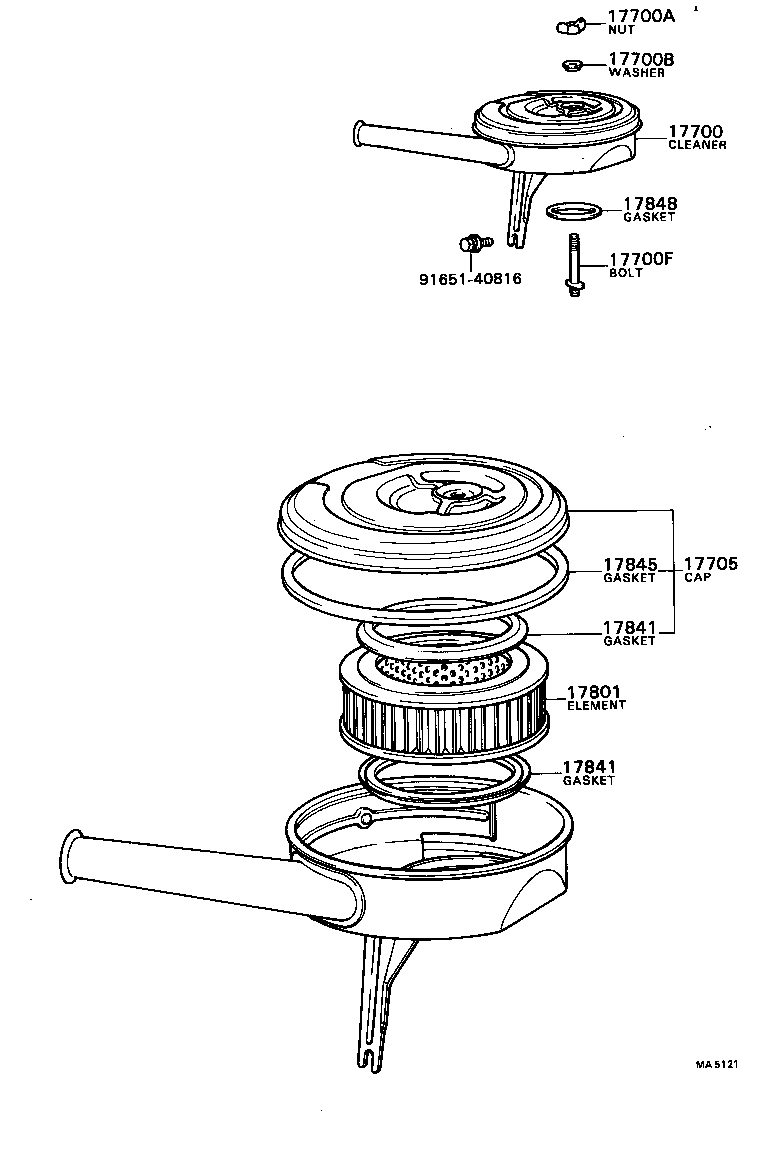

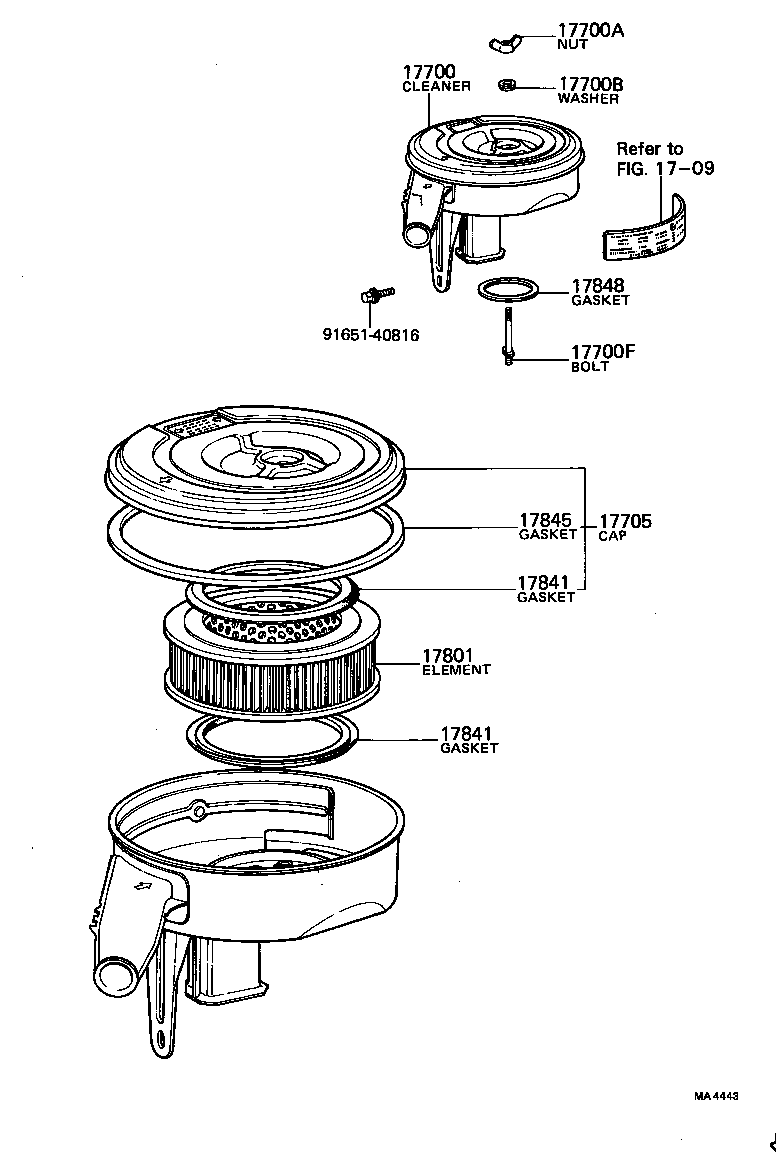

Figure MA0734B MA0734B 1969-04 → 1973-04 Figure MA1327B MA1327B 1973-04 → 1975-11 Figure MA4443 MA4443 1975-11 → 1980-12 Figure MA4443 MA4443 1980-12 → 1981-08 Figure MA5121 MA5121 1980-12 → 1982-01 Figure MA5733A MA5733A 1982-01 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
