Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

16 part groups · 3 illustrations

Illustrations

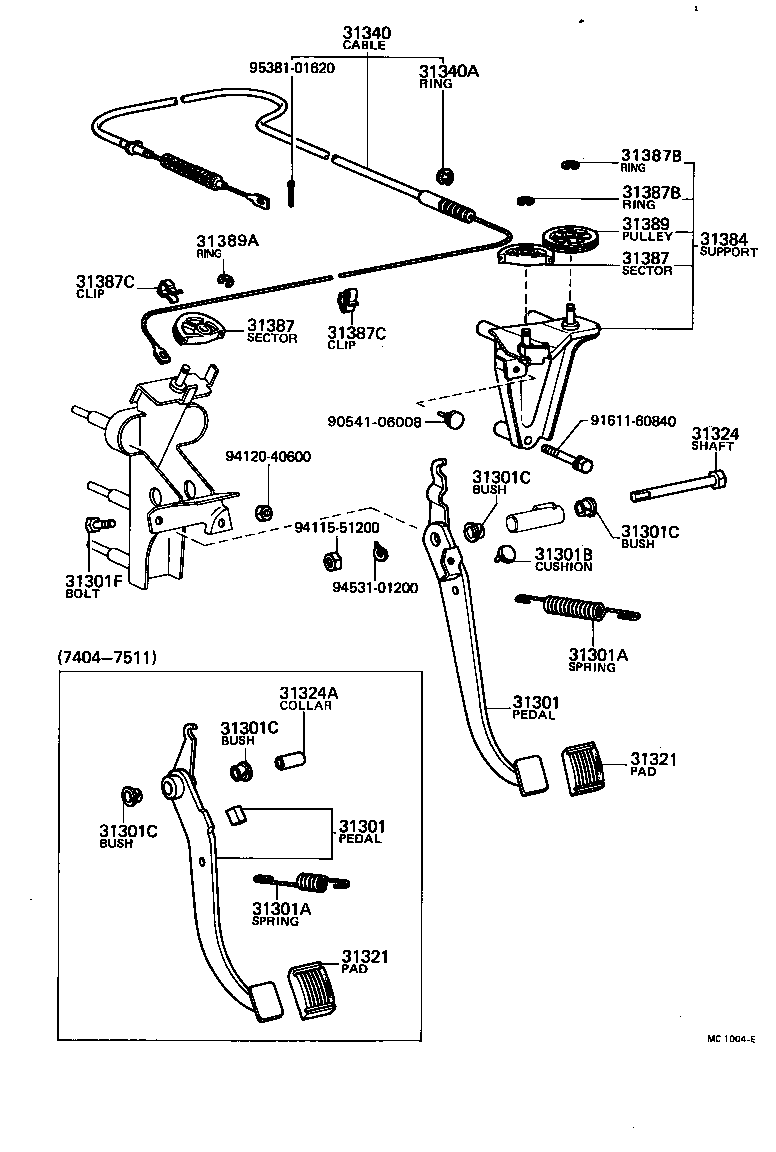

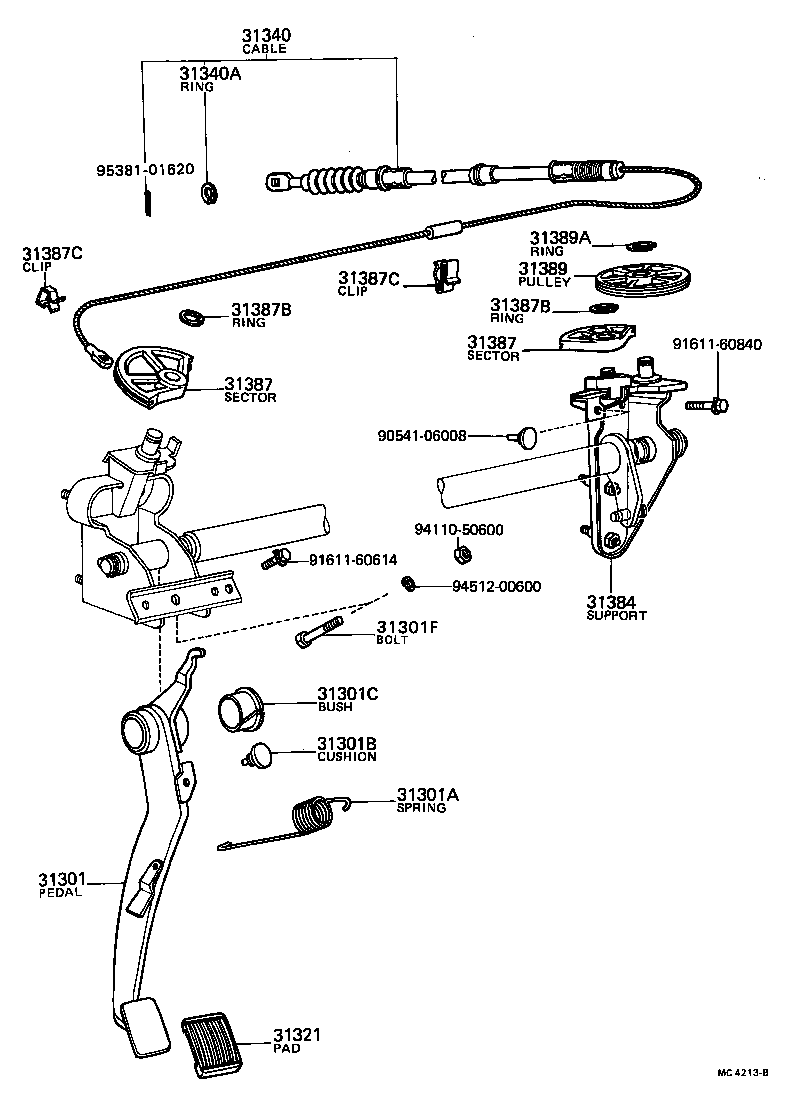

Figure MC2391C MC2391C 1969-04 → — Figure MC1004E MC1004E 1969-04 → — Figure MC4213B MC4213B 1975-07 → 1978-09

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31340 Cable Assy, Clutch Release
31340A Ring, E(FOR CLUTCH RELEASE CABLE)
31384 Support Assy, Clutch Release Sector
31387 Sector, Clutch Release
31387B Ring, E(FOR CLUTCH RELEASE SECTOR)
31387C Clip(FOR CLUTCH RELEASE SECTOR)
31389 Pulley, Clutch Release
31389A Ring, E(FOR CLUTCH RELEASE PULLEY)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
