Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

11 part groups · 4 illustrations

Illustrations

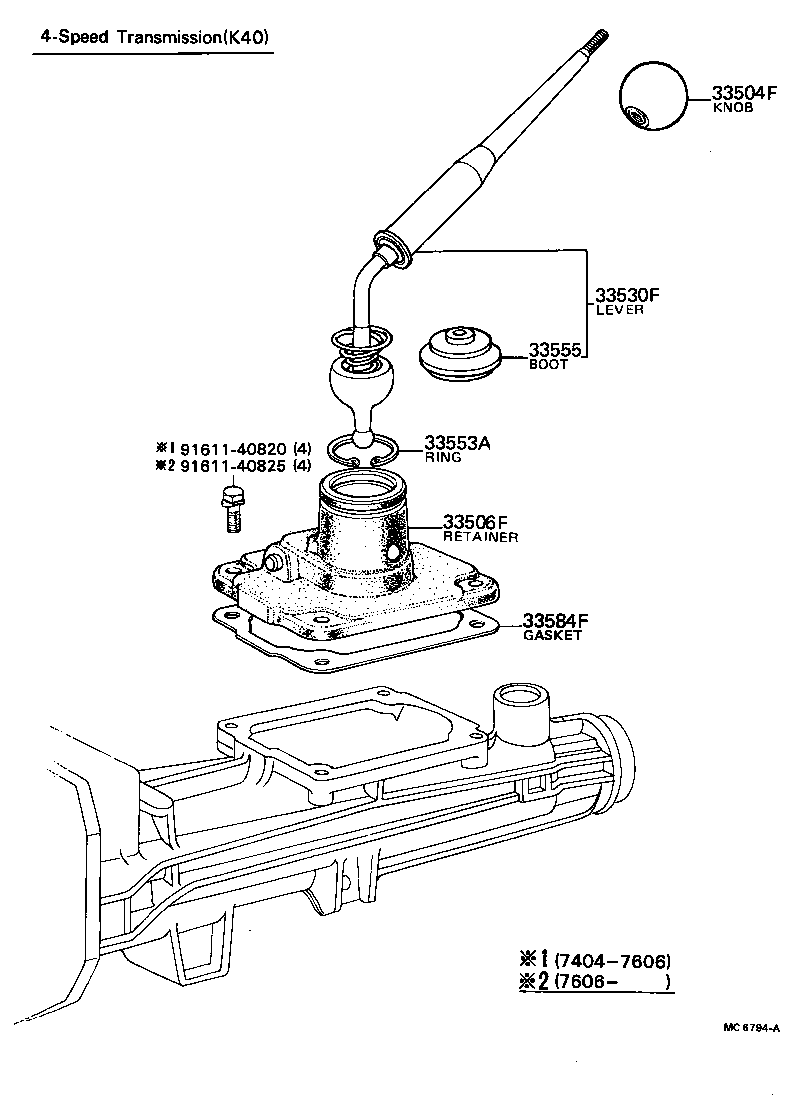

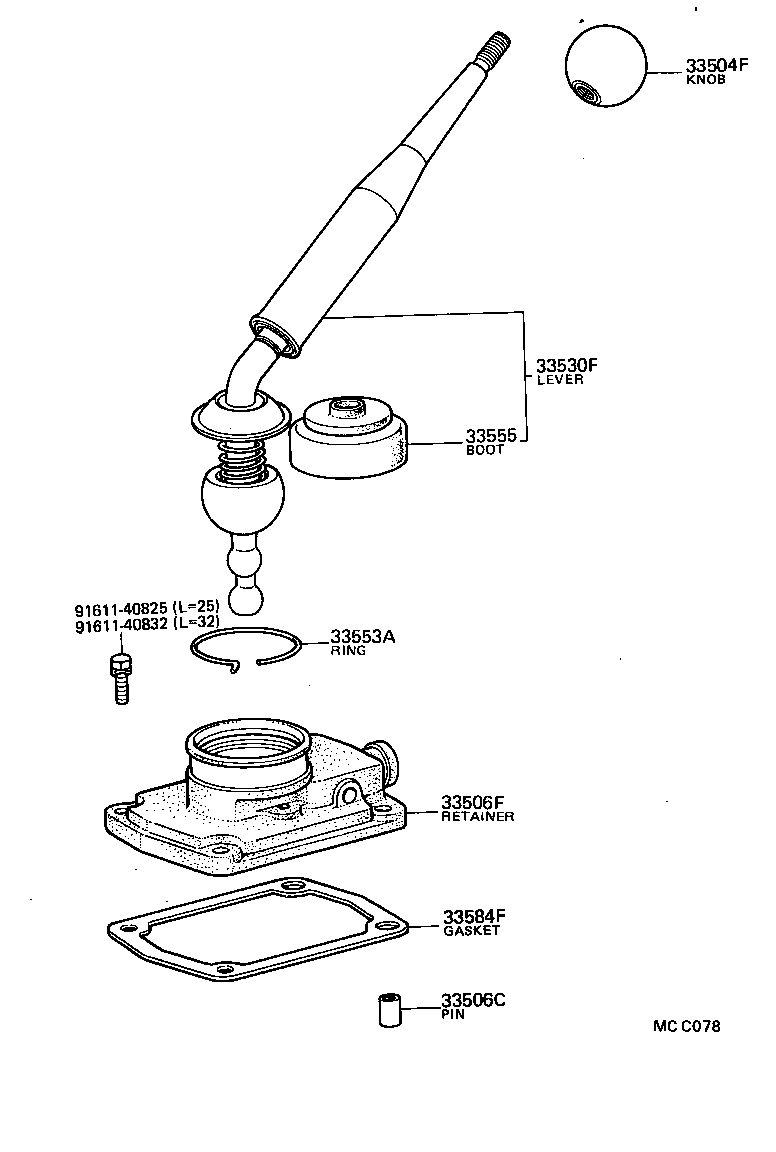

Figure MC0094F MC0094F 1969-04 → 1970-04 Figure MC6793 MC6793 1970-04 → 1974-04 Figure MC6794A MC6794A 1974-04 → 1985-01 Figure MCC078 MCC078 1985-01 → —

Part groups

PNCDescription
33278 Support, Shift & Select Lever Shaft
33278A Pin, Shift And Select Lever Shaft Support Straight
33279 Gasket, Shift & Select Lever Shaft Support
33504F Knob Sub-assy, Shift Lever
33506C Pin, Shift Lever Retainer Ring
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33553A Ring, Snap (FOR SHIFT LEVER SPRING SHEET)
33555 Boot, Shift Lever
33555A Clip (FOR LEVER BOOT)
33584F Gasket, Control Shift Lever Retainer (FOR FLOOR SHIFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
