Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

11 part groups · 2 illustrations

Illustrations

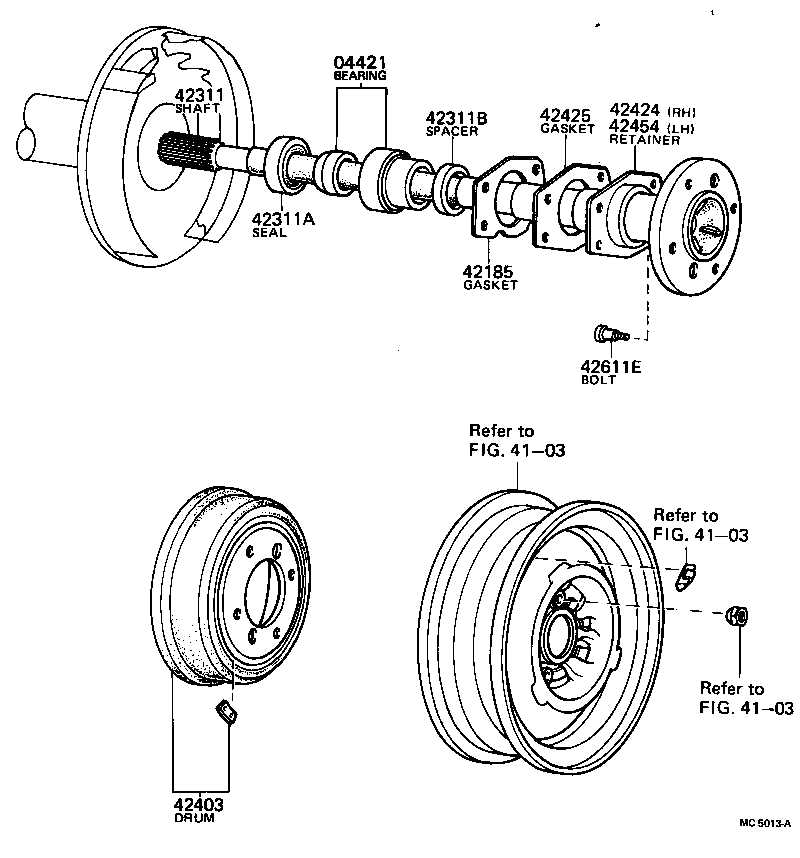

Figure MC0999C MC0999C 1969-04 → 1973-10 Figure MC5013A MC5013A 1973-10 → —

Part groups

PNCDescription
04421 Bearing Kit, Rear Axle Shaft
42185 Gasket, Rear Axle Housing End
42311 Shaft, Rear Axle
42311A Seal, Oil(FOR REAR AXLE SHAFT)
42311B Spacer(FOR REAR AXLE SHAFT BEARING)
42403 Drum Sub-assy, Rear Brake
42423 Retainer, Rear Axle Bearing, Inner
42424 Retainer, Rear Axle Bearing, Outer, RH
42425 Gasket, Rear Axle Bearing Retainer
42454 Retainer, Rear Axle Bearing, Outer, LH
42611E Bolt, Hub (FOR REAR AXLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
