Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

47 part groups · 9 illustrations

Illustrations

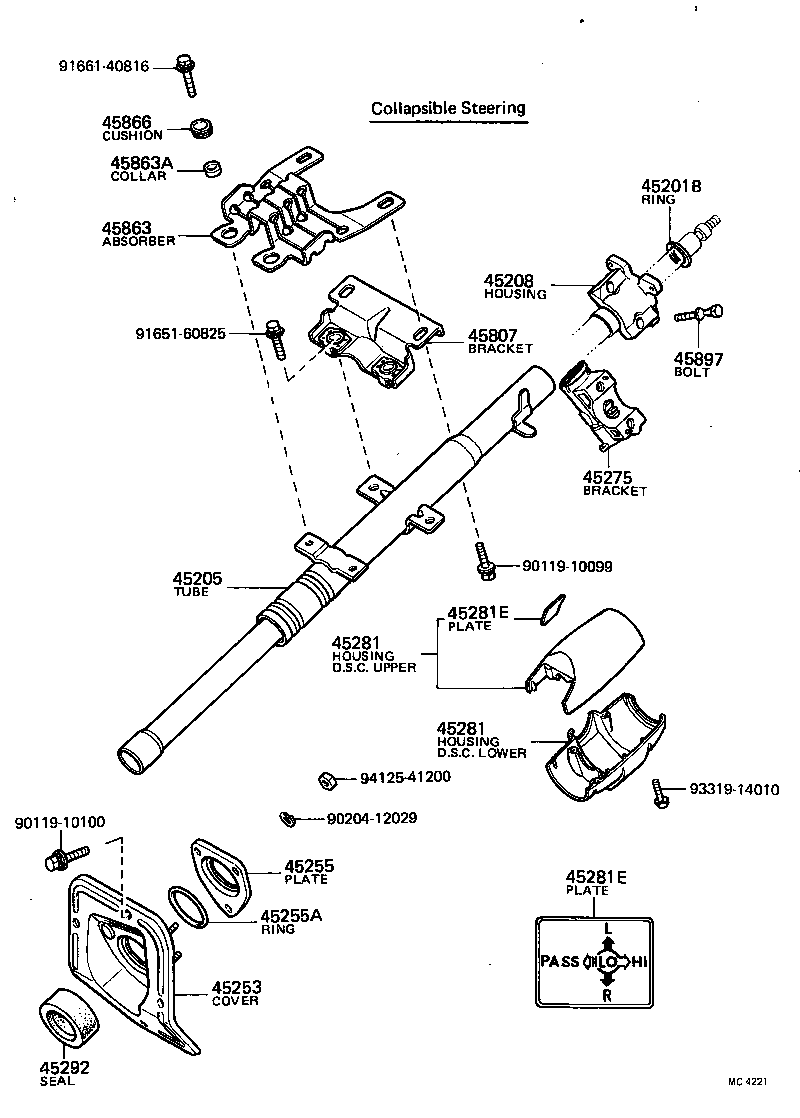

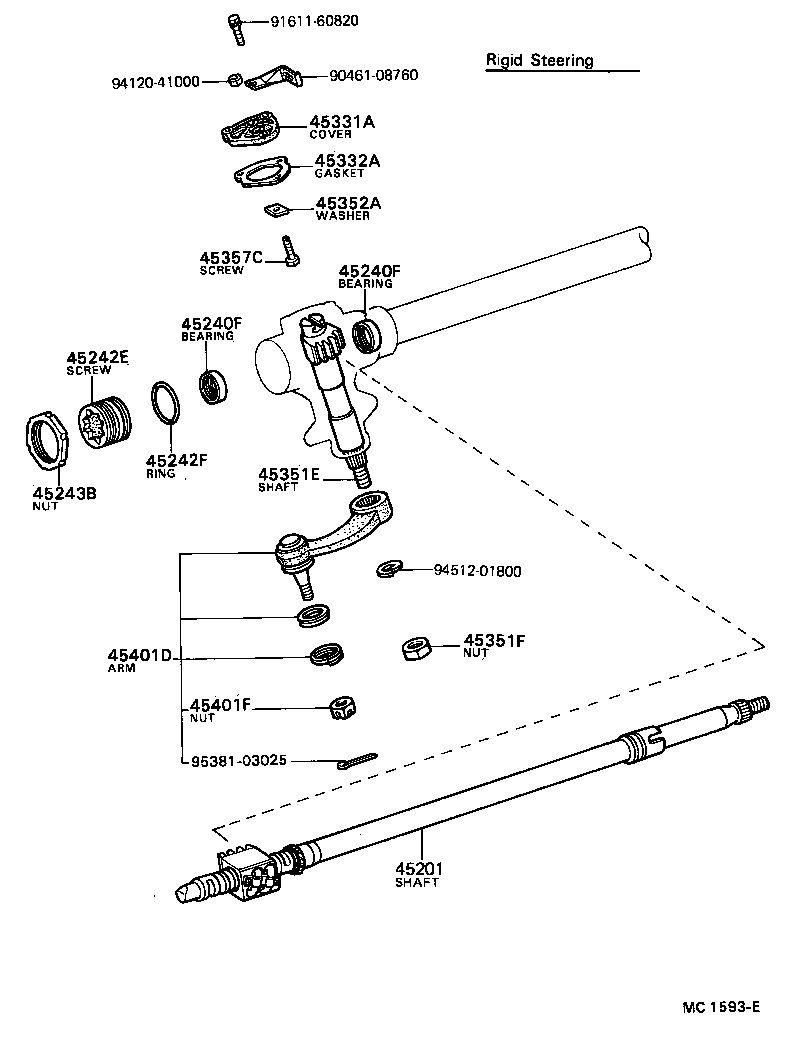

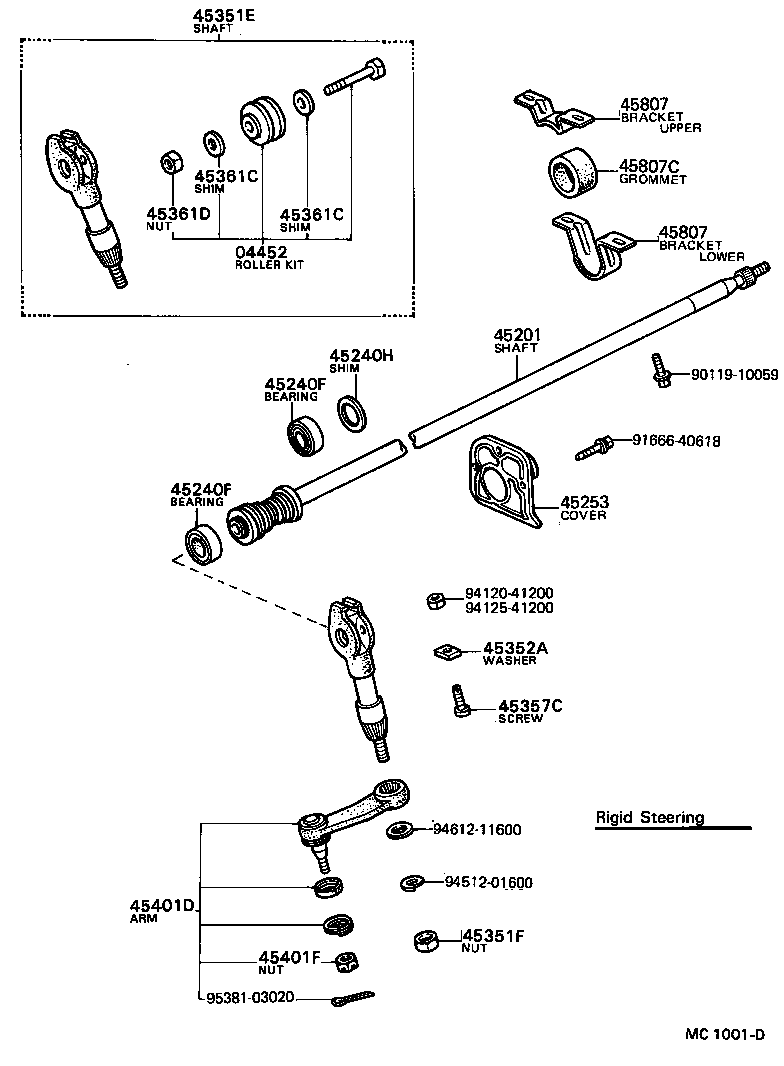

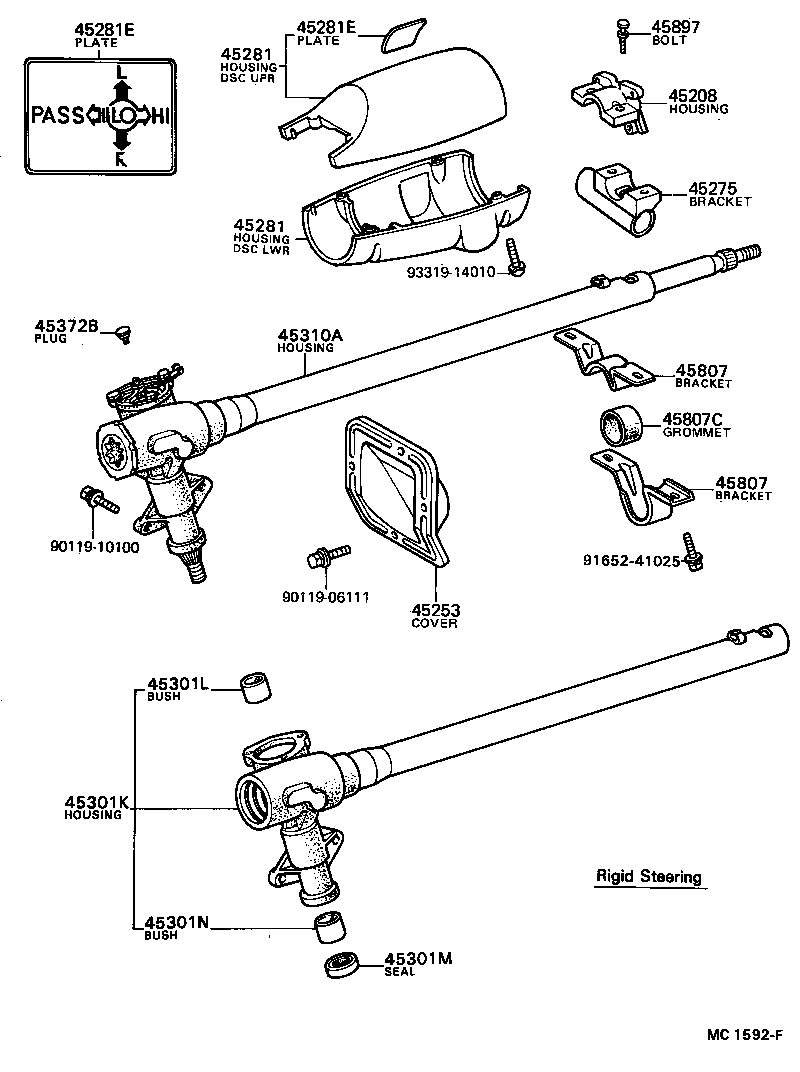

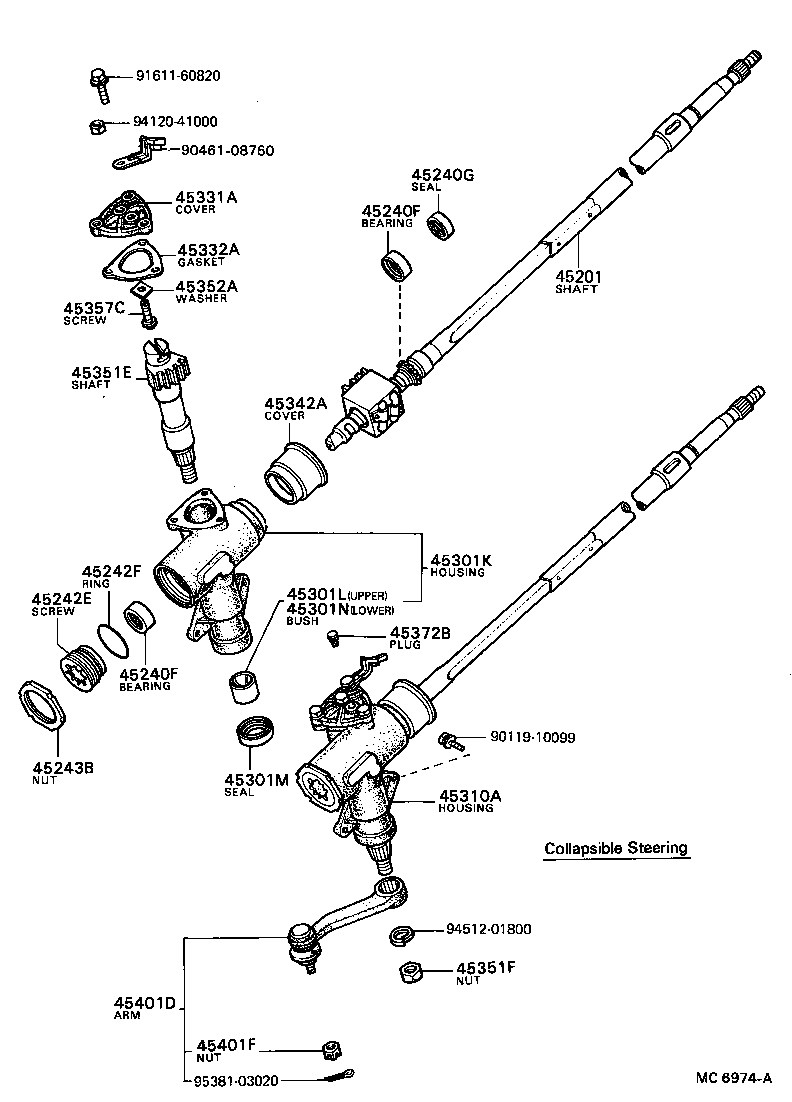

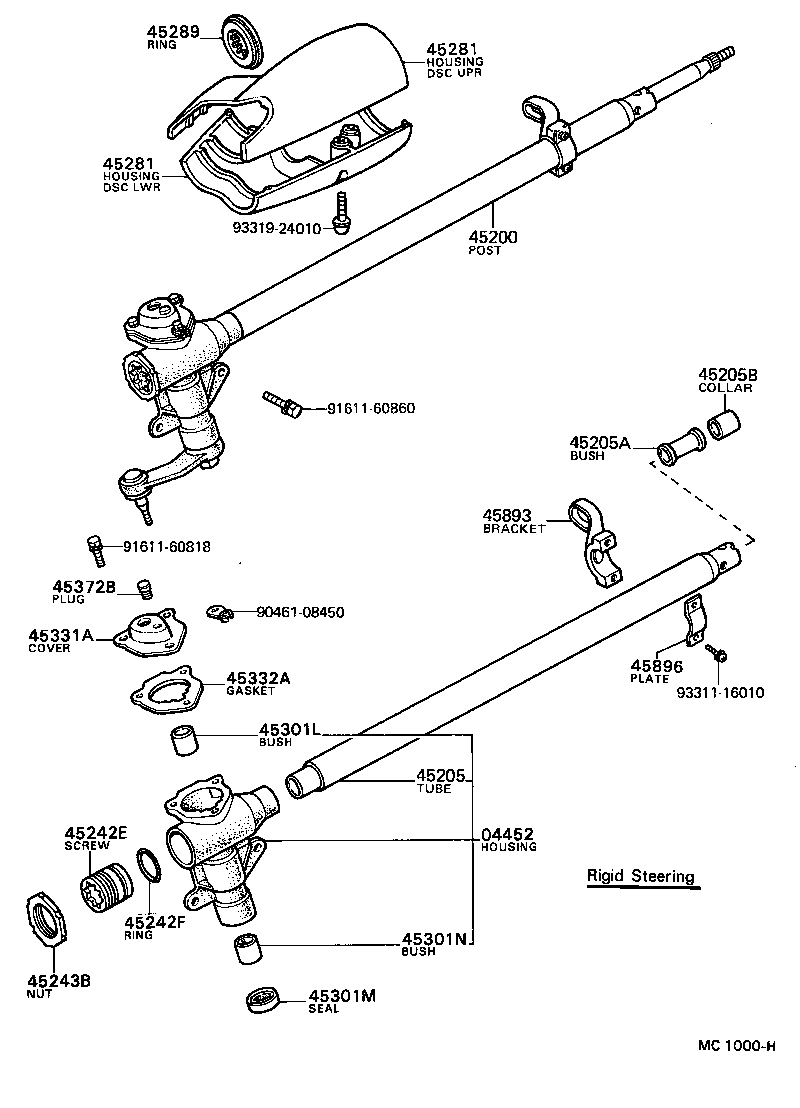

Figure MC0259H MC0259H 1969-04 → 1970-10 Figure MC1000H MC1000H 1970-10 → 1971-12 Figure MC1001D MC1001D 1969-04 → 1971-12 Figure MC1592F MC1592F 1972-01 → — Figure MC1593E MC1593E 1972-01 → — Figure MC4221 MC4221 1973-10 → 1975-12 Figure MC4221 MC4221 1975-12 → 1978-09 Figure MC6974A MC6974A 1973-10 → 1975-12 Figure MC6974A MC6974A 1975-12 → 1978-09

Part groups

PNCDescription
04452 Roller Kit, Steering Sector
45200 Post Assy, Steering
45201 Shaft Sub-assy, Steering Main
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45205 Tube Sub-assy, Steering Column
45205A Bush(FOR STEERING COLUMN TUBE)
45205B Collar(FOR STEERING COLUMN TUBE BUSH)
45208 Housing Sub-assy, Steering Column, Upper
45240F Bearing(FOR STEERING WORM)
45240G Seal, Oil(FOR STEERING WORM)
45240H Shim(FOR STEERING WORM BEARING ADJUST)
45242E Screw, Worm Bearing Adjusting
45242F Ring, O(FOR WORM BEARING ADJUSTING SCREW)
45243B Nut, Worm Bearing Adjusting Screw Lock
45253 Cover, Steering Column Hole
45255 Plate, Steering Column Hole Cover
45255A Grommet OR Ring, O(FOR STEERING COLUMN CLAMP)
45275 Bracket, Steering Column, Upper
45281 Housing, Steering Column
45281E Plate, Safety Caution
45289 Ring, Steering Column Cover
45292 Seal, Main Shaft Lower Dust
45301K Housing Sub-assy, Steering Gear
45301L Bush OR Bearing(FOR SECTOR SHAFT NO.1)
45301M Seal, Oil(FOR SECTOR SHAFT)
45301N Bush OR Bearing(FOR SECTOR SHAFT NO.2)
45310A Housing Assy, Steering Gear
45331A Cover, Sector Shaft End
45332A Gasket, Sector Shaft End Cover
45342A Cover, Steering Gear Housing
45351E Shaft, Steering Sector
45351F Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352A Washer, Sector Shaft Thrust
45357C Screw, Sector Shaft Adjusting
45361C Shim(FOR STEERING SECTOR ROLLER ADJUSTING)
45361D Nut(FOR STEERING SECTOR ROLLER SETTING)
45372B Plug, Steering Gear Housing Oil
45401D Arm Sub-assy, Pitman
45401F Nut, Castle(FOR PITMAN ARM)
45807 Bracket Sub-assy, Steering Column Upper Support
45807C Grommet(FOR STEERING COLUMN CLAMP)
45863 Absorber, Steering Column Energy
45863A Collar
45866 Cushion, Steering Column Energy Absorber
45893 Bracket, Steering Lock
45896 Plate, Ignition Switch Attachment
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
