Toyota TOYOTA1000
1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe
Discontinued model
Data version 1988-08

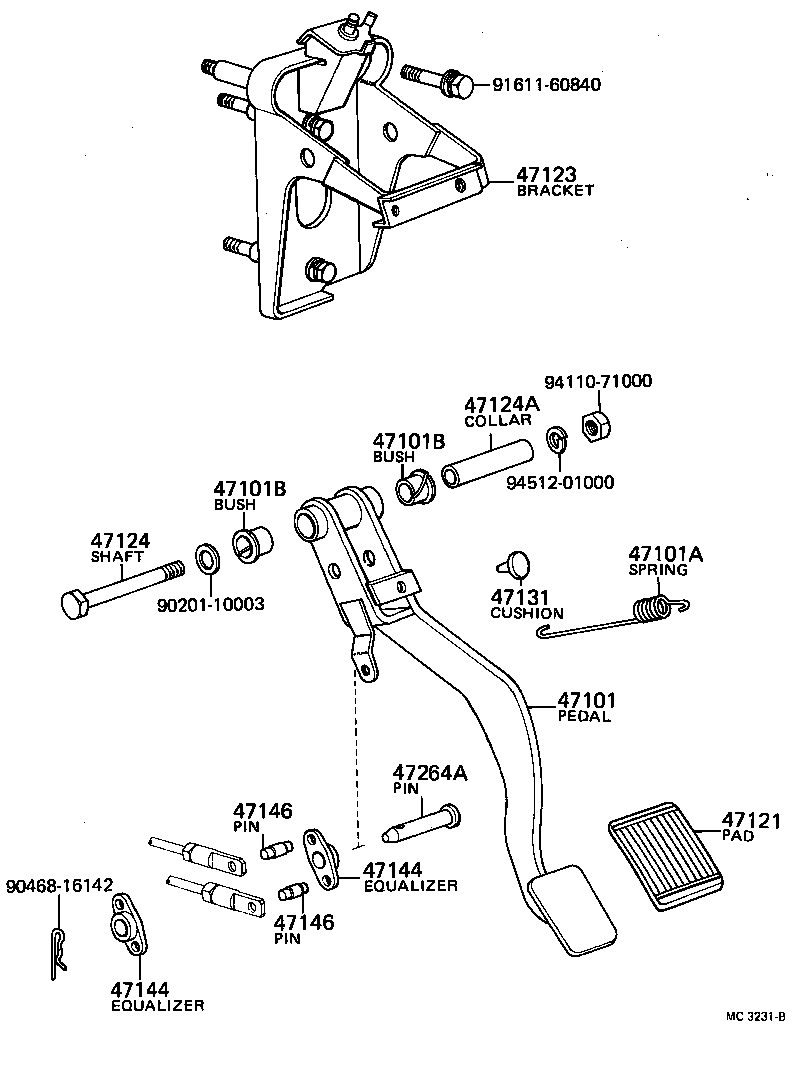

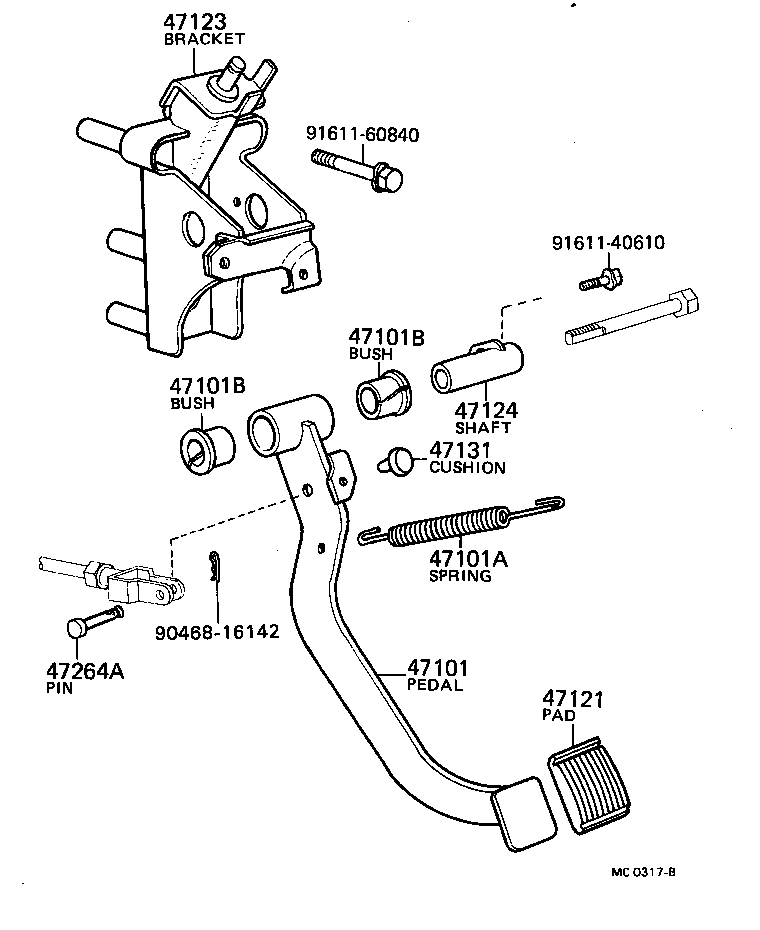

Brake Pedal & Bracket
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31315 | Bumper, Pedal |
| 47101 | Pedal Sub-assy, Brake |
| 47101A | Spring(FOR BRAKE PEDAL RETURN) |
| 47101B | Bush(FOR BRAKE PEDAL) |
| 47121 | Pad, Brake Pedal |
| 47122 | Stopper, Brake Pedal |
| 47123 | Bracket, Brake Pedal |
| 47124 | Shaft, Brake Pedal |
| 47124A | Collar(FOR BRAKE PEDAL SHAFT) |
| 47131 | Cushion(FOR STOP LAMP SWITCH) |
| 47144 | Equalizer, Push Rod |
| 47146 | Pin, Equalizer |
| 47264A | Pin(FOR PUSH ROD) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
