Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

31 part groups · 4 illustrations

Illustrations

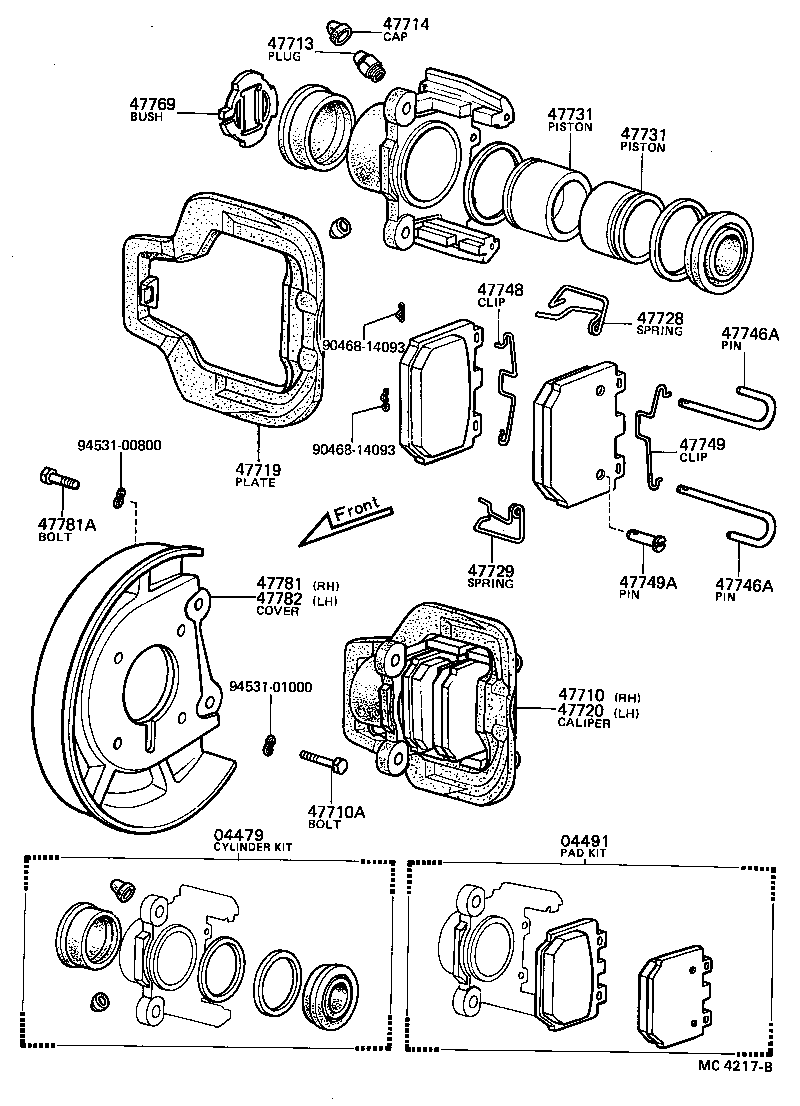

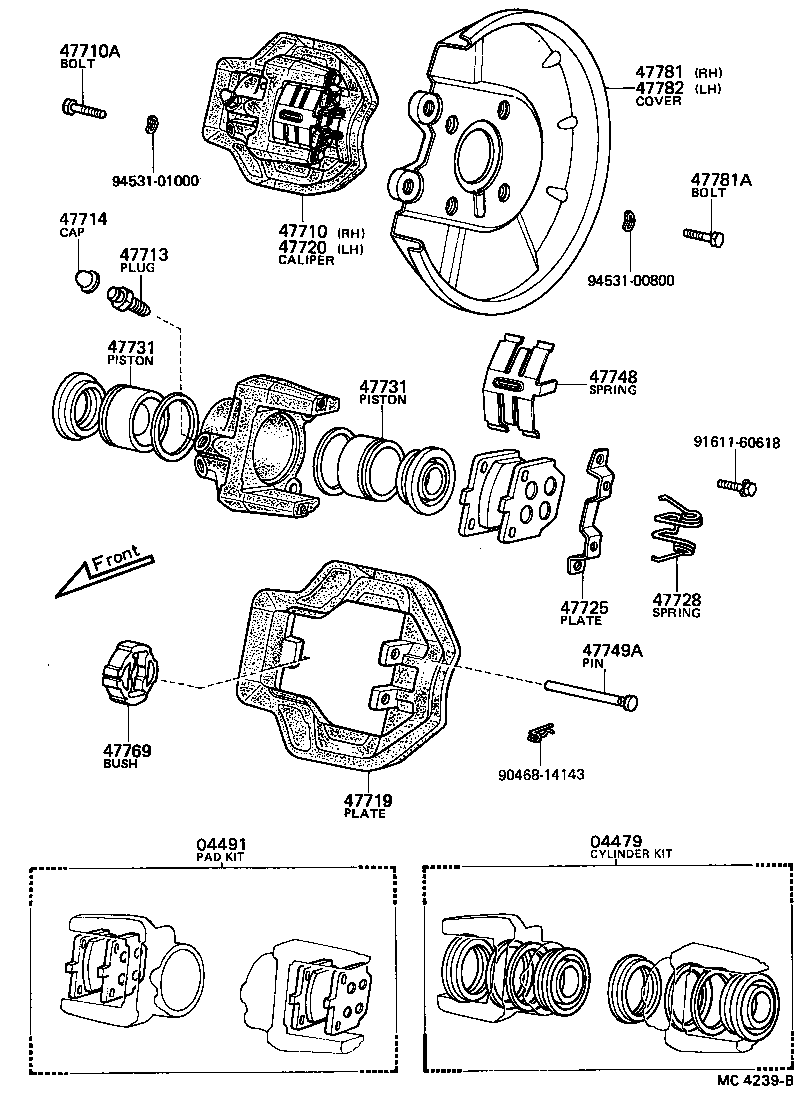

Figure MC0366E MC0366E 1969-04 → 1971-12 Figure MC4217B MC4217B 1971-12 → 1976-05 Figure MC4239B MC4239B 1976-05 → 1978-09 Figure MCT614 MCT614 1969-04 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04479 Cylinder Kit, Disc Brake, Front
04491 Pad Kit, Disc Brake, Front
04947 Fitting Kit, Disc Brake, Front
47710 Caliper Assy, Disc Brake, Front, RH
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47713 Plug, Bleeder(FOR FRONT DISC BRAKE)
47714 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47716 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47717 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47718 Spring, Front Disc Brake Cylinder Support
47719 Plate, Front Disc Brake Pad Guide
47720 Caliper Assy, Disc Brake, Front, LH
47721 Mounting, Front Disc Brake Cylinder, RH
47722 Mounting, Front Disc Brake Cylinder, LH
47725 Plate, Fron Disc Brake Pin Hold
47726 Guide, Front Disc Brake Cylinder
47726A Clip(FOR FRONT DISC BRAKE CYLINDER)
47728 Spring, Front Disc Brake Plate Hold, NO.1
47729 Spring, Front Disc Brake Plate Hold, NO.2
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47746A Pin, W/Hole(FOR DISC BRAKE PAD, FRONT)
47748 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47749 Clip, Pin Hold
47749A Pin, W/Hole(FOR PIN HOLD CLIP)
47750 Cylinder Assy, Disc Brake, LH
47769 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47781 Cover, Disc Brake Dust, Front RH
47781A Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782 Cover, Disc Brake Dust, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
