Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

26 part groups · 12 illustrations

Illustrations

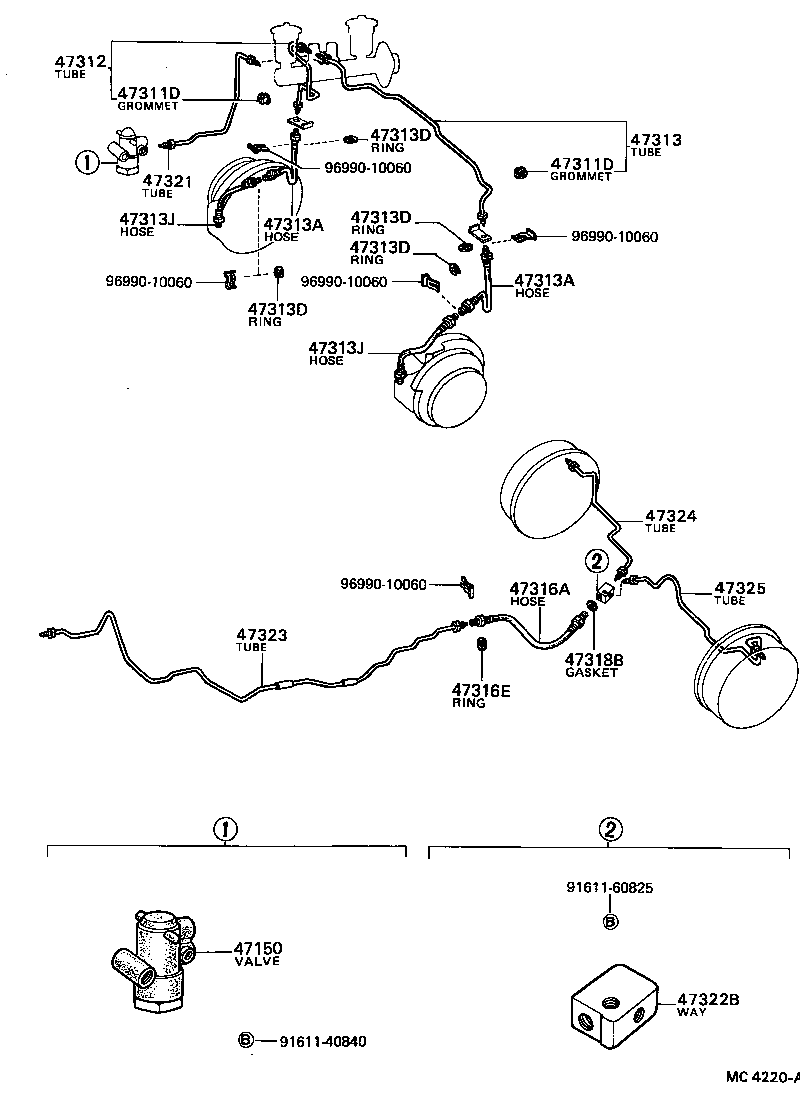

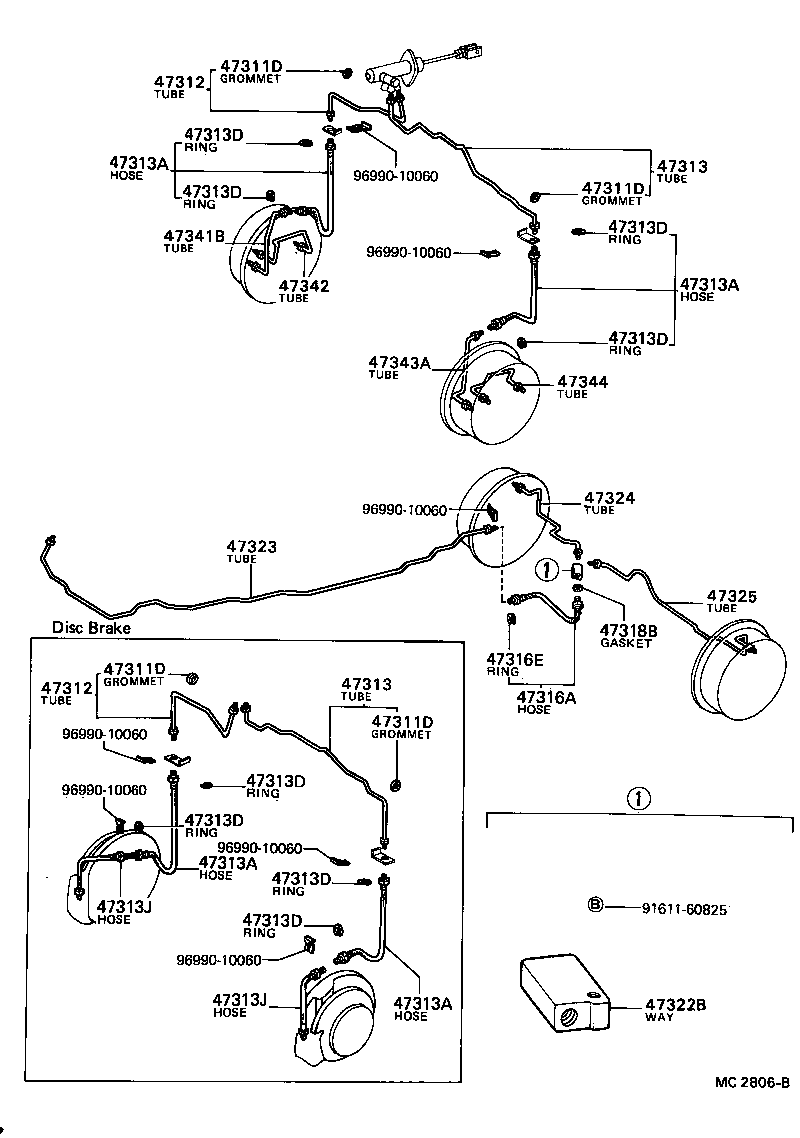

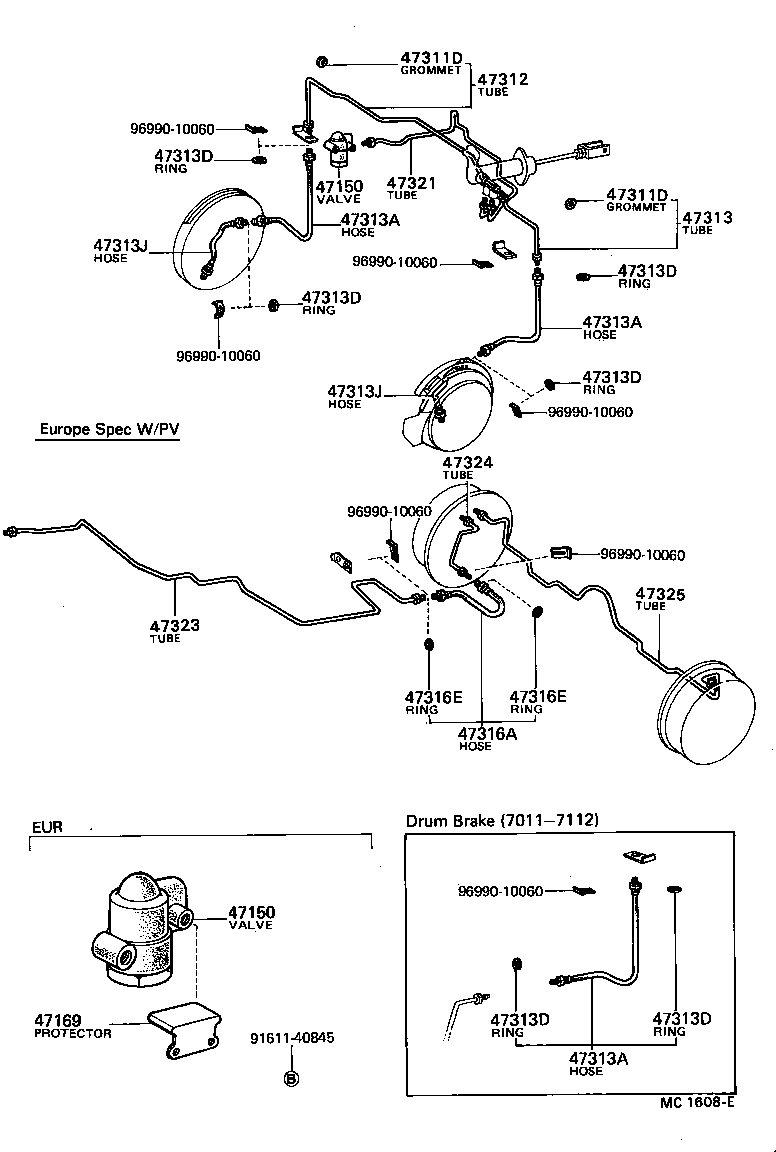

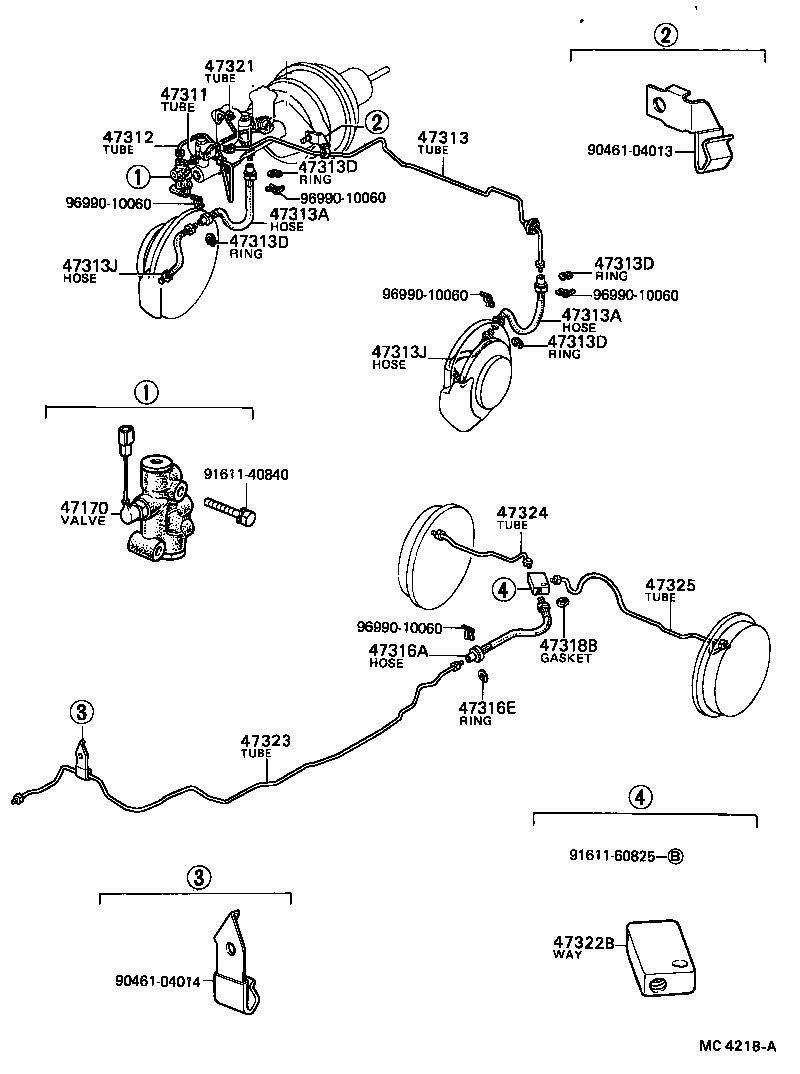

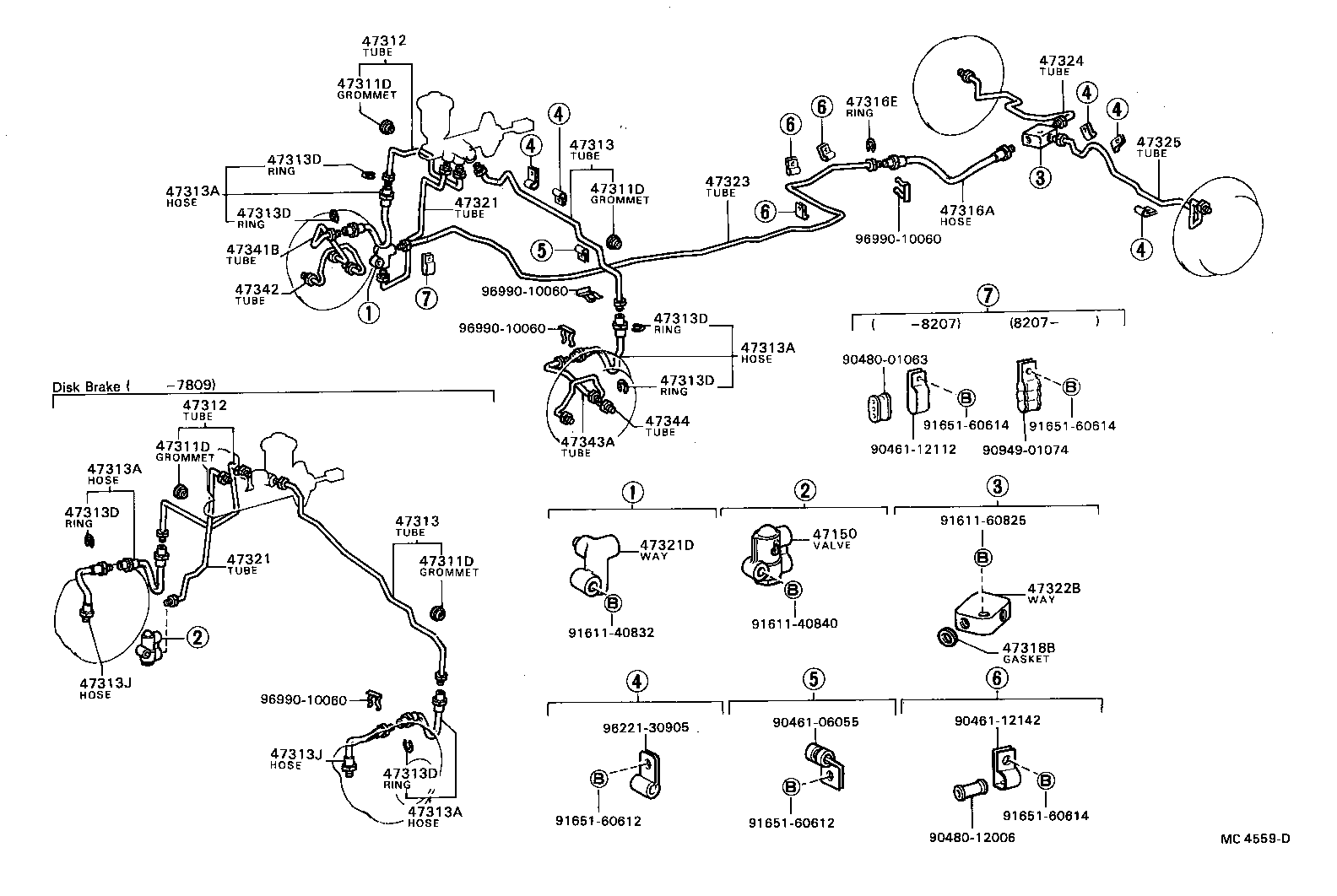

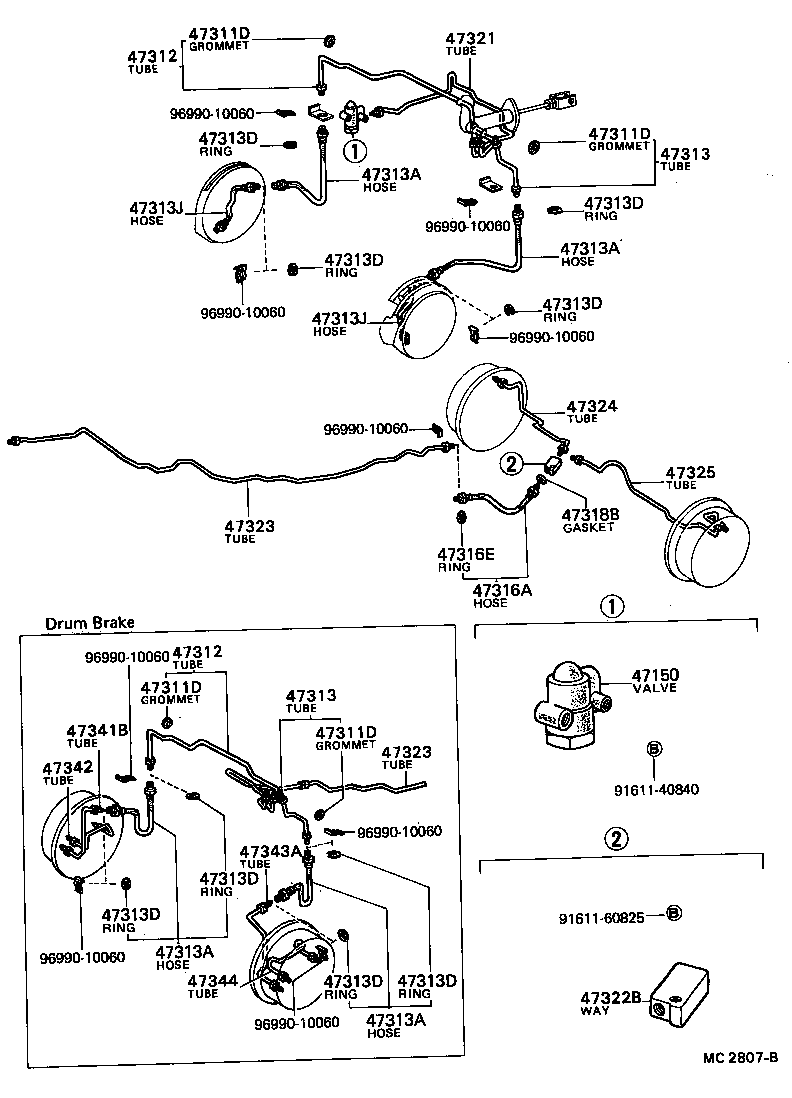

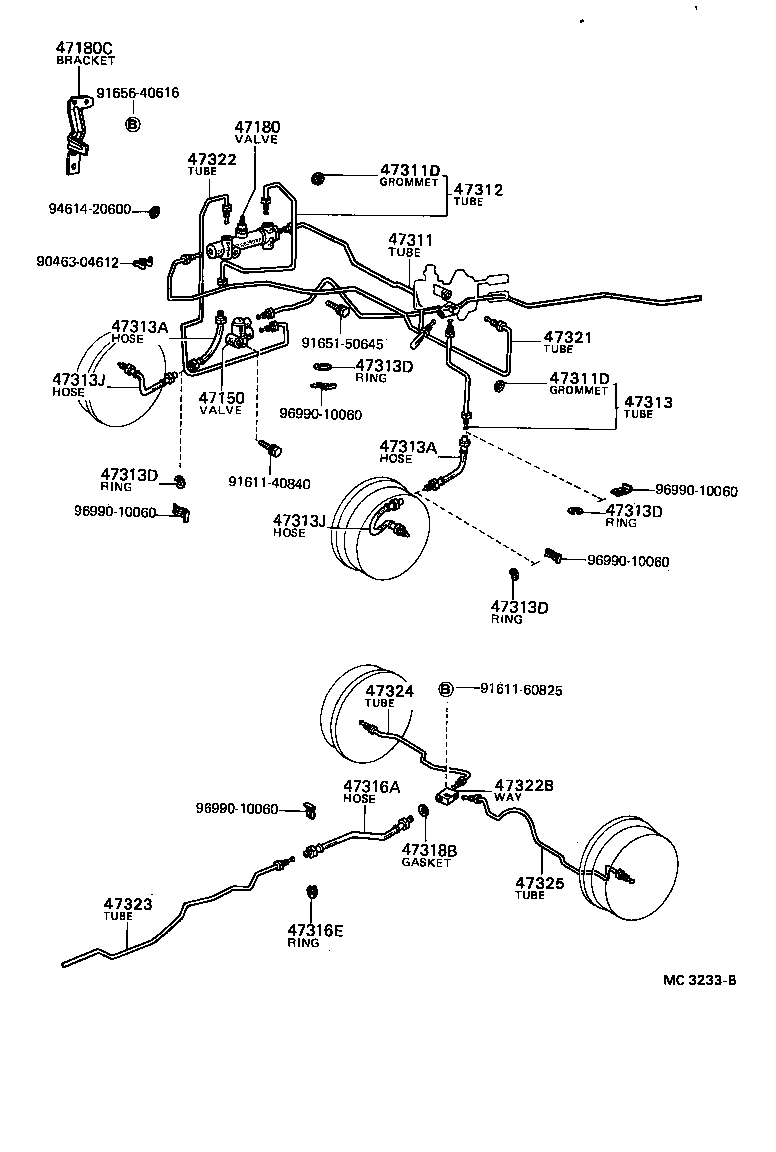

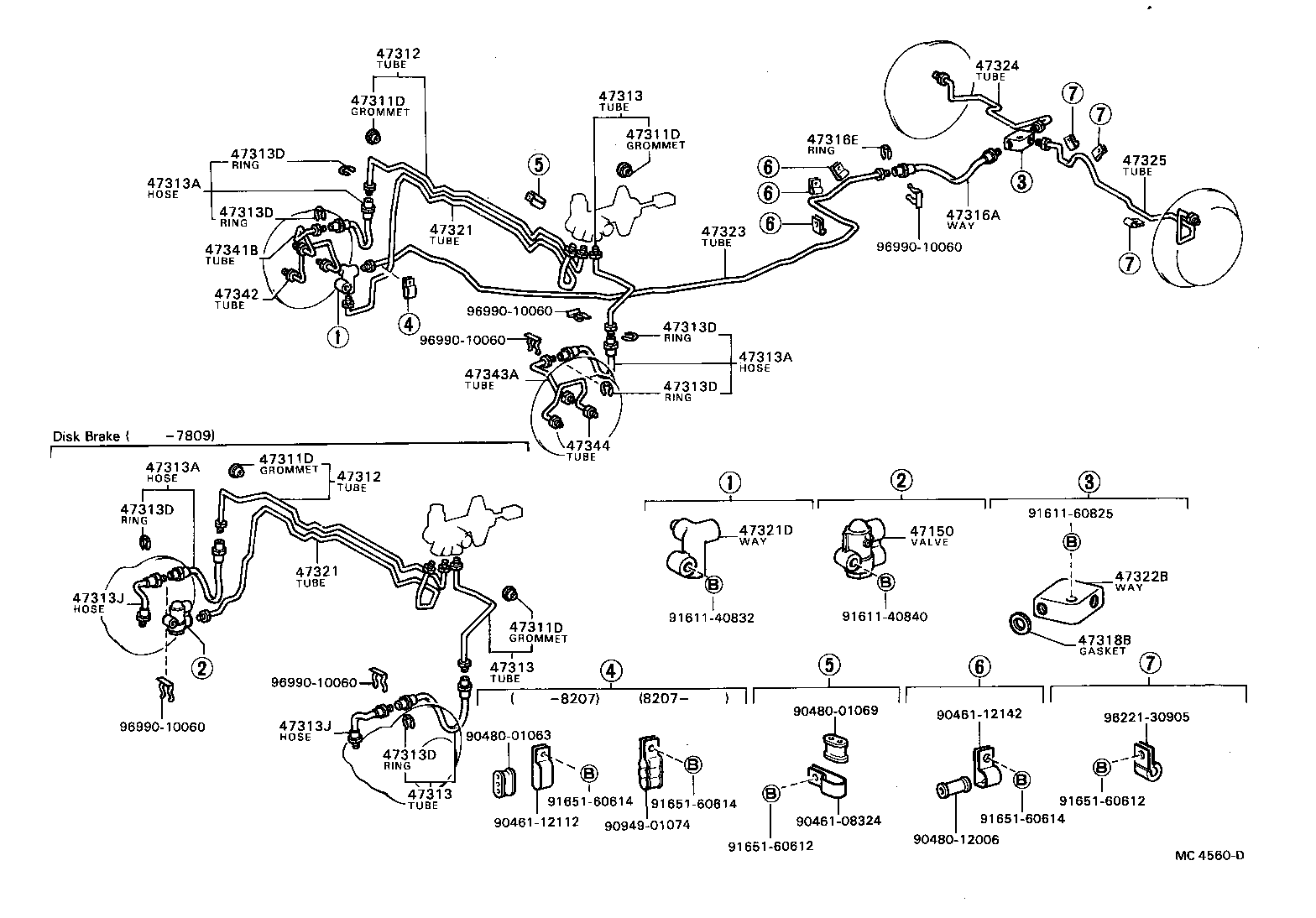

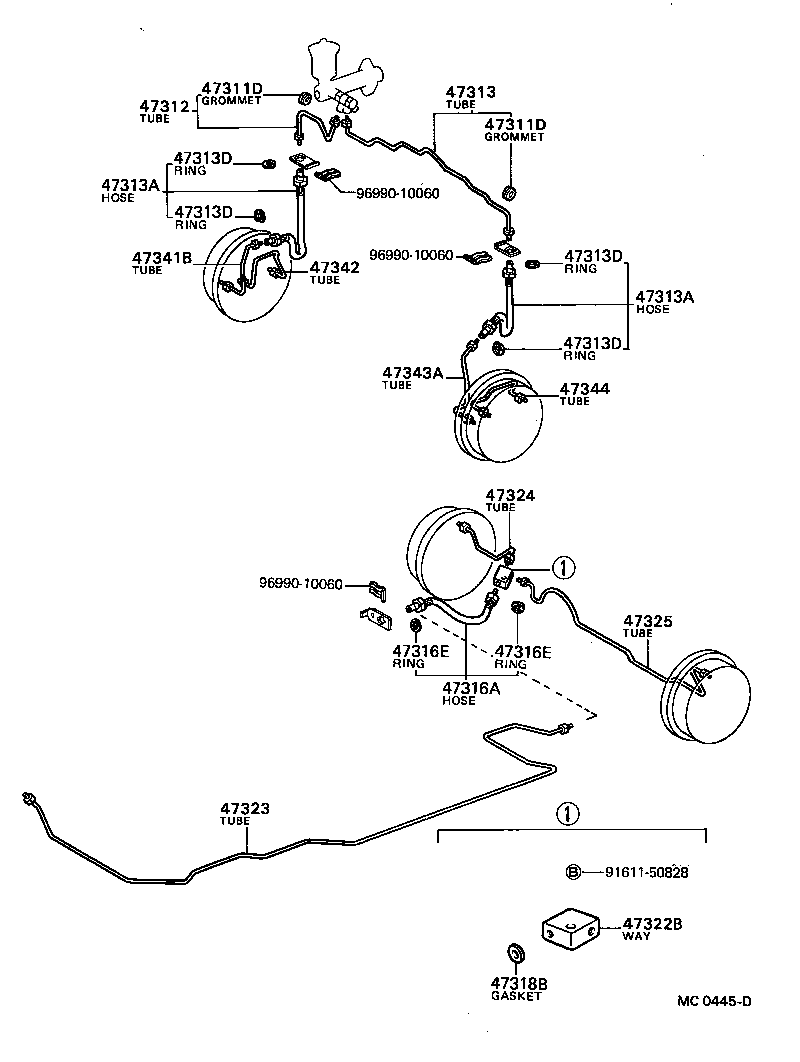

Figure MC1606C MC1606C 1969-04 → 1970-04 Figure MC1606C MC1606C 1970-04 → 1973-10 Figure MC0445D MC0445D 1970-04 → 1973-10 Figure MC1608E MC1608E 1970-11 → 1973-10 Figure MC2806B MC2806B 1973-10 → 1975-11 Figure MC2807B MC2807B 1973-10 → 1975-11 Figure MC3233B MC3233B 1974-07 → 1975-11 Figure MC4220A MC4220A 1974-07 → 1975-12 Figure MC4218A MC4218A 1975-07 → 1975-12 Figure MC4218A MC4218A 1975-12 → 1978-09 Figure MC4559D MC4559D 1975-11 → — Figure MC4560D MC4560D 1975-11 → —

Part groups

PNCDescription
47150 Valve Assy, Proportioning
47169 Protector, Proportioning Valve
47170 Valve Assy, Brake Combination
47180 Valve,Assy, Brrke Pressure Differential
47180C Bracket, Brake Pressure Differential Valve
47311 Tube, Front Brake, NO.1
47311D Grommet(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313D Ring, E(FOR FRONT FLEXIBLE HOSE SETTING)
47313J Hose, Flexible, NO.2(FOR FRONT)
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47316E Ring, E(FOR REAR FLEXIBLE HOSE)
47318B Gasket(FOR REAR RH BRAKE TUBE)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47341B Tube, Wheel Cylinder, Front RH NO.1
47342 Tube, Wheel Cylinder, Front RH NO.2
47343A Tube, Wheel Cylinder, Front LH NO.1
47344 Tube, Wheel Cylinder, Front LH NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
