Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

12 part groups · 2 illustrations

Illustrations

Figure MB1352D

MB1352D 1969-04 → 1978-02

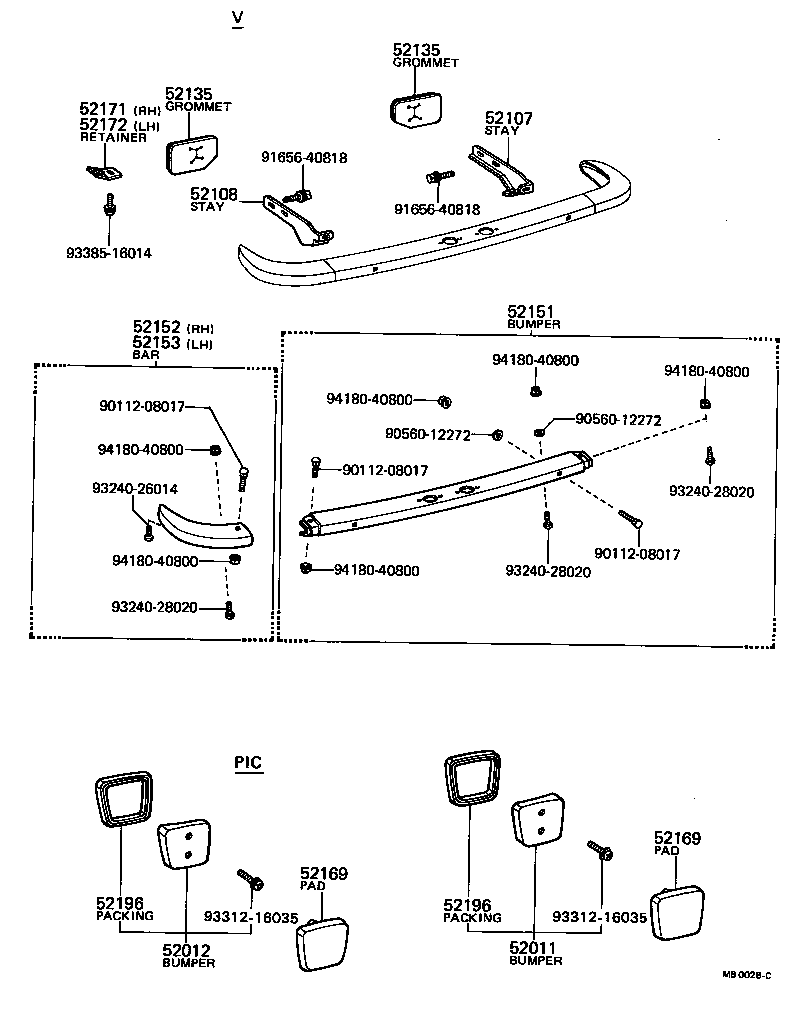

Figure MB0028C

MB0028C 1969-04 → —

Part groups

PNC	Description
52011	Bumper Sub-assy, Rear RH
52012	Bumper Sub-assy, Rear, LH
52107	Stay Sub-assy, Rear Bumper, RH
52108	Stay Sub-assy, Rear Bumper, LH
52135	Grommet, Rear Bumper Stay
52151	Bumper Assy, Rear
52152	Bar, Rear Bumper, RH
52153	Bar, Rear Bumper, LH
52169	Pad, Rear Bumper
52171	Retainer, Rear Bumper Side, RH
52172	Retainer, Rear Bumper Side, LH
52196	Packing, Rear Bumper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
