Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

9 part groups · 3 illustrations

Illustrations

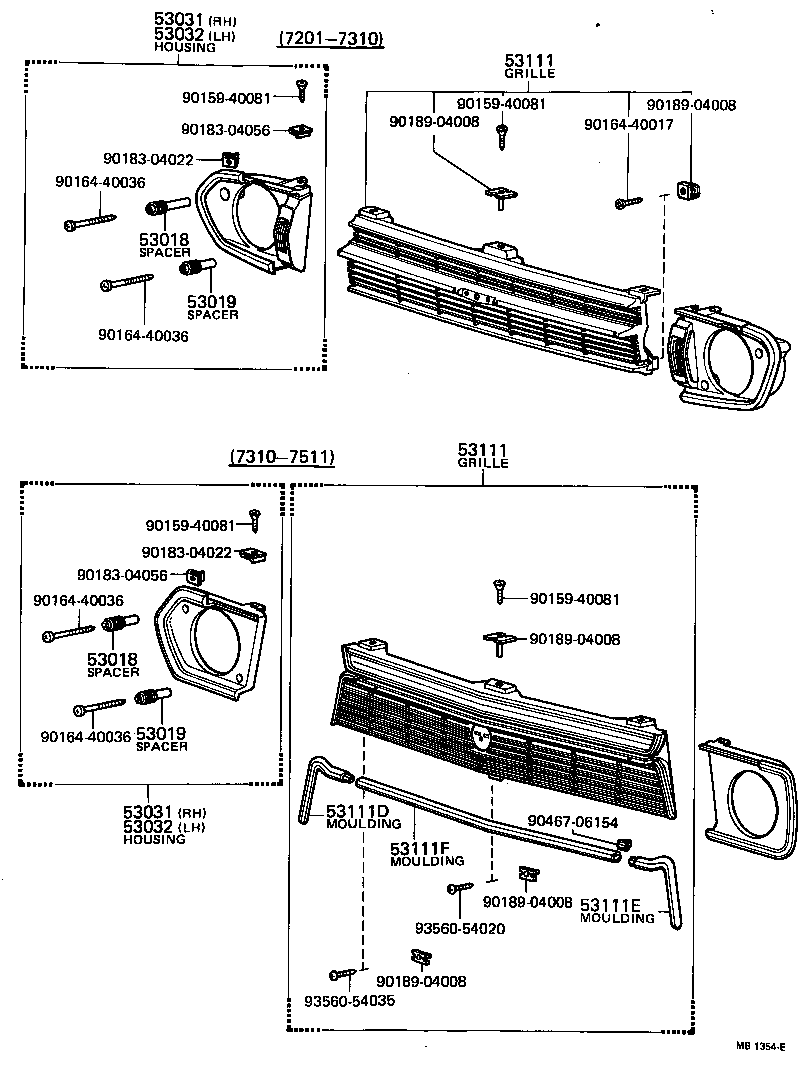

Figure MB0038C MB0038C 1969-04 → 1971-12 Figure MB1354E MB1354E 1972-01 → 1975-11 Figure MB5307A MB5307A 1975-11 → —

Part groups

PNCDescription
53018 Spacer Sub-assy, Headlamp Housing, NO.1
53019 Spacer Sub-assy, Headlamp Housing, NO.2
53031 Housing, Headlamp, RH
53032 Housing, Headlamp, LH
53111 Grille, Radiator
53111D Moulding, Radiator Grille, RH
53111E Moulding, Radiator Grille, LH
53111F Moulding, Radiator Grille, Center
53133 Clip, Headlamp Rim
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
