Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

11 part groups · 2 illustrations

Illustrations

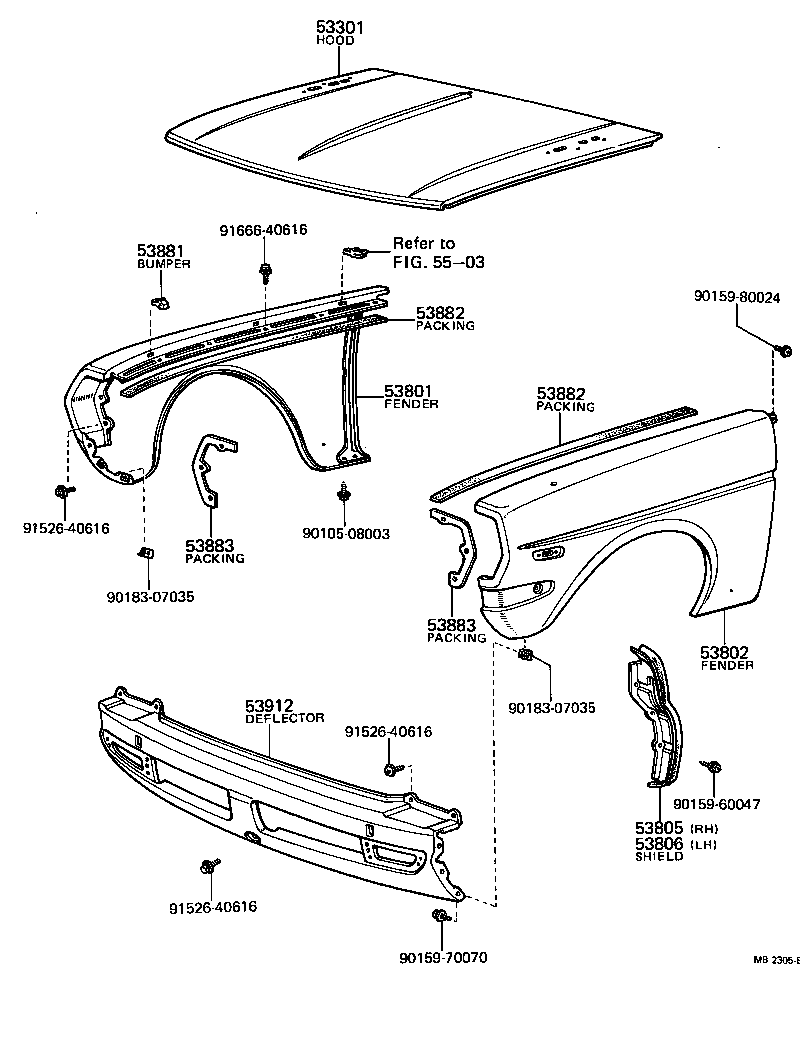

Figure MB0048G MB0048G 1969-04 → 1971-12 Figure MB2305E MB2305E 1972-01 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53357 Protector, Hood Inner
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53881 Bumper, Fender TO Hood
53882 Packing, Front Fender Main
53883 Packing, Front Fender, Front
53912 Deflector, Front Bumper Stone
58175 Shroud, Radiator, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
