Factory parts data · Europe

Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

8 part groups · 2 illustrations

Illustrations

Figure MB3788B

MB3788B 1969-04 → 1978-02

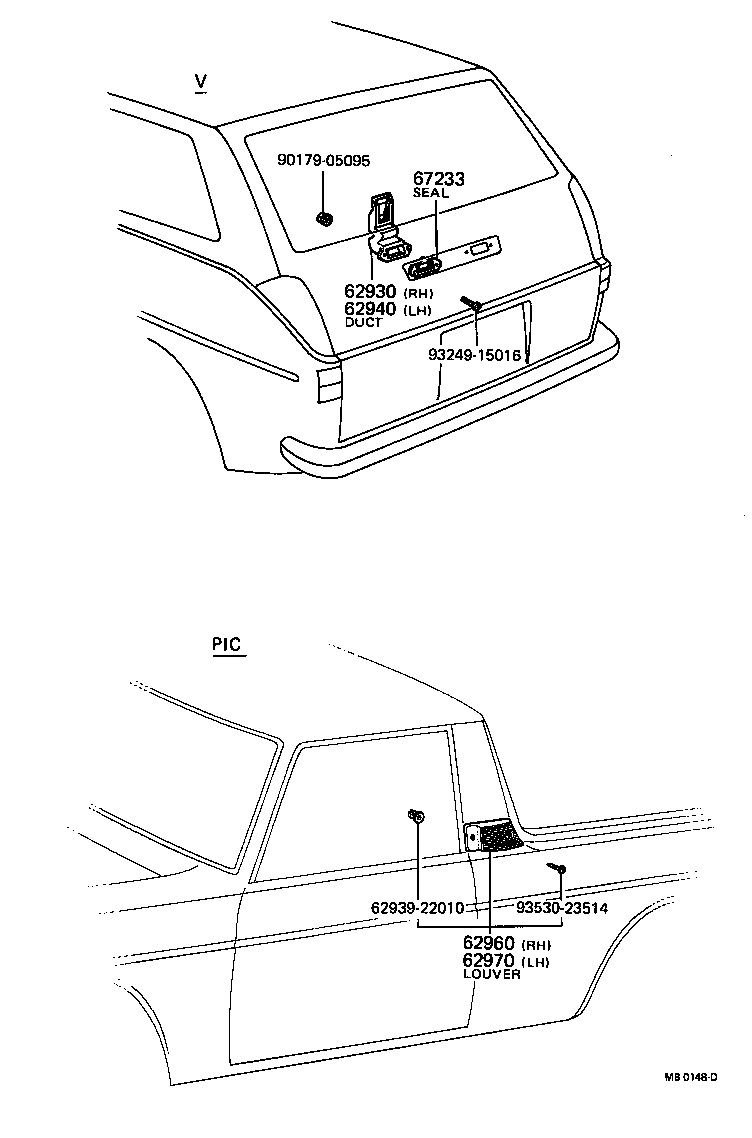

Figure MB0148D

MB0148D 1969-04 → —

Part groups

PNC	Description
62930	Duct Assy, Roof Side Vent, RH
62940	Duct Assy, Roof Side Vent, LH
62951	Louver, Vent, Inner RH
62952	Louver, Vent, Inner LH
62955	Seal, Roof Side Vent
62960	Louver Assy, Roof Side Vent, RH
62970	Louver Assy, Roof Side Vent, LH
67233	Seal, Back Door Vent

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
