Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Quarter Window

19 part groups · 3 illustrations

Illustrations

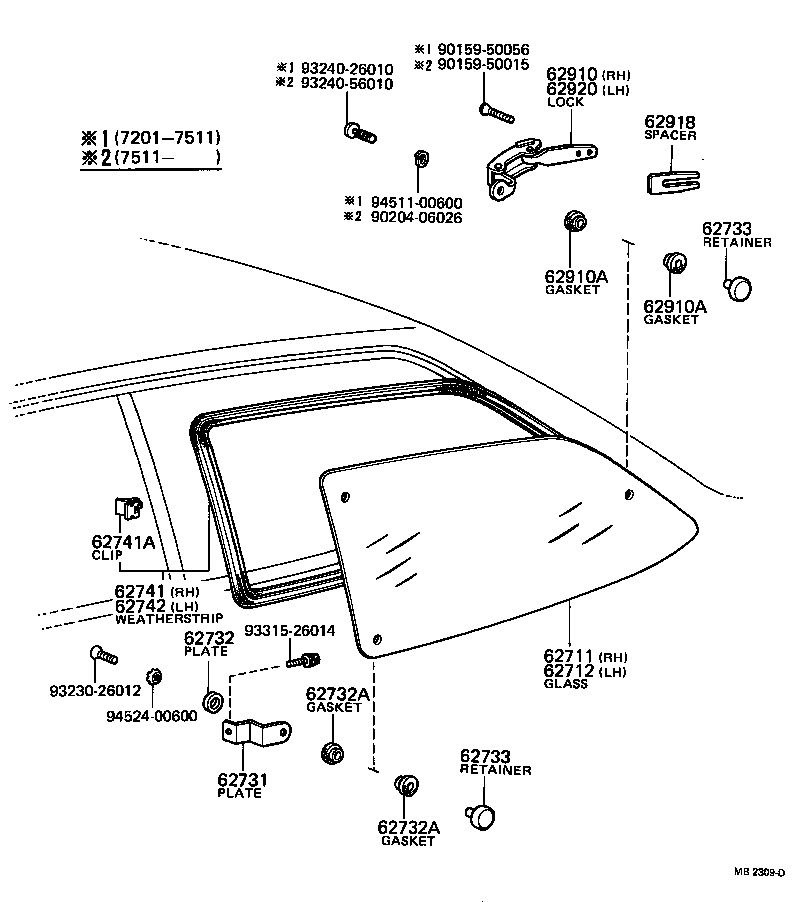

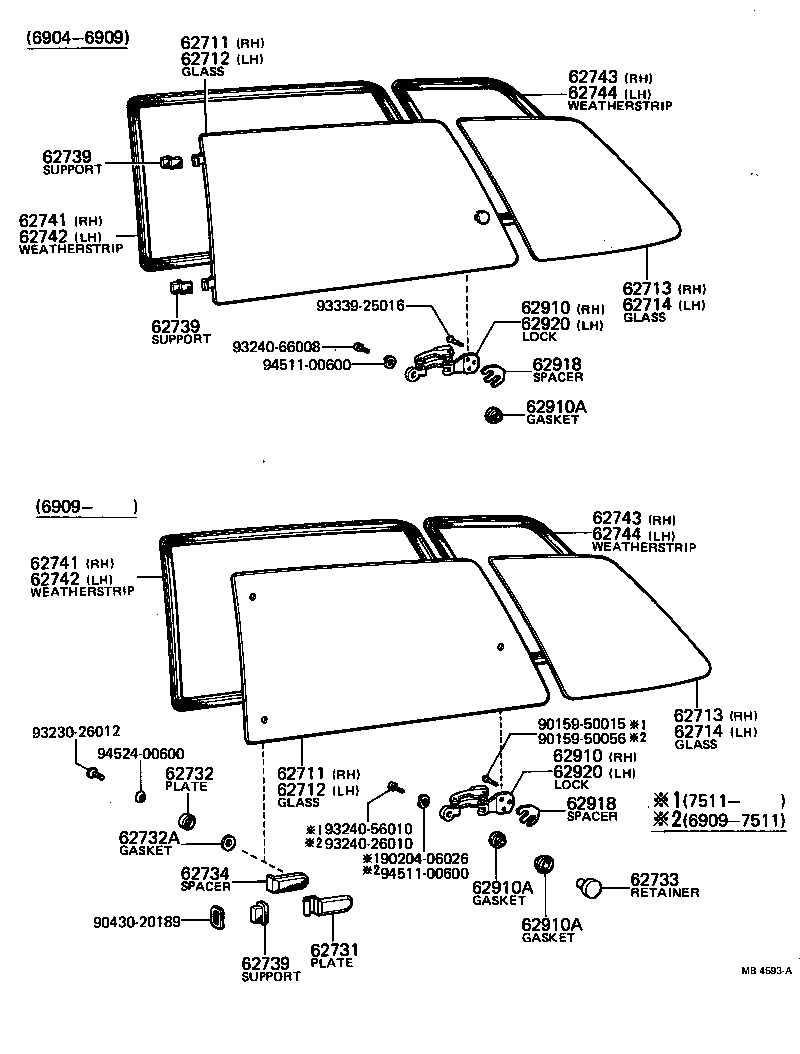

Figure MB0161F MB0161F 1969-04 → 1971-12 Figure MB2309D MB2309D 1972-01 → 1978-02 Figure MB4593A MB4593A 1969-04 → 1978-09

Part groups

PNCDescription
62711 Glass, Quarter Window, RH
62712 Glass, Quarter Window, LH
62713 Glass, Quarter Window, Rear RH
62714 Glass, Quarter Window, Rear LH
62731 Plate, Quarter OR Side Window Hinge
62732 Plate, Quarter OR Side Window Hinge Finish
62732A Gasket(FOR QUARTER WINDOW HINGE FINISH PLATE)
62733 Retainer, Quarter OR Side Window Hinge
62734 Spacer, Quarter Window Hinge
62739 Support, Quarter Window Hinge
62741 Weatherstrip, Quarter Window, RH
62741A Clip, Quarter Window Weatherstrip
62742 Weatherstrip, Quarter Window, LH
62743 Weatherstrip, Quarter Window, Rear RH
62744 Weatherstrip, Quarter Window, Rear LH
62910 Lock Assy, Quarter OR Side Window, RH
62910A Gasket(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62918 Spacer, Quarter Window Lock Support
62920 Lock Assy, Quarter Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
