Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

11 part groups · 2 illustrations

Illustrations

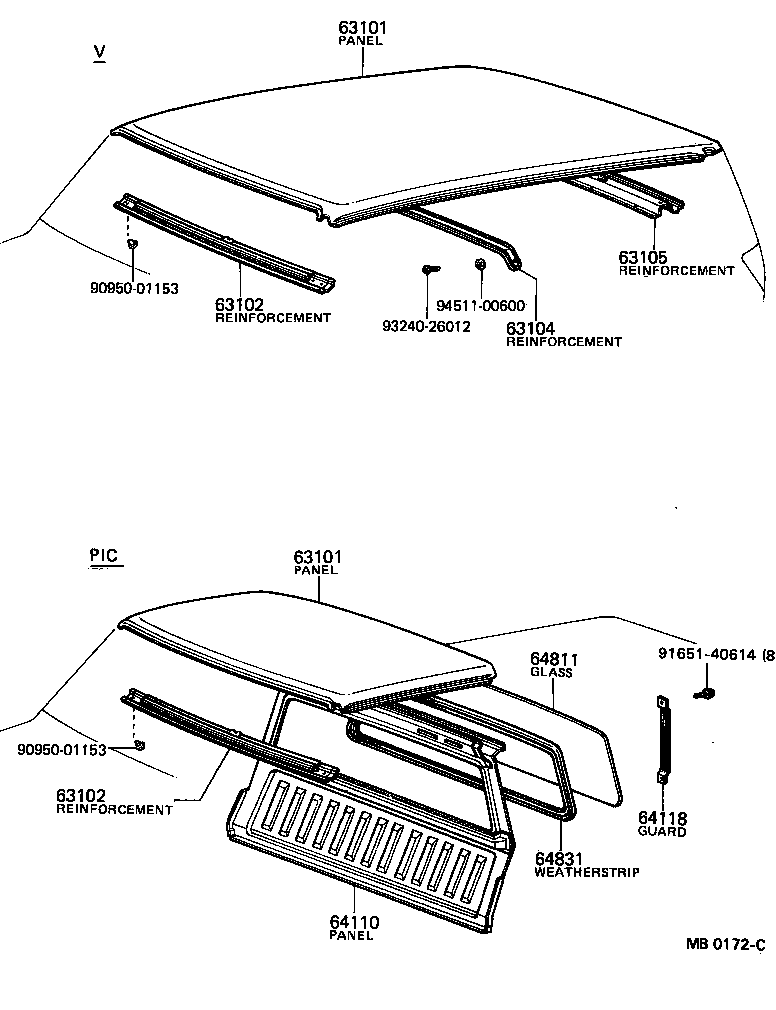

Figure MB0171C MB0171C 1969-04 → 1978-02 Figure MB0172C MB0172C 1969-04 → —

Part groups

PNCDescription
63101 Panel Sub-assy, Roof
63102 Reinforcement Sub-assy, Roof Panel, Front
63104 Reinforcement Sub-assy, Roof Panel, Center
63105 Reinforcement Sub-assy, Roof Panel, Rear
64101 Panel Sub-assy, Upper Back
64110 Panel Assy, Front Body Back
64117 Reinforcement, Upper Back Panel
64118 Guard, Back Window, NO.1
64123 Rail, Back Window Opening
64811 Glass, Back Window
64831 Weatherstrip, Back Window Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
