Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

9 part groups · 3 illustrations

Illustrations

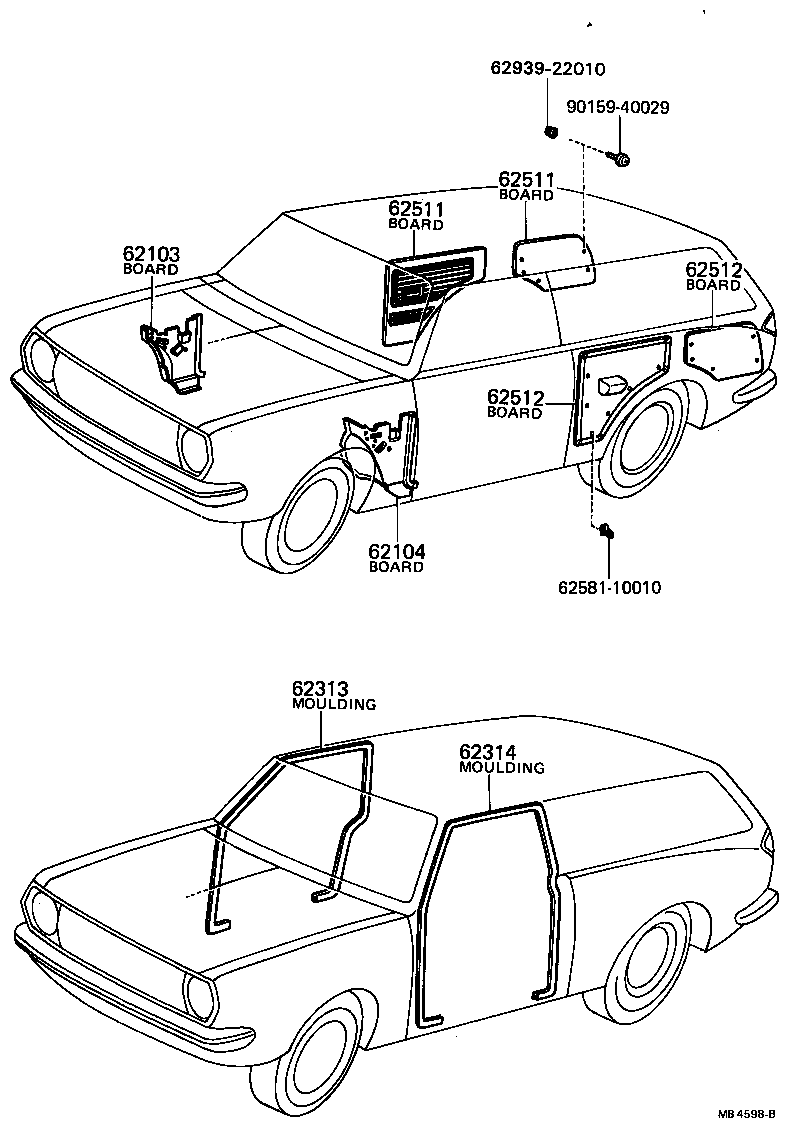

Figure MB4597A MB4597A 1969-04 → 1978-02 Figure MB4598B MB4598B 1969-04 → 1978-09 Figure MB0540D MB0540D 1969-11 → —

Part groups

PNCDescription
62103 Board Sub-assy, Cowl Side Trim, RH
62104 Board Sub-assy, Cowl Side Trim, LH
62313 Moulding, Front Door Opening Trim, RH
62314 Moulding, Front Door Opening Trim, LH
62511 Board, Quarter Inside Trim, RH
62512 Board, Quarter Inside Trim, LH
62531 Cover, Wheel House Trim, RH
62532 Cover, Wheel House Trim, LH
62535 Pad, Quarter Wheel House Trim
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
