Toyota TOYOTA1000
1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe
Discontinued model
Data version 1988-08

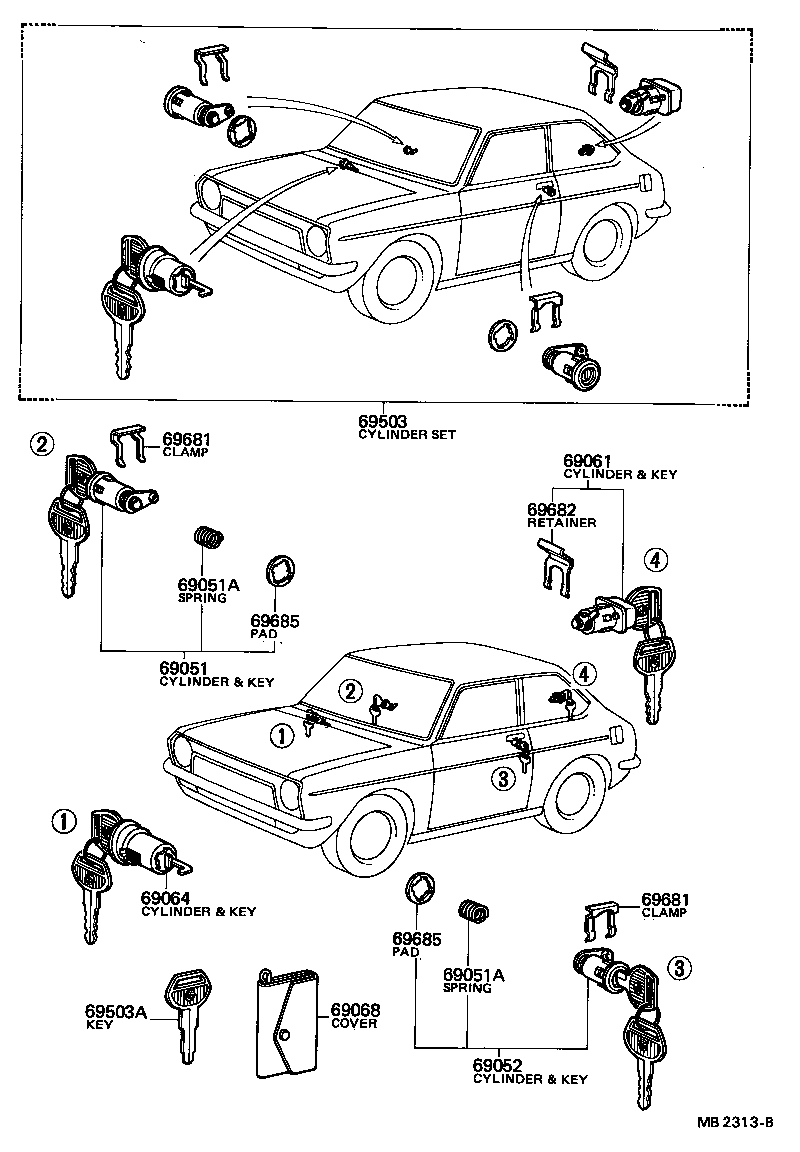

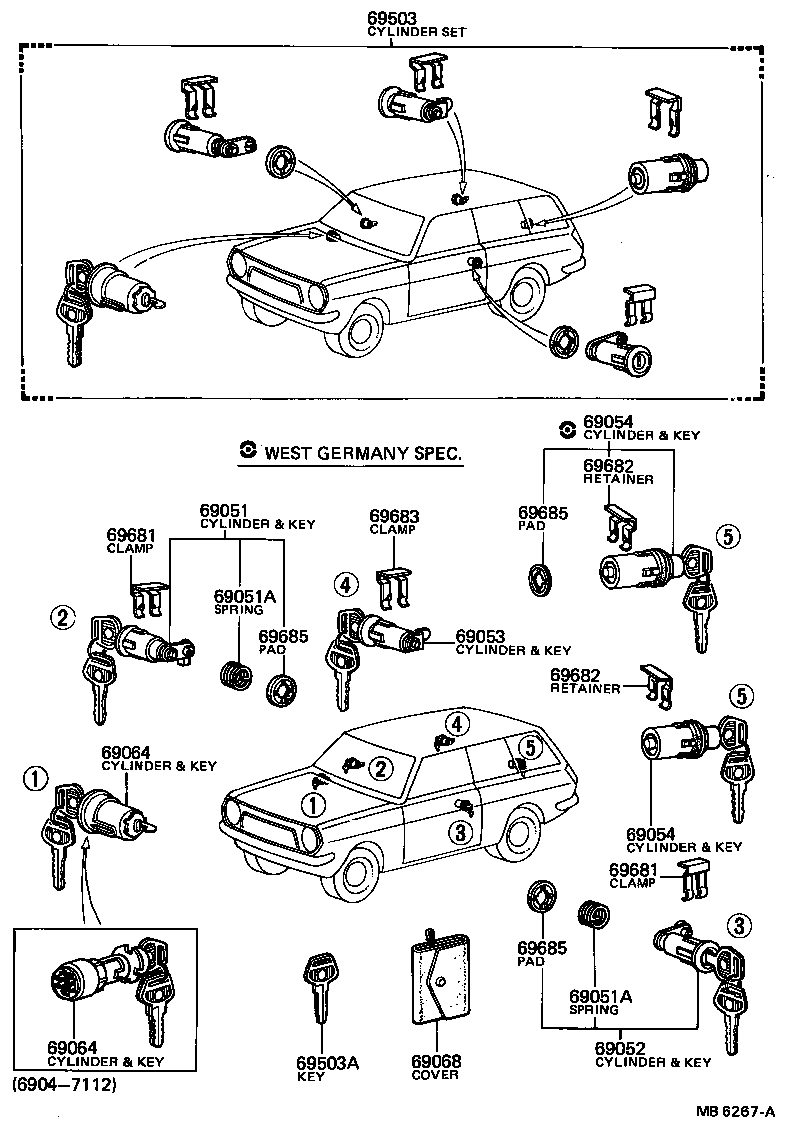

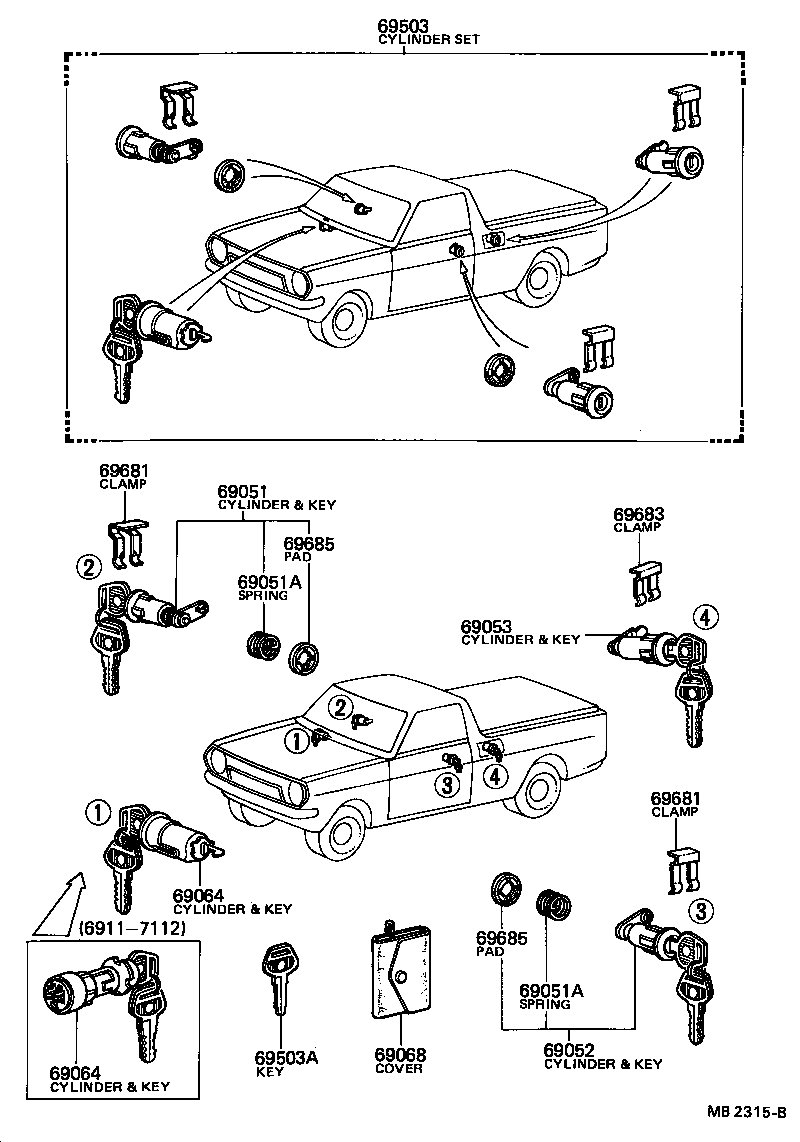

Lock Cylinder Set
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69051A | Spring, Door Lock Cylinder |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69053 | Cylinder & Key Set, Fuel Inlet Lock |
| 69054 | Cylinder & Key Set, Back Door Lock |
| 69061 | Cylinder & Key Set, Luggage Lock |
| 69064 | Cylinder & Key Set, Ignition Switch Lock |
| 69068 | Cover Sub-assy, Key |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69681 | Clamp, Door Lock Cylinder & Sleeve |
| 69682 | Retainer, Lock Cylinder |
| 69683 | Clamp, Fuel Lock Cylinder |
| 69685 | Pad, Lock Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
