Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

19 part groups · 2 illustrations

Illustrations

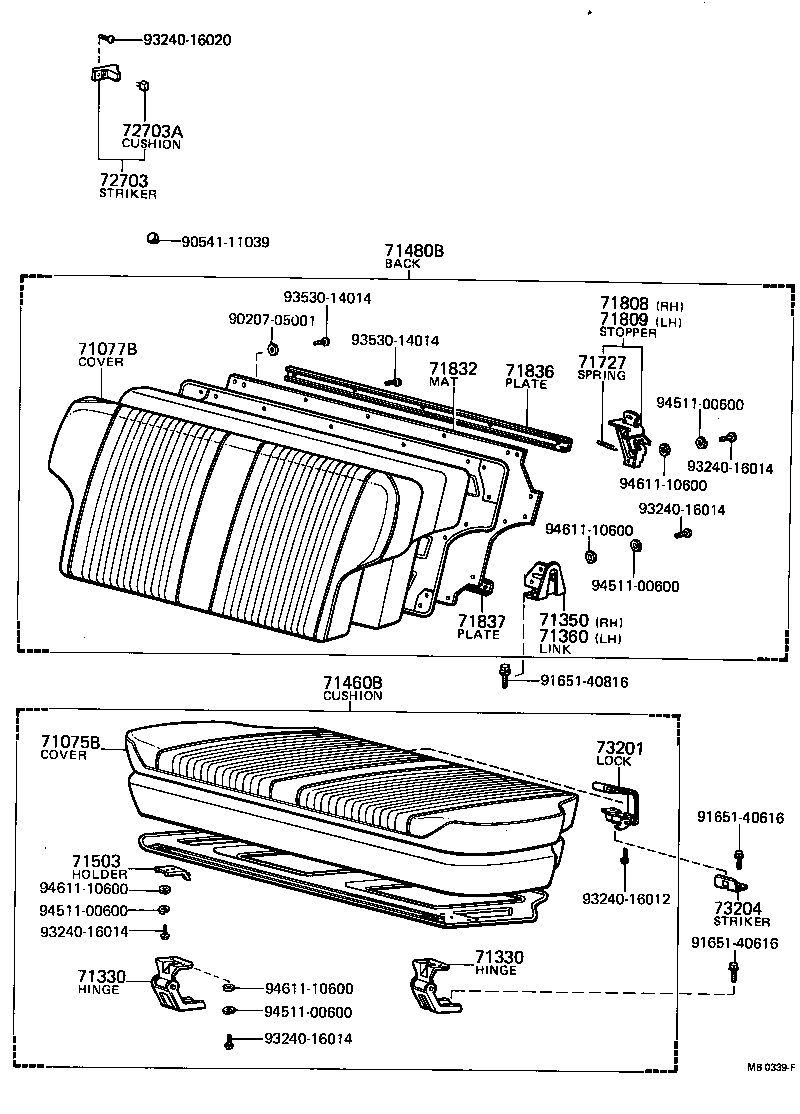

Figure MB4599A MB4599A 1969-04 → 1978-02 Figure MB0339F MB0339F 1969-04 → 1978-09

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71330 Hinge Assy, Rear Seat Cushion
71350 Link Assy, Rear Seatback Cushion, RH
71360 Link Assy, Rear Seatback Cushion, LH
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71503 Holder Sub-assy, Rear Seat Cushion
71691 Bracket, Rear Seat Cushion Set
71727 Spring, Rear Seatback Locking
71808 Stopper Sub-assy, Rear Seatback, RH
71809 Stopper Sub-assy, Rear Seatback, LH
71832 Carpet OR Mat, Rear Seatback
71836 Plate, Rear Seatback Carpet OR Mat Support, Upper
71837 Plate, Rear Seatback Mat Support, Lower
72703 Striker Sub-assy, Rear Seatback Stopper
72703A Cushion, Rear Seatback Stopper Striker
73201 Lock Sub-assy, Rear Seat Cushion
73204 Striker Sub-assy, Rear Seat Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
