Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

10 part groups · 2 illustrations

Illustrations

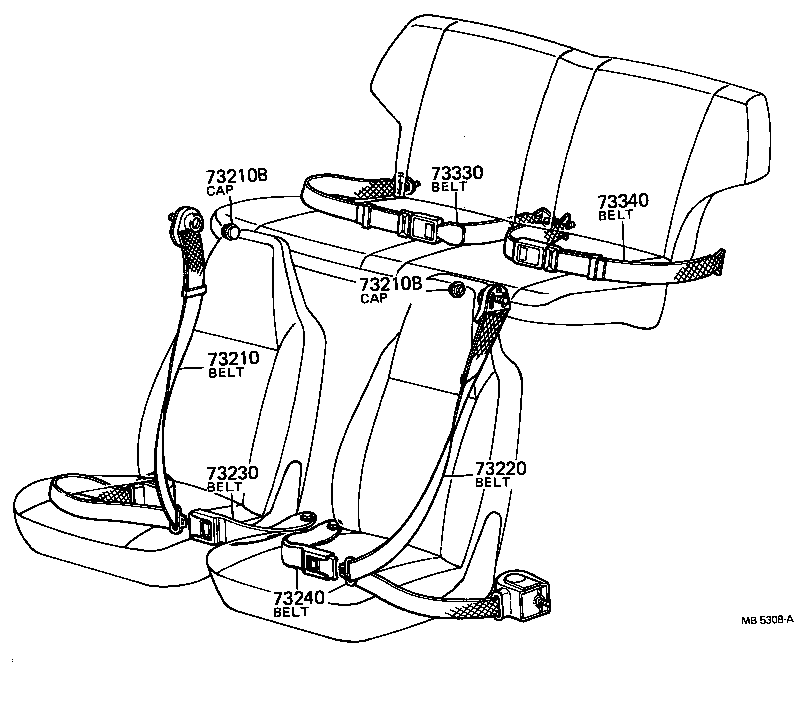

Figure MB2217B MB2217B 1969-04 → 1975-11 Figure MB5308A MB5308A 1975-11 → —

Part groups

PNCDescription
58856 Holder, Seat Belt Buckle
73110 Belt Assy, Front Seat 3 Point Type, RH
73120 Belt Assy, Front Seat 3 Point Type, LH
73210 Belt Assy, Front Seat Outer, RH
73210B Cap (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
