Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

10 part groups · 4 illustrations

Illustrations

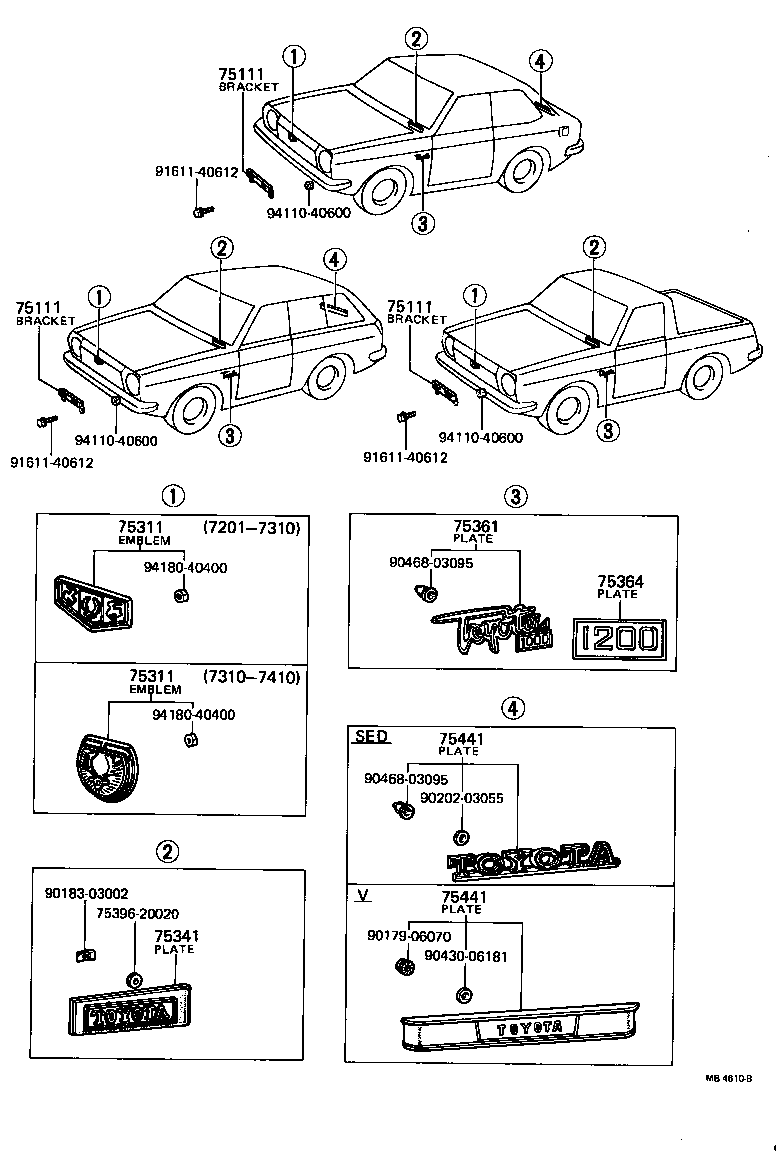

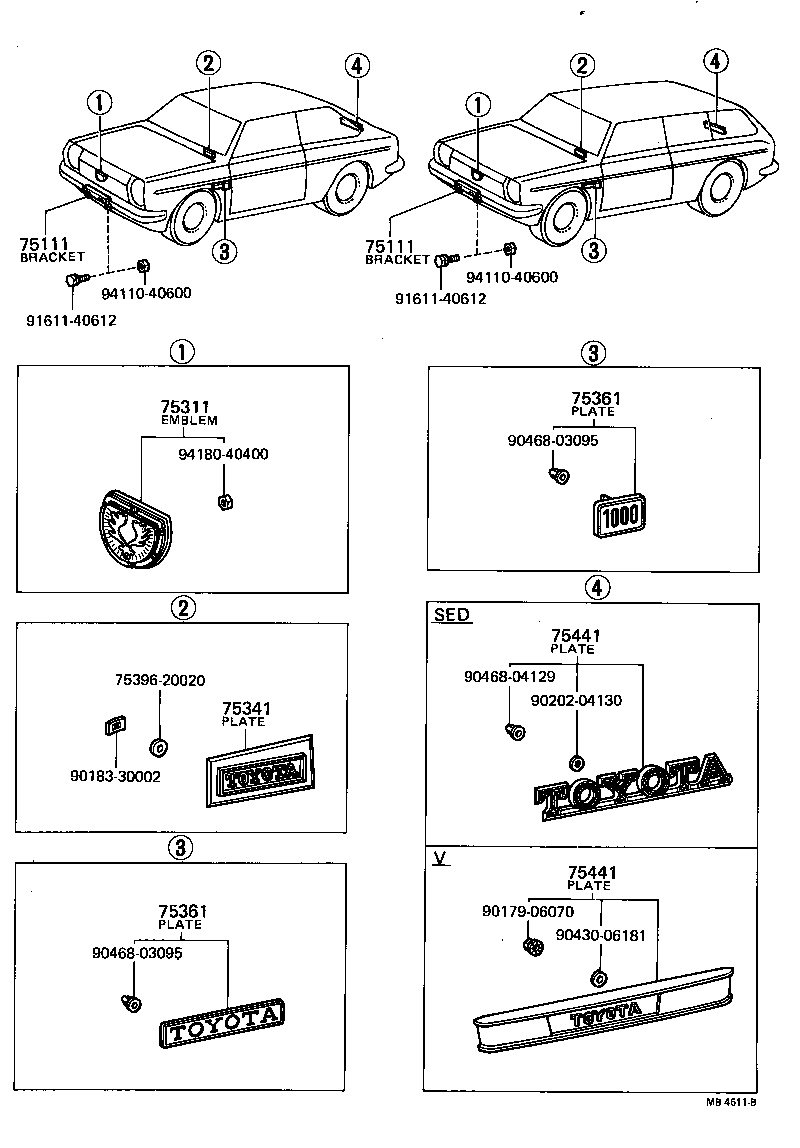

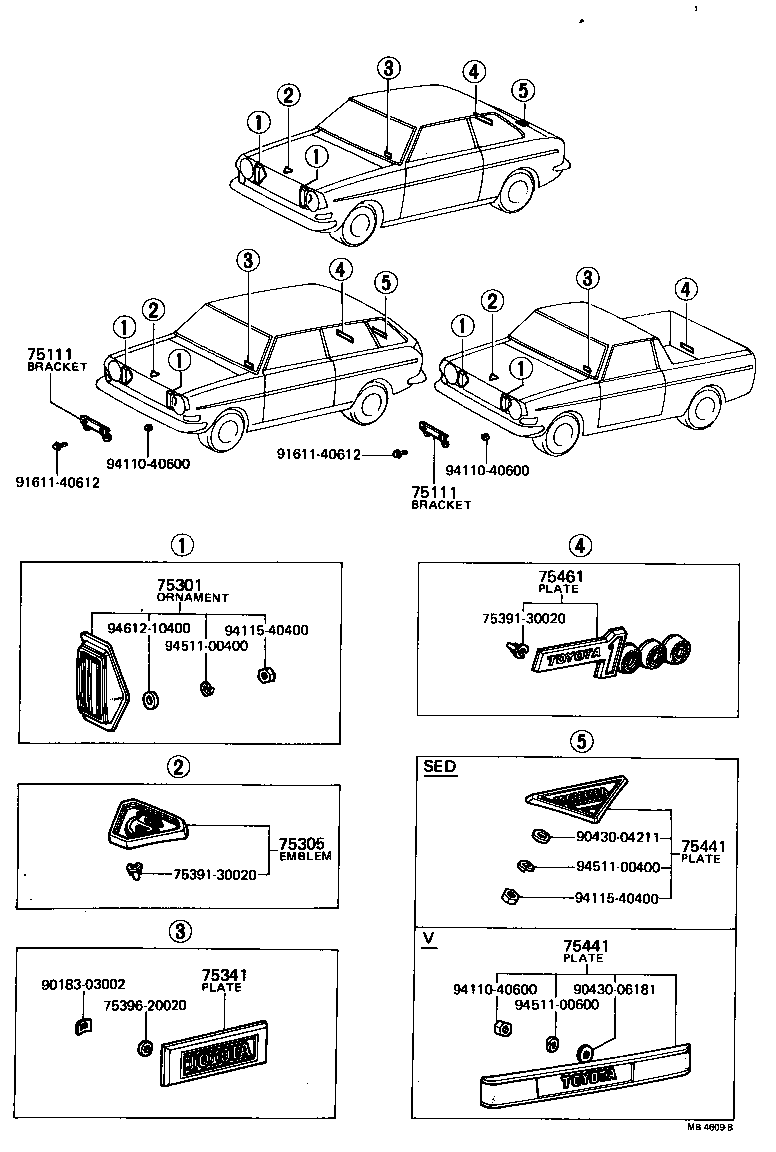

Figure MB4608B MB4608B 1969-04 → 1970-10 Figure MB4609B MB4609B 1970-10 → 1971-12 Figure MB4610B MB4610B 1972-01 → 1974-10 Figure MB4611B MB4611B 1974-10 → —

Part groups

PNCDescription
75111 Bracket, Front License Plate
75301 Ornament, Radiator Grille (OR FRONT PANEL)
75305 Emblem, Hood
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312 Base, Radiator Grille Emblem
75341 Plate, Instrument Panel Name, NO.1
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75364 Plate, Front Fender Name, NO.2 (GRADE MARK)
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
