Fuel Tank & Tube

42 part groups · 13 illustrations

Illustrations

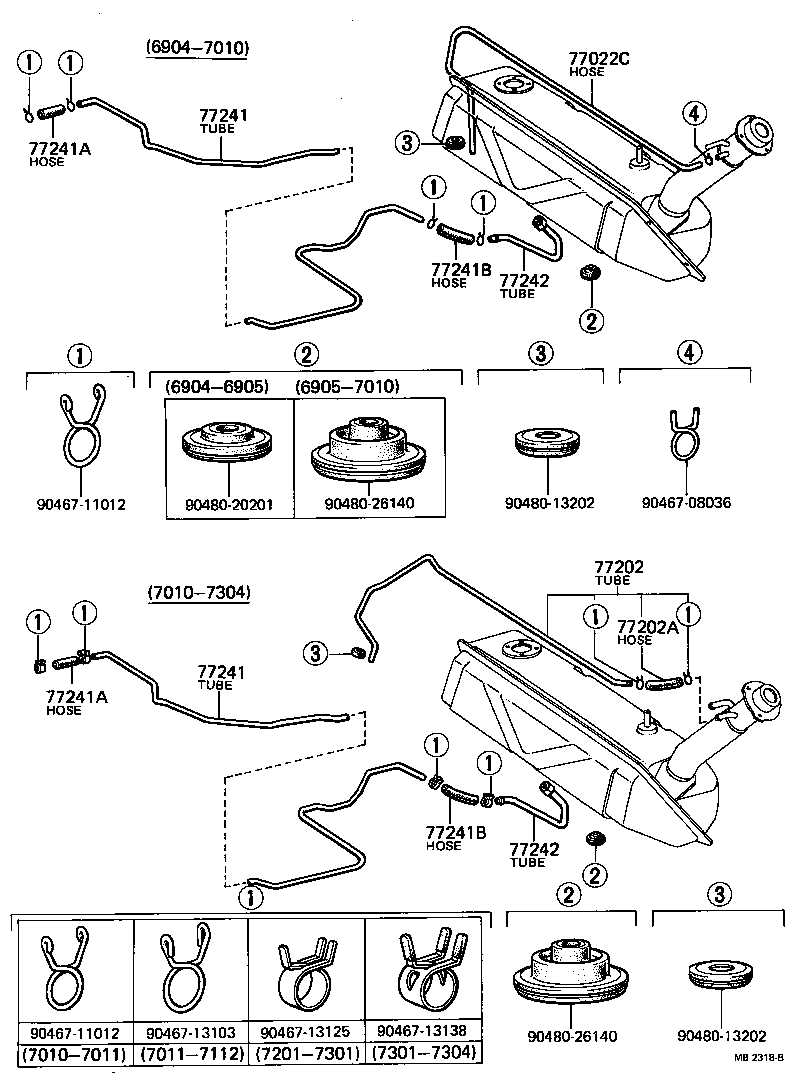

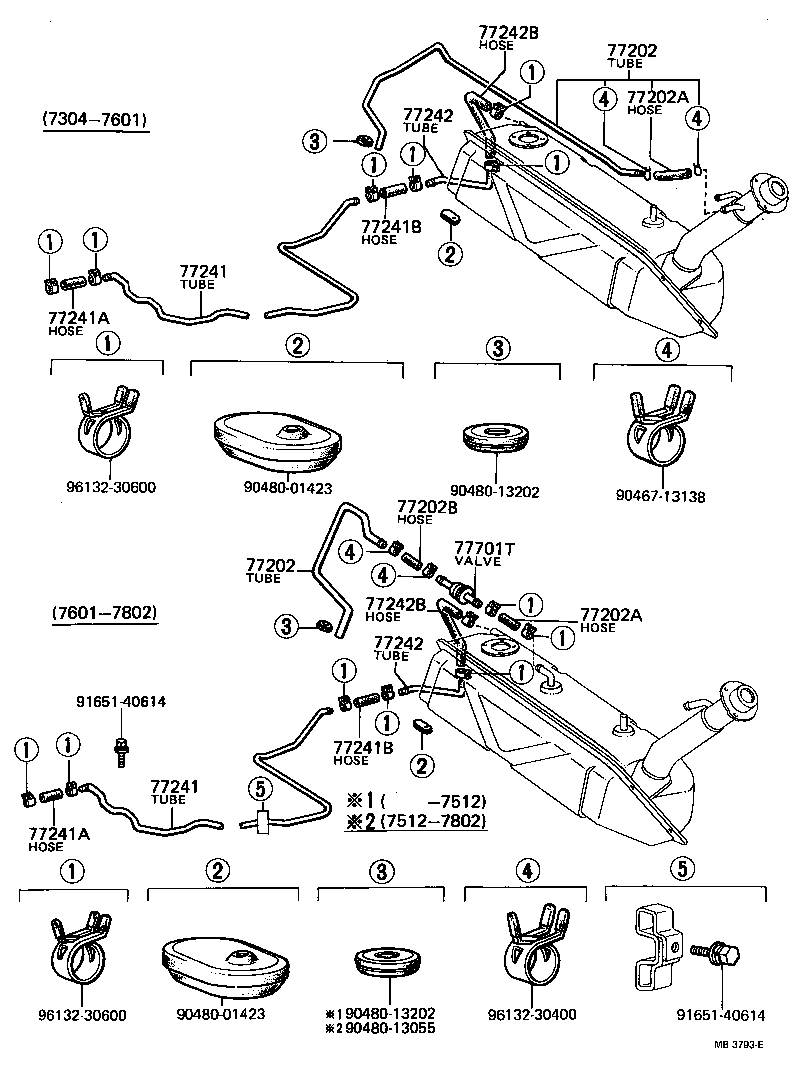

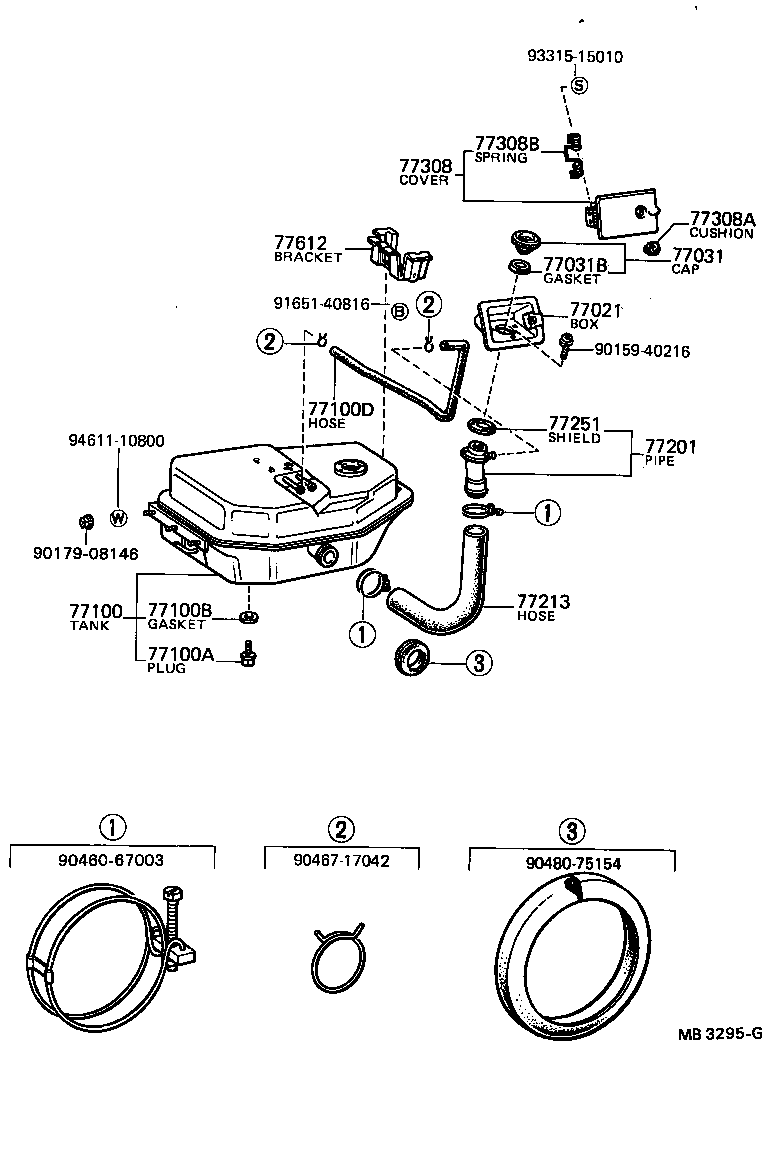

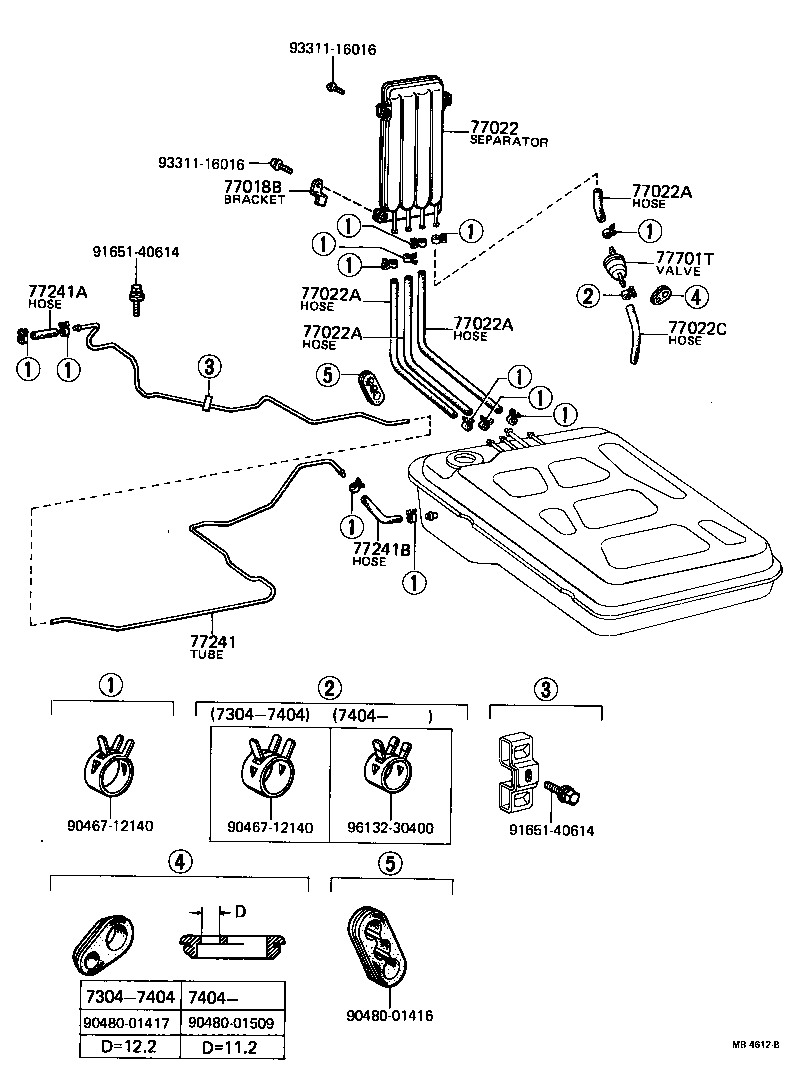

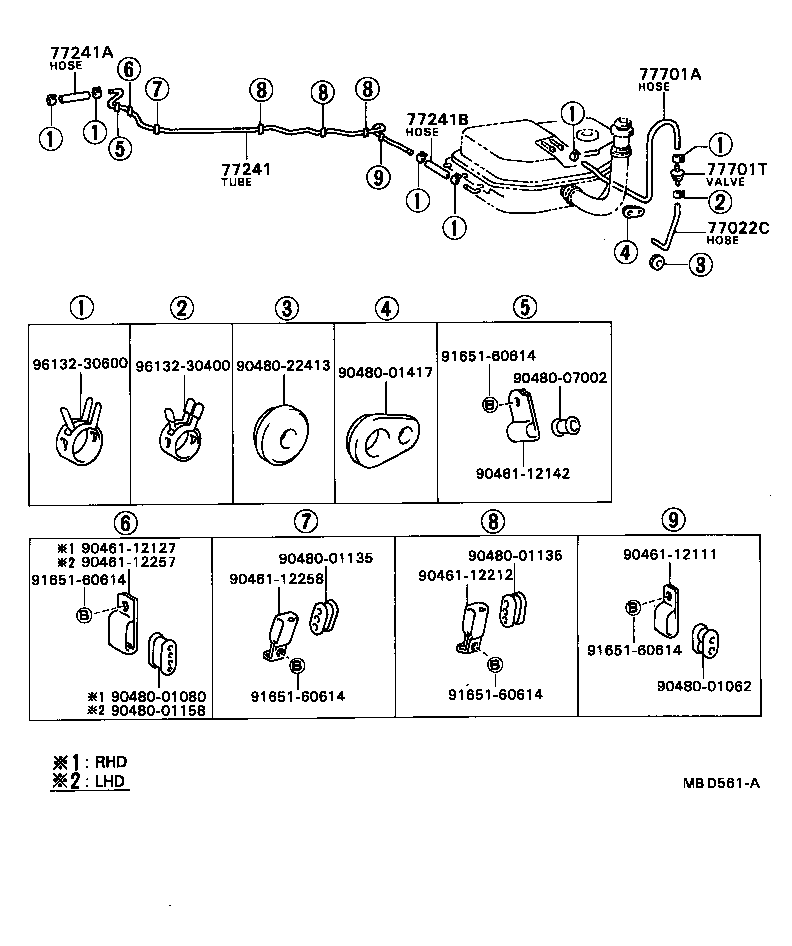

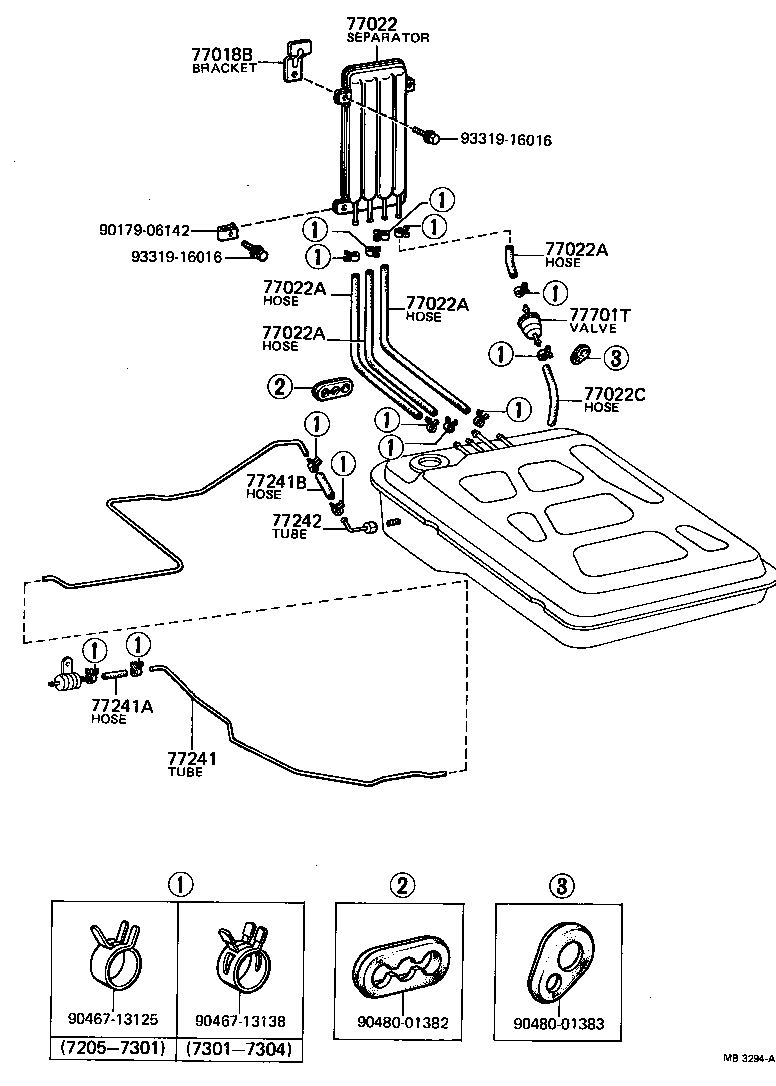

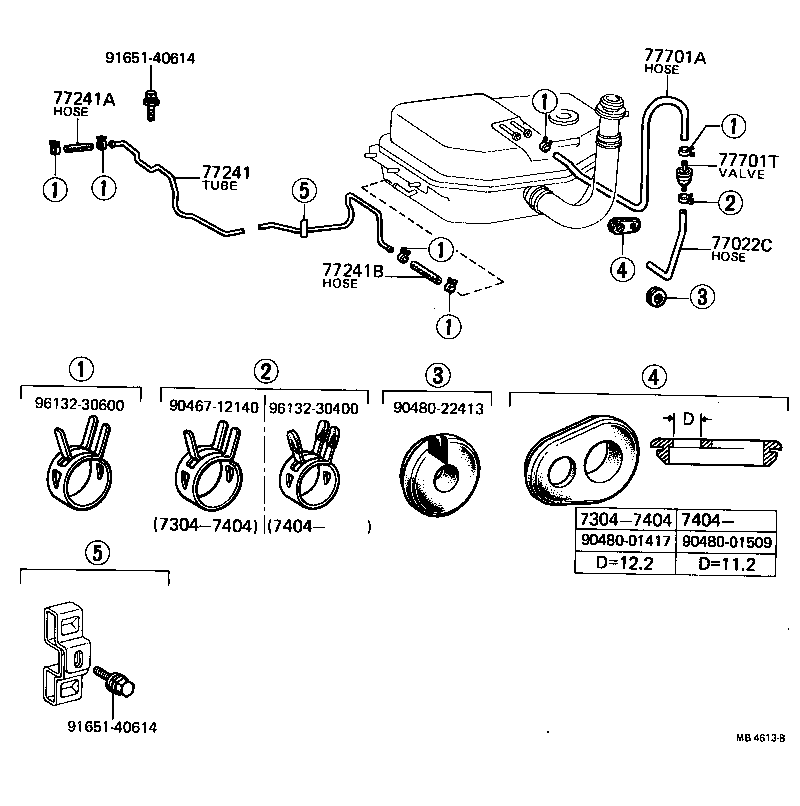

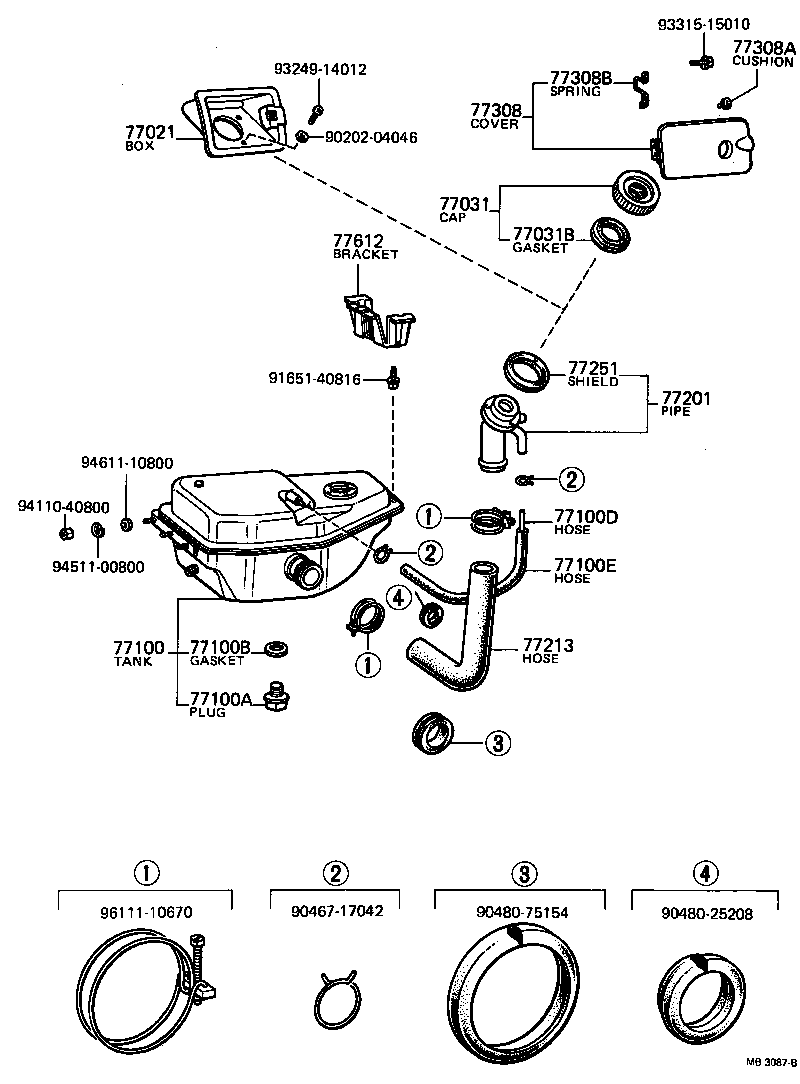

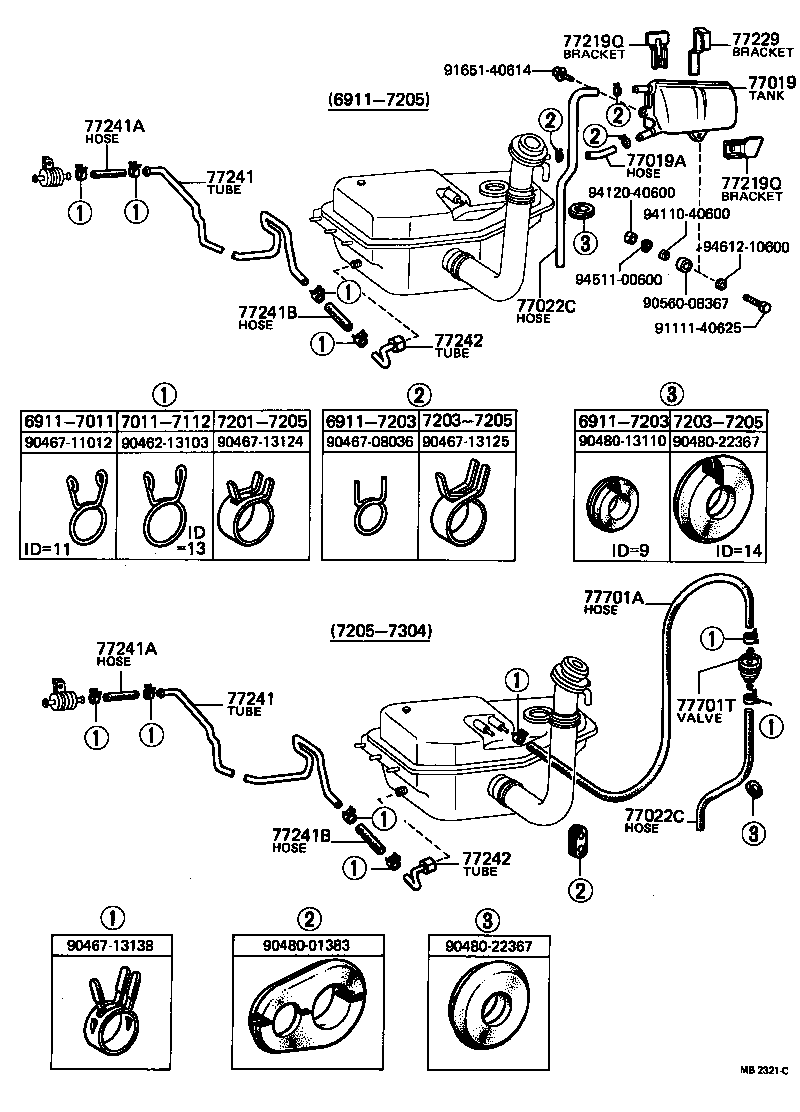

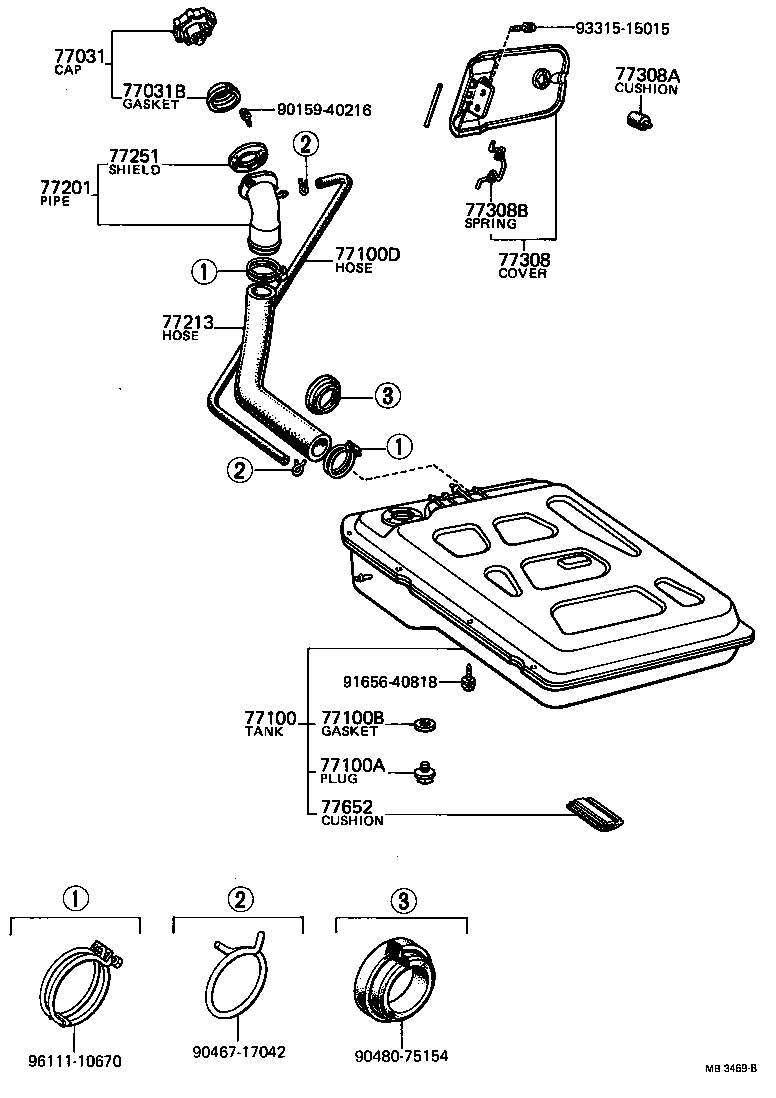

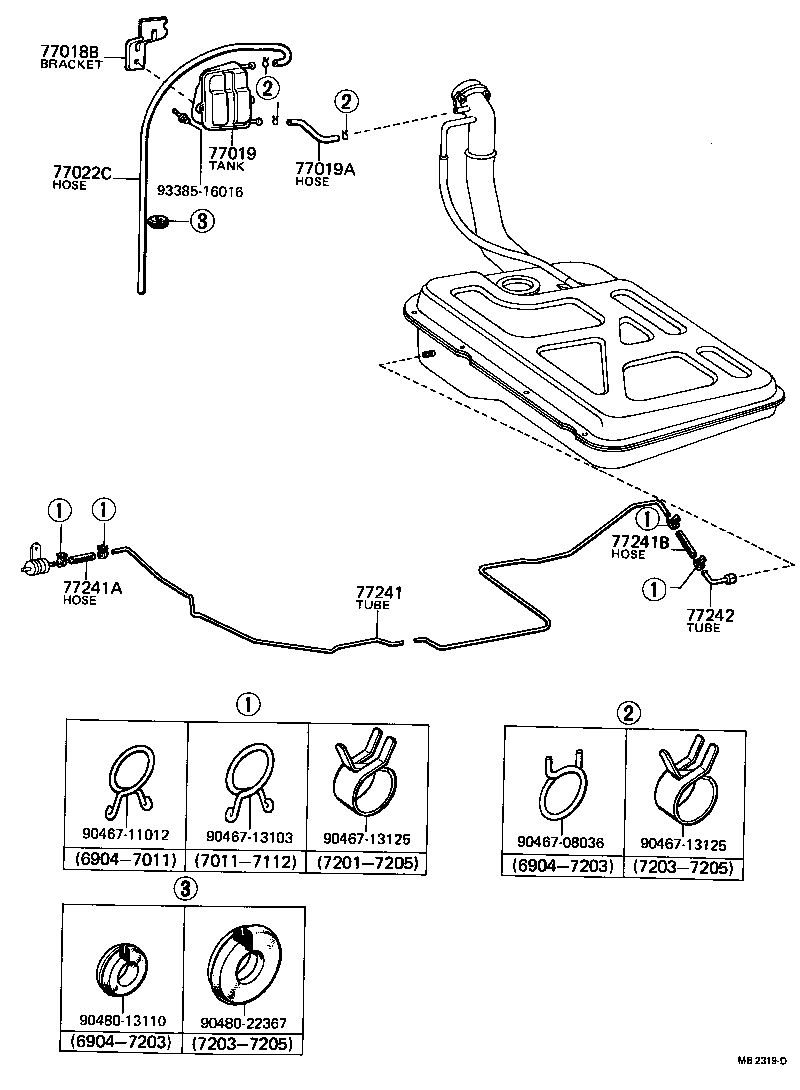

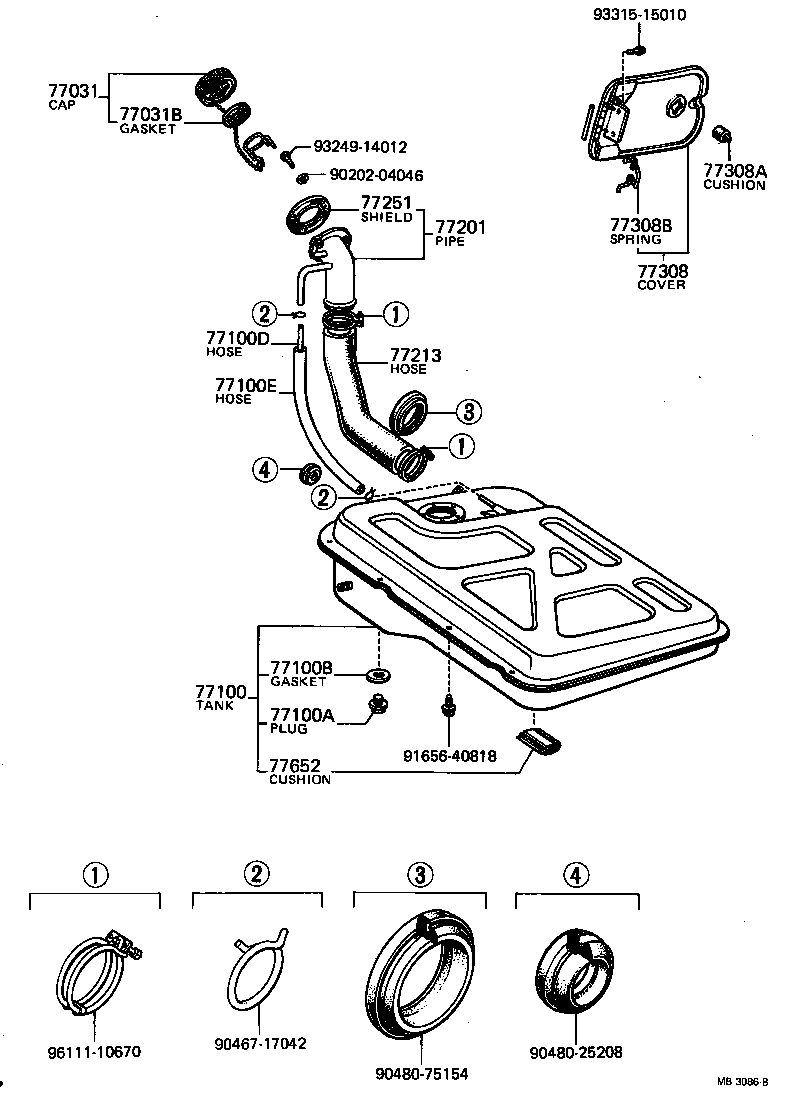

Figure MB3235D MB3235D 1969-04 → 1978-02 Figure MB2318B MB2318B 1969-04 → 1973-04 Figure MB3793E MB3793E 1973-04 → 1978-02 Figure MB3086B MB3086B 1969-04 → 1972-05 Figure MB3469B MB3469B 1972-05 → 1978-09 Figure MB2319D MB2319D 1969-04 → 1972-05 Figure MB3294A MB3294A 1972-05 → 1973-04 Figure MB4612B MB4612B 1973-04 → 1978-09 Figure MB3087B MB3087B 1969-11 → 1972-05 Figure MB3295G MB3295G 1972-05 → — Figure MB2321C MB2321C 1969-11 → 1973-04 Figure MB4613B MB4613B 1973-04 → 1982-01 Figure MBD561A MBD561A 1982-01 → —

Part groups

PNCDescription
77018B Bracket, Vapour Separator
77019 Tank Sub-assy, Fuel Expansion
77019A Hose, Fuel, NO.1(FOR FUEL EXPANSION TANK)
77021 Box Assy, Fuel Tank Inlet
77022 Separator Sub-assy, Fuel Evaporative
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77022C Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR)
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77100E Hose, Fuel, NO.2(FOR FUEL TANK)
77201 Pipe Sub-assy, Fuel Tank Inlet
77202 Tube Sub-assy, Breather
77202A Hose, Fuel, NO.1 (FOR BREATHER TUBE)
77202B Hose, Fuel, NO.2 (FOR BREATHER TUBE)
77213 Hose, Fuel Tank Sub Inlet
77219Q Bracket, Expansion Tank
77229 Bracket, Fuel Tank Vent Chamber
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77251 Shield, Fuel Tank, Inlet, NO.1
77302 Retainer, Fuel Tank Cap
77308 Cover Sub-assy, Fuel Inlet Box
77308A Cushion(FOR FUEL INLET BOX COVER)
77308B Spring, Torsion(FOR FUEL INLET BOX COVER)
77311 Cap, Fuel Tank
77322 Knob, Fuel Tank Cap
77606 Protector Sub-assy, Fuel Tank, NO.1
77612 Bracket Sub-assy, Fuel Tank
77643 Retainer, Fuel Tank Protector
77647 Retainer, Fuel Tank Protector, Side
77652 Cushion, Fuel Tank, NO.1
77653 Shield, Fuel Tank Drain Plug
77654 Cushion, Fuel Tank, NO.2
77701A Hose, Fuel, NO.1 (FOR BREATHER VALVE)
77701T Valve, Check (FOR MAIN FUEL TANK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
