Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

13 part groups · 2 illustrations

Illustrations

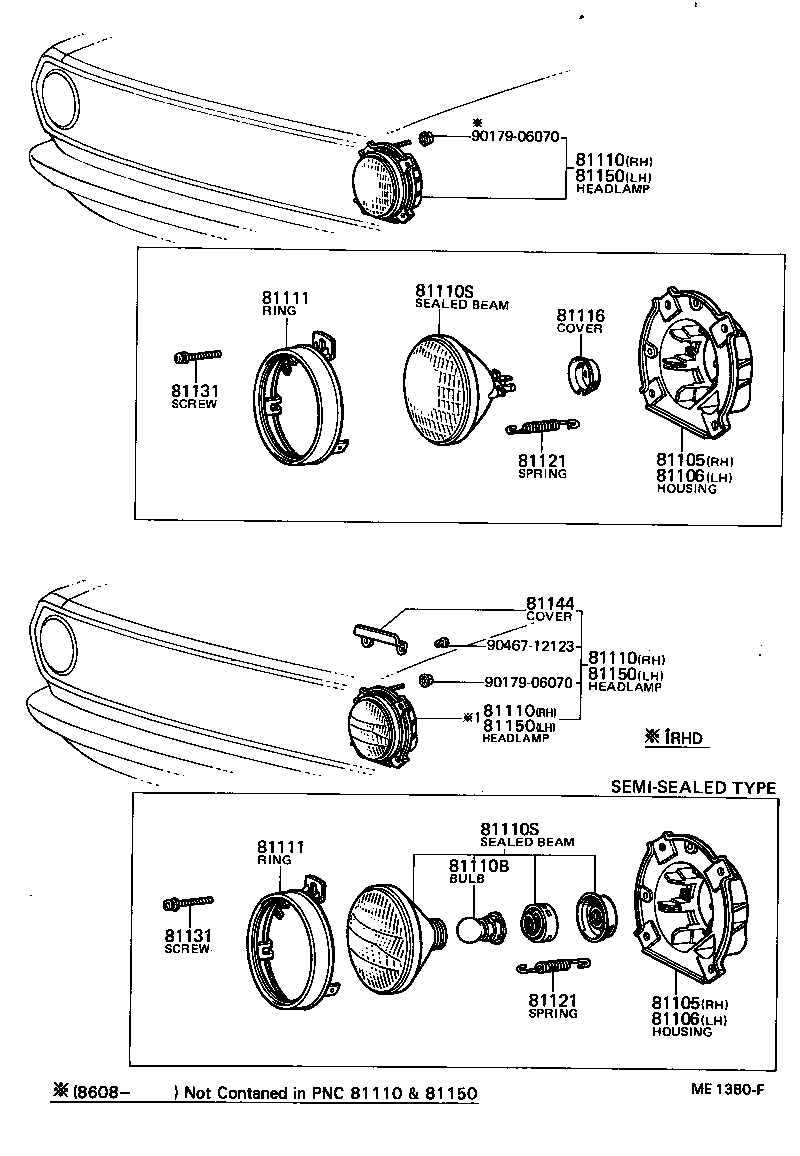

Figure ME0098E ME0098E 1969-04 → 1971-12 Figure ME1380F ME1380F 1972-01 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111 Ring, Sealed Beam Retaining
81113 Ring, Sealed Beam Mounting, NO.1 RH
81116 Cover, Sealed Beam Unit
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
