Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

11 part groups · 2 illustrations

Illustrations

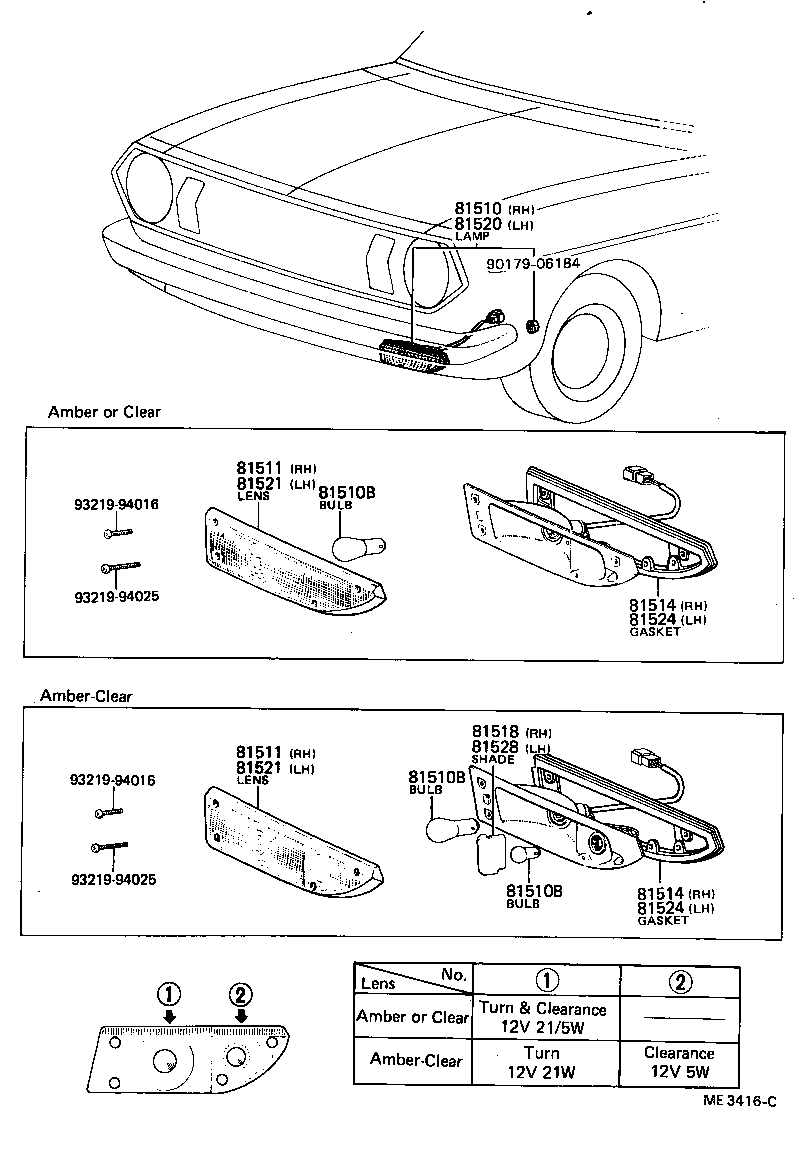

Figure ME3415A ME3415A 1969-04 → 1971-12 Figure ME3416C ME3416C 1972-01 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81514 Gasket, Front Turn Signal Lamp Body, RH
81516 Rim, Front Turn Signal Lamp, RH
81518 Shade, Front Turn Signal Lamp, RH
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
81524 Gasket, Front Turn Signal Lamp Body, LH
81526 Rim, Front Turn Signal Lamp, LH
81528 Shade, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
