Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

15 part groups · 6 illustrations

Illustrations

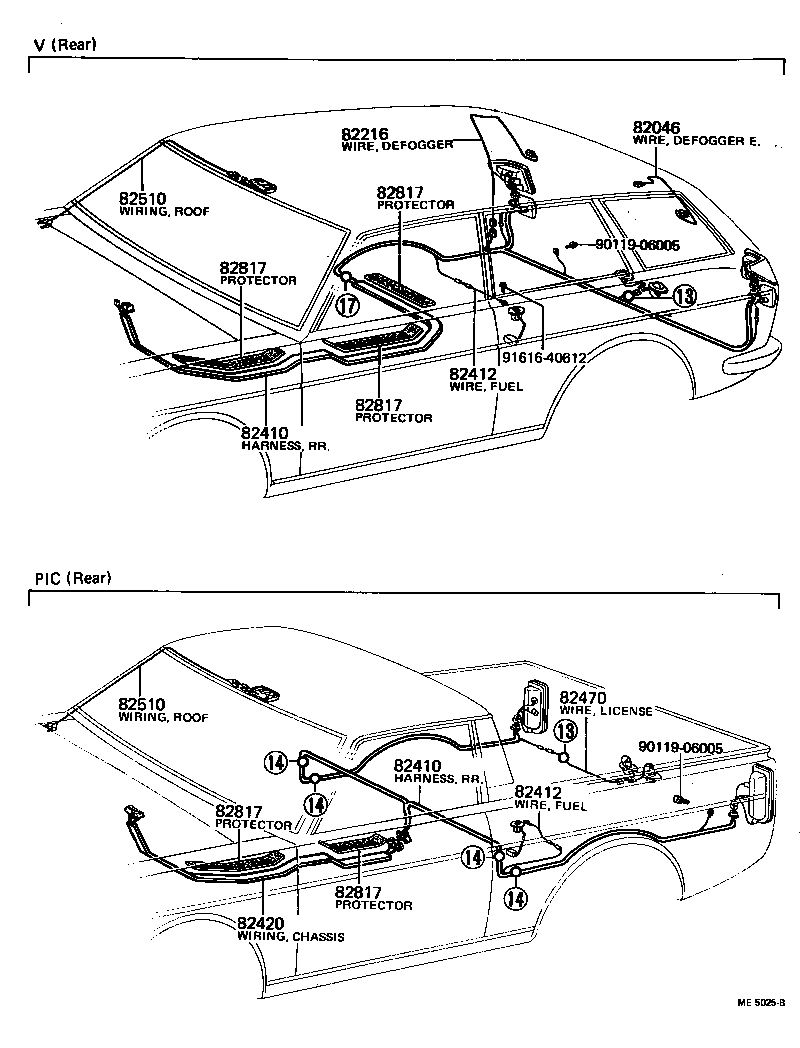

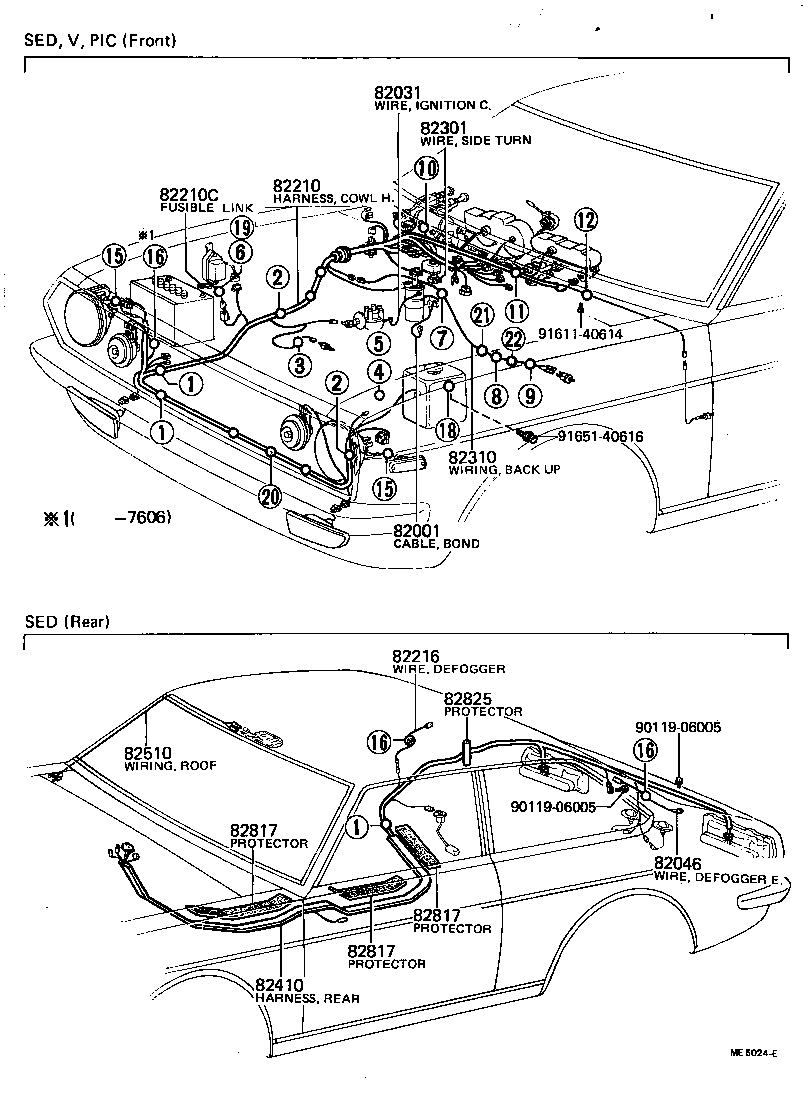

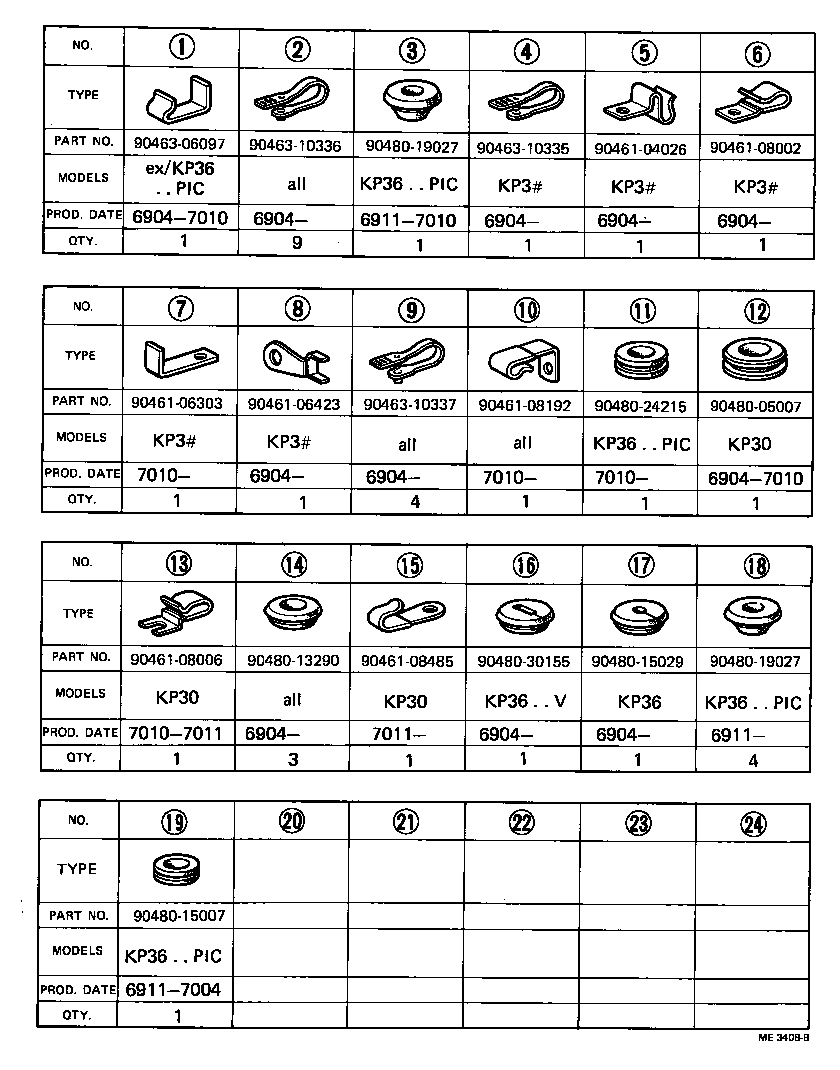

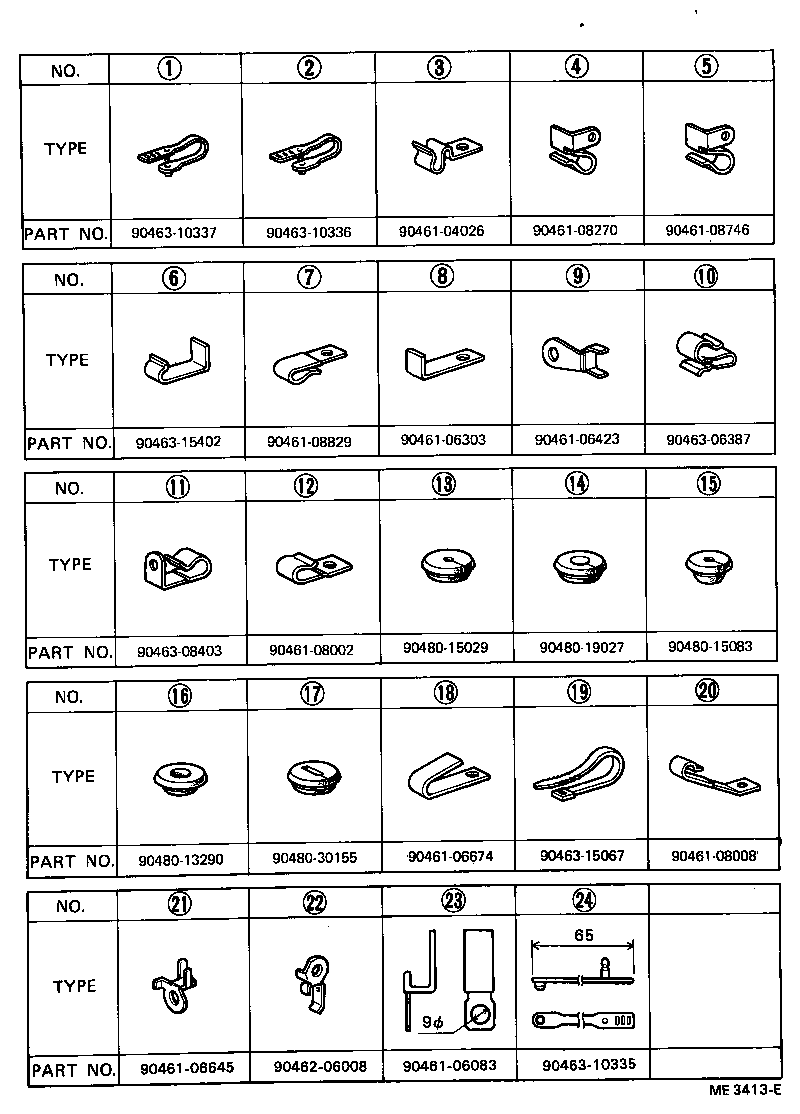

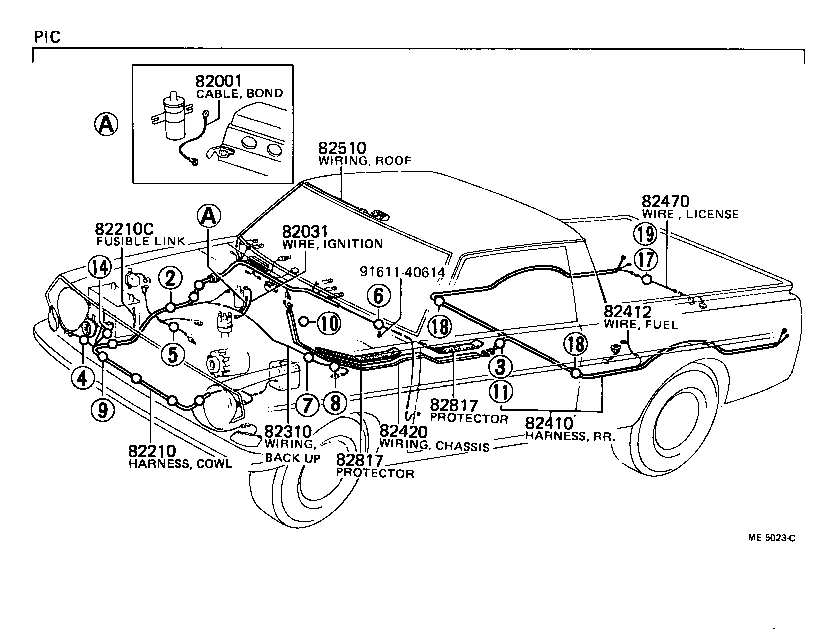

Figure ME5022A ME5022A 1969-04 → 1971-12 Figure ME5023C ME5023C 1969-11 → 1971-12 Figure ME3408B ME3408B 1969-04 → 1971-12 Figure ME5024E ME5024E 1972-01 → — Figure ME5025B ME5025B 1972-01 → — Figure ME3413E ME3413E 1972-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82031 Wire Sub-assy, Ignition Coil
82046 Wire Sub-assy, Rear Window Defogger Earth
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82216 Wire, Rear Window Defogger
82301 Wire Sub-assy, Side Turn Signal Relay
82310 Wiring Assy, TO Back UP Lamp Switch
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82420 Wiring Assy, Chassis
82470 Wire Assy, License Lamp Feed
82510 Wiring Assy, Roof
82817 Protector, Wiring Harness, NO.1
82825 Protector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
