Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

14 part groups · 2 illustrations

Illustrations

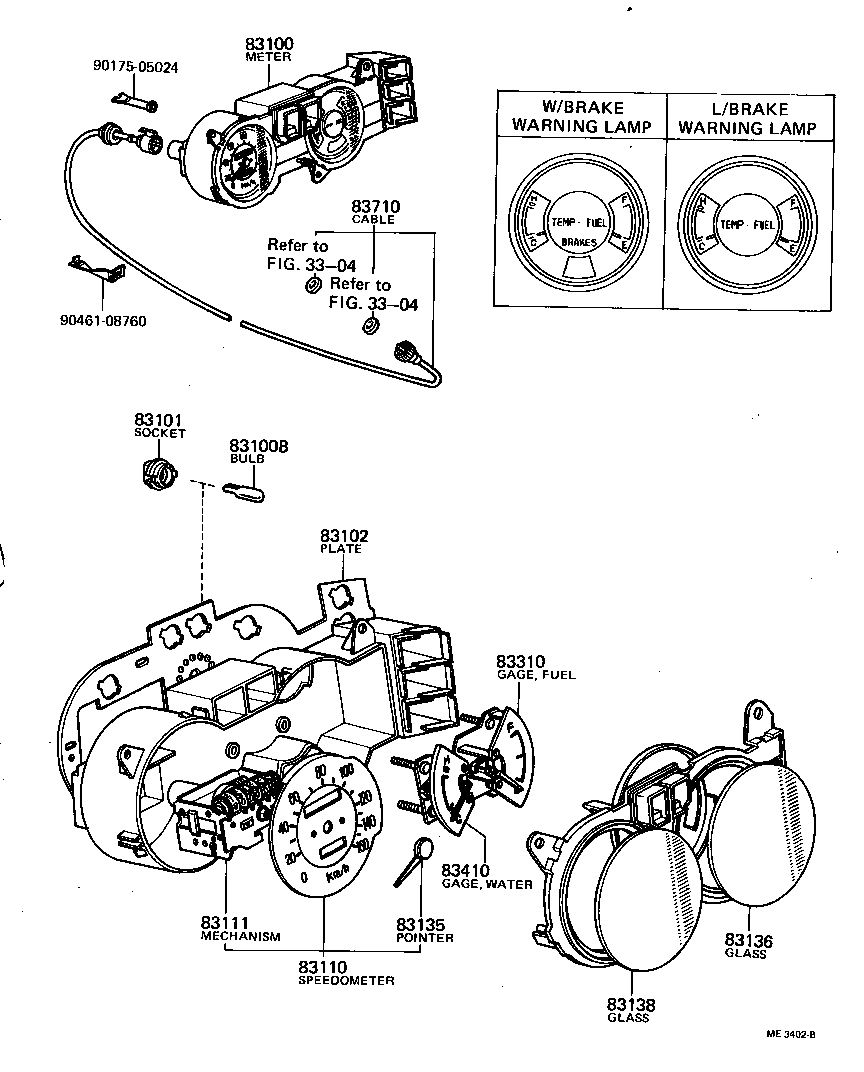

Figure ME4952 ME4952 1969-04 → 1970-10 Figure ME3402B ME3402B 1970-10 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83110 Speedometer Assy
83111 Mechanism, Speedometer
83135 Pointer, Speedometer
83136 Glass, Gage Meter
83138 Glass, Speedometer
83143 Hood, Combination Meter, Front
83144 Hood, Combination Meter, Rear
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
