Toyota TOYOTA1000
1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe
Discontinued model
Data version 1988-08

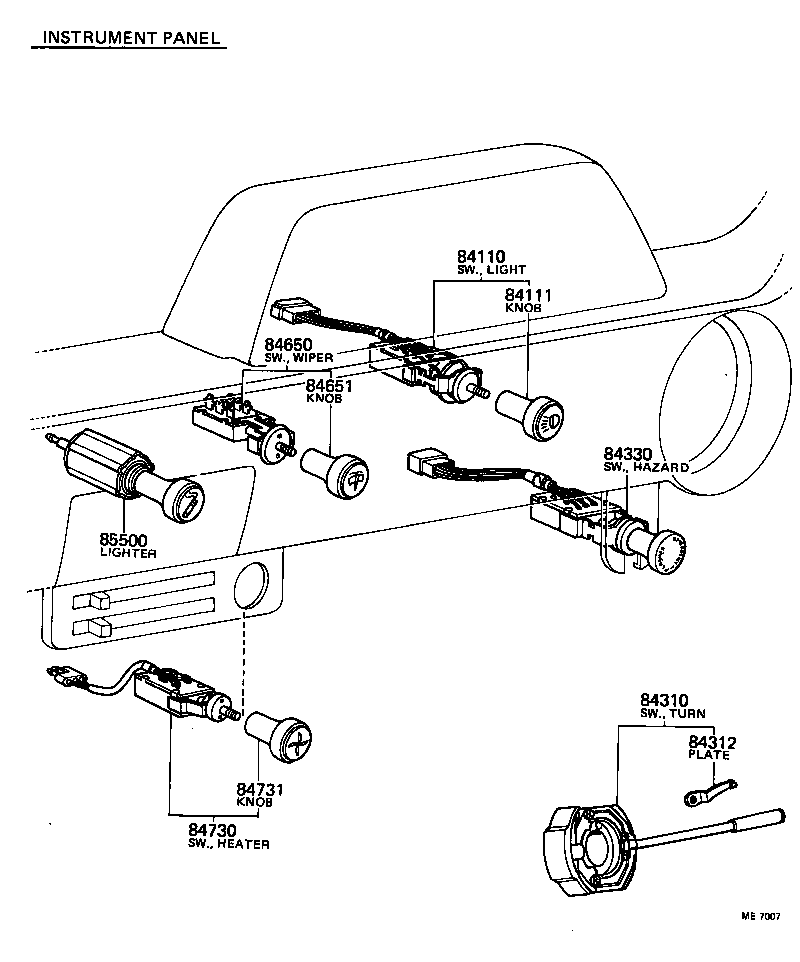

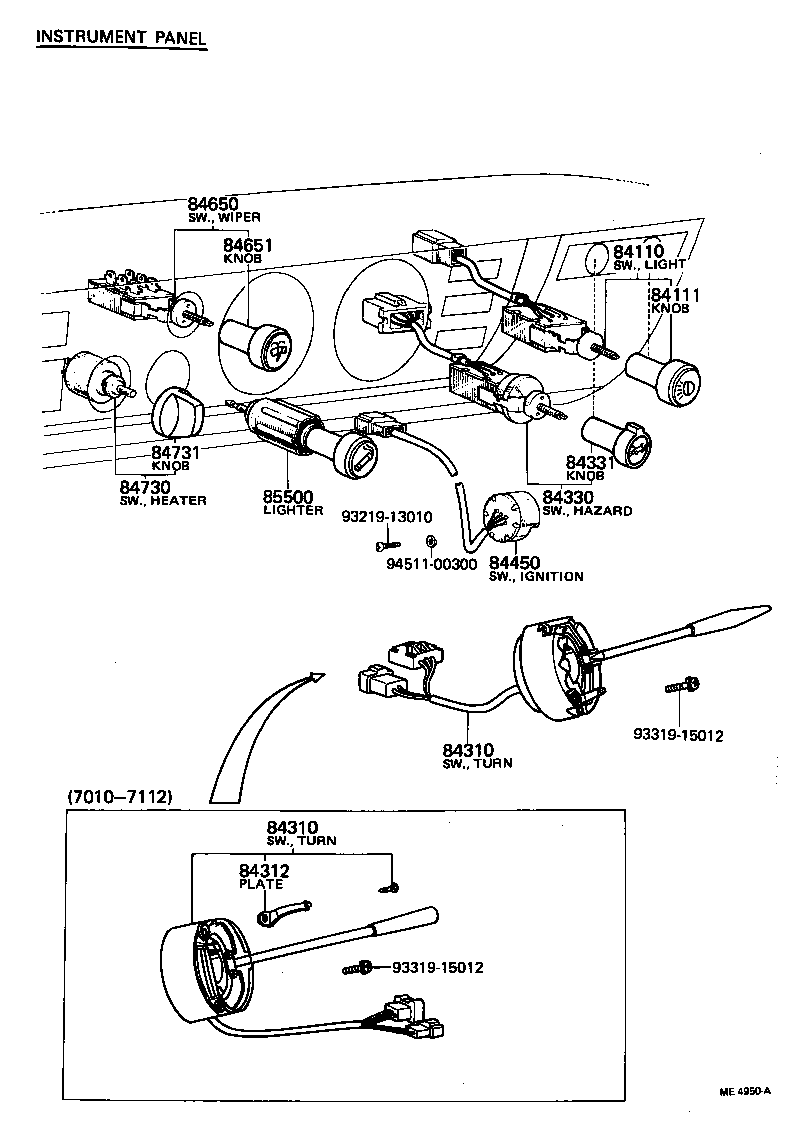

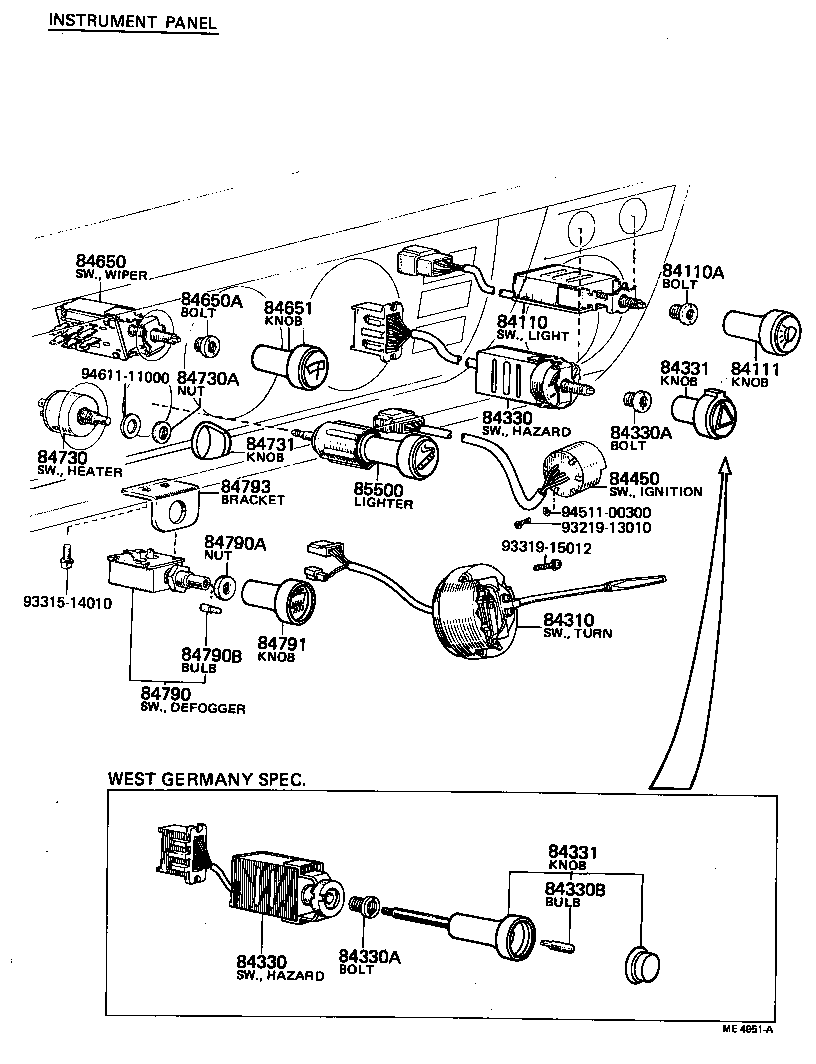

Switch & Relay & Computer
38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 27700 | Regulator Assy, Generator |
| 81980 | Flasher Assy, Turn Signal |
| 82600 | Block Assy, Fuse |
| 82600F | Fuse, Fuse Block |
| 82611 | Cover, Fuse Block |
| 82612A | Insulator, Fuse Block Terminal, B |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84110A | Bolt OR Nut, Light Control Switch Set |
| 84111 | Knob, Light Control Switch |
| 84210 | Switch Assy, Back-up Lamp |
| 84221 | Switch Assy, Differential Valve |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330A | Bolt OR Nut, Hazard Warning Signal Switch Set |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84331 | Knob, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84380 | Switch Assy, Brake Warning Test |
| 84450 | Switch Assy, Ignition OR Starter |
| 84650 | Switch Assy, Windshield Wiper |
| 84650A | Bolt OR Nut, Windshield Wiper Switch Set |
| 84651 | Knob, Windshield Wiper Switch |
| 84730 | Switch Assy, Heater Blower |
| 84730A | Nut, Heater Blower Switch |
| 84731 | Knob, Heater Blower Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790A | Bolt OR Nut, Rear Window Defogger Switch Set |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84791 | Knob, Rear Window Defogger Switch |
| 84793 | Bracket, Rear Window Defogger Switch |
| 85500 | Lighter Assy, Cigarette |
| 85926 | Relay, Headlamp Dimmer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
