Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

18 part groups · 3 illustrations

Illustrations

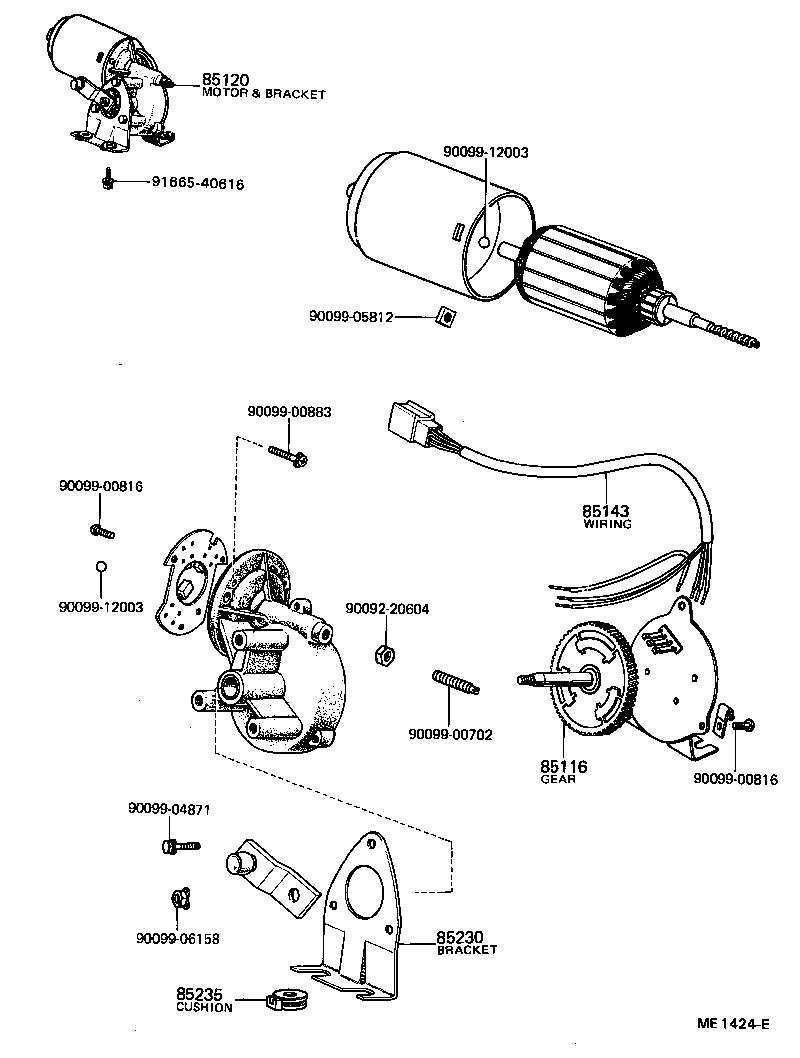

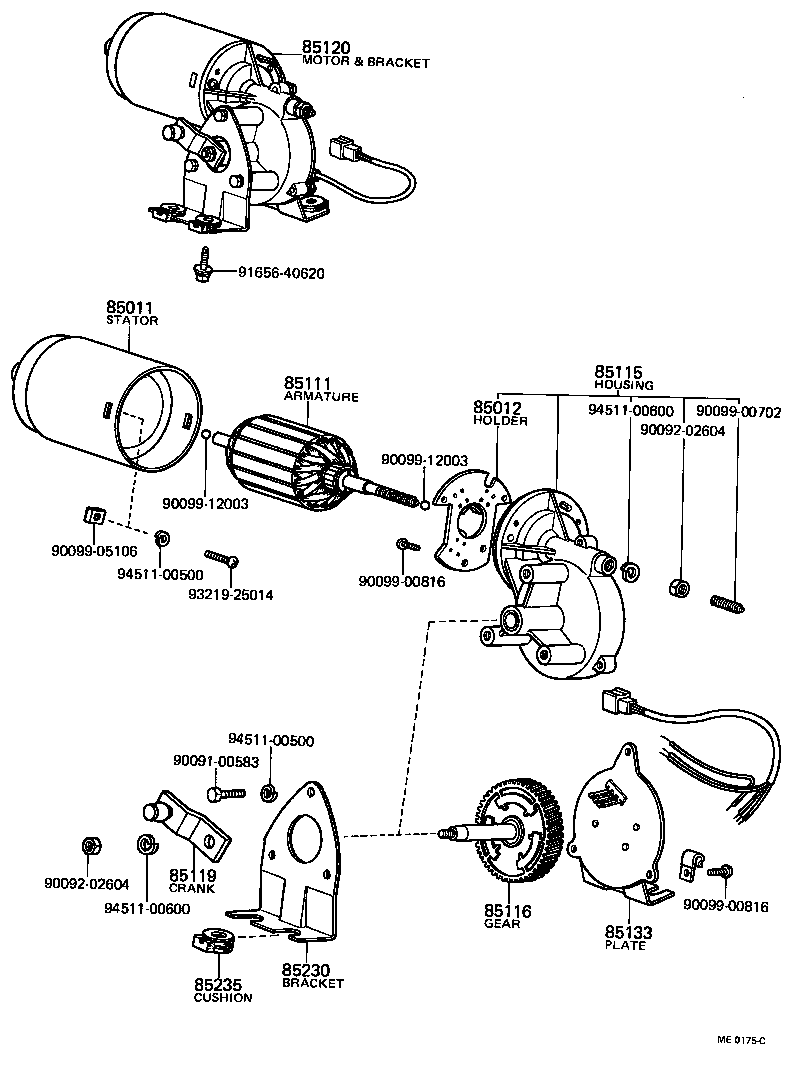

Figure MEF735A MEF735A 1969-04 → — Figure ME0175C ME0175C 1969-04 → 1971-12 Figure ME1424E ME1424E 1972-01 → —

Part groups

PNCDescription
85011 Stator Sub-assy, Windshield Wiper Motor
85012 Holder Sub-assy, Windshield Wiper Motor Brush
85111 Armature, Windshield Wiper Motor
85115 Housing, Windshield Wiper Motor Gear
85116 Gear, Windshield Wiper Motor
85119 Crank, Windshield Wiper Motor
85120 Motor And Bracket Assy, Windshield Wiper
85133 Plate, Windshield Wiper Motor Gear Housing Cover
85143 Wiring, Windshield Wiper Motor Lead
85160 Link Assy, Windshield Wiper
85163 Packing, Windshield Wiper Pivot
85168 Nut, Windshield Wiper Link Pivot
85188 Cap, Windshield Wiper Pivot, NO.1
85190 Arm Assy, Windshield Wiper
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
85230 Bracket Assy, Windshield Wiper
85235 Cushion, Windshield Wiper Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
