Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

12 part groups · 3 illustrations

Illustrations

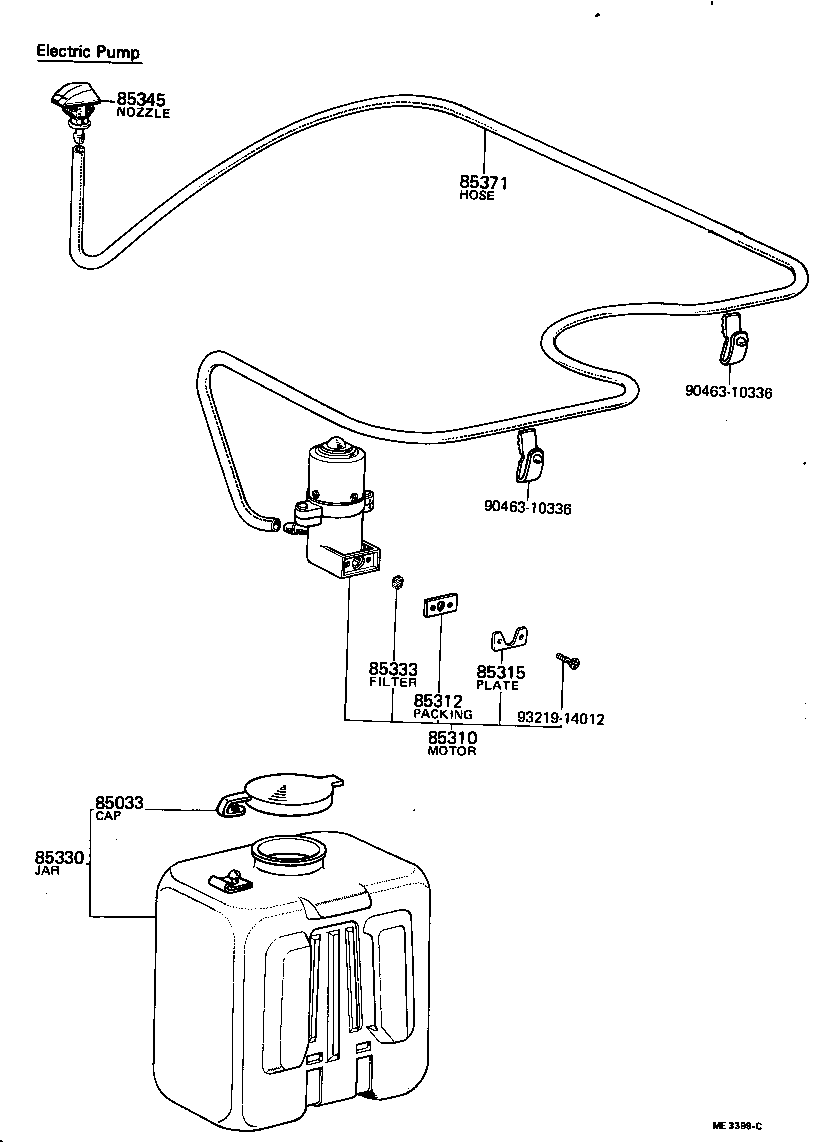

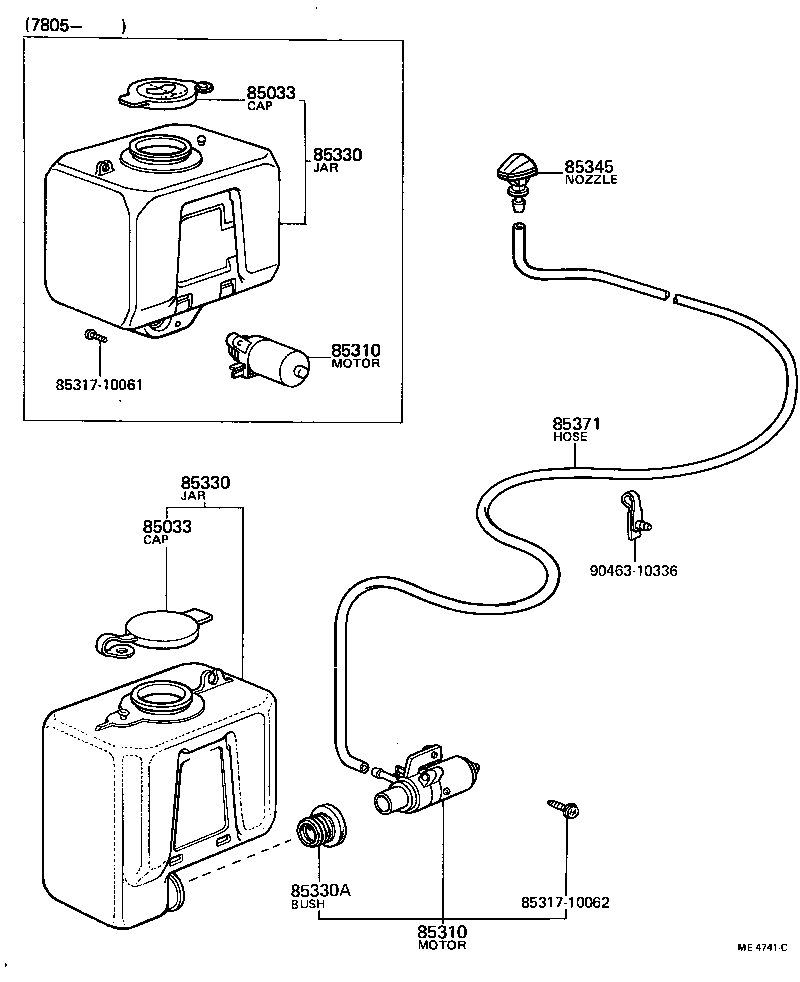

Figure ME0183G ME0183G 1969-04 → 1974-10 Figure ME3399C ME3399C 1974-07 → 1975-11 Figure ME4741C ME4741C 1975-11 → —

Part groups

PNCDescription
85033 Cap Assy, Windshield Washer
85310 Motor And Pump Assy, Windshield Washer
85312 Packing, Windshield Washer Tank
85315 Plate, Windshield Washer Pump
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85343 Hose, Windshield Washer Suction
85345 Nozzle, Windshield Washer
85355 Valve, Windshield Washer Hose
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
