Toyota TOYOTA1000
1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe
Discontinued model
Data version 1988-08

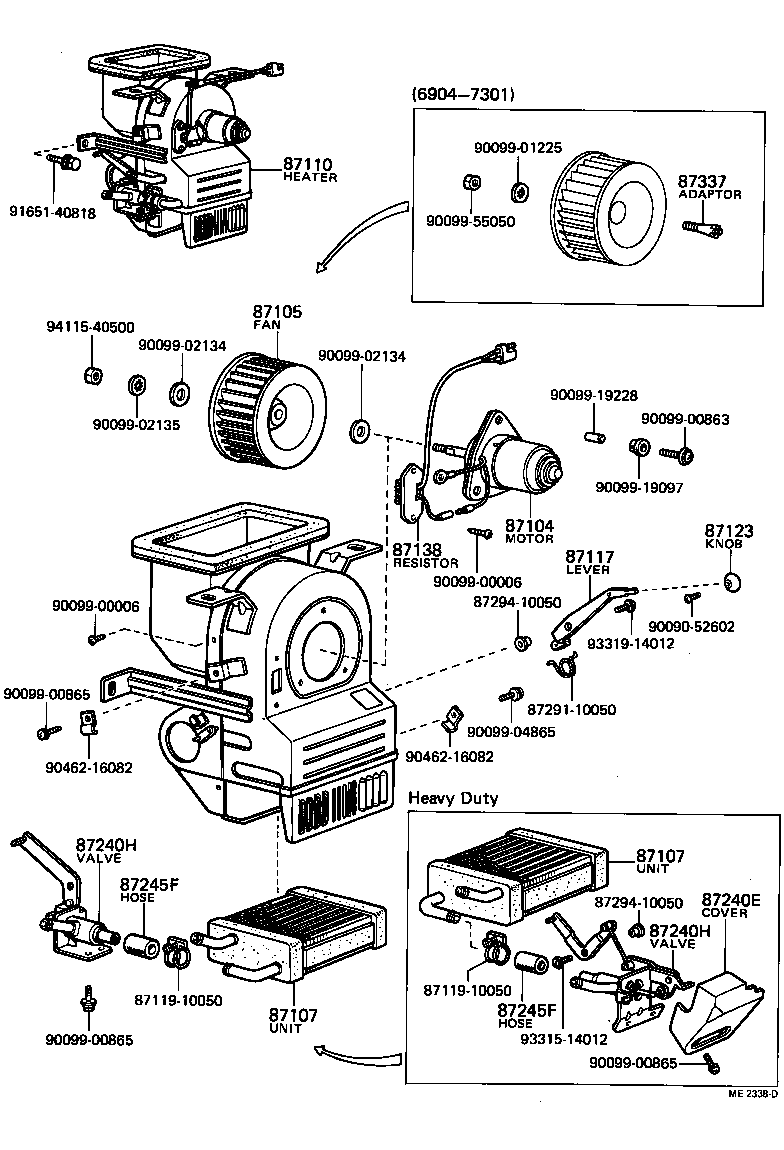

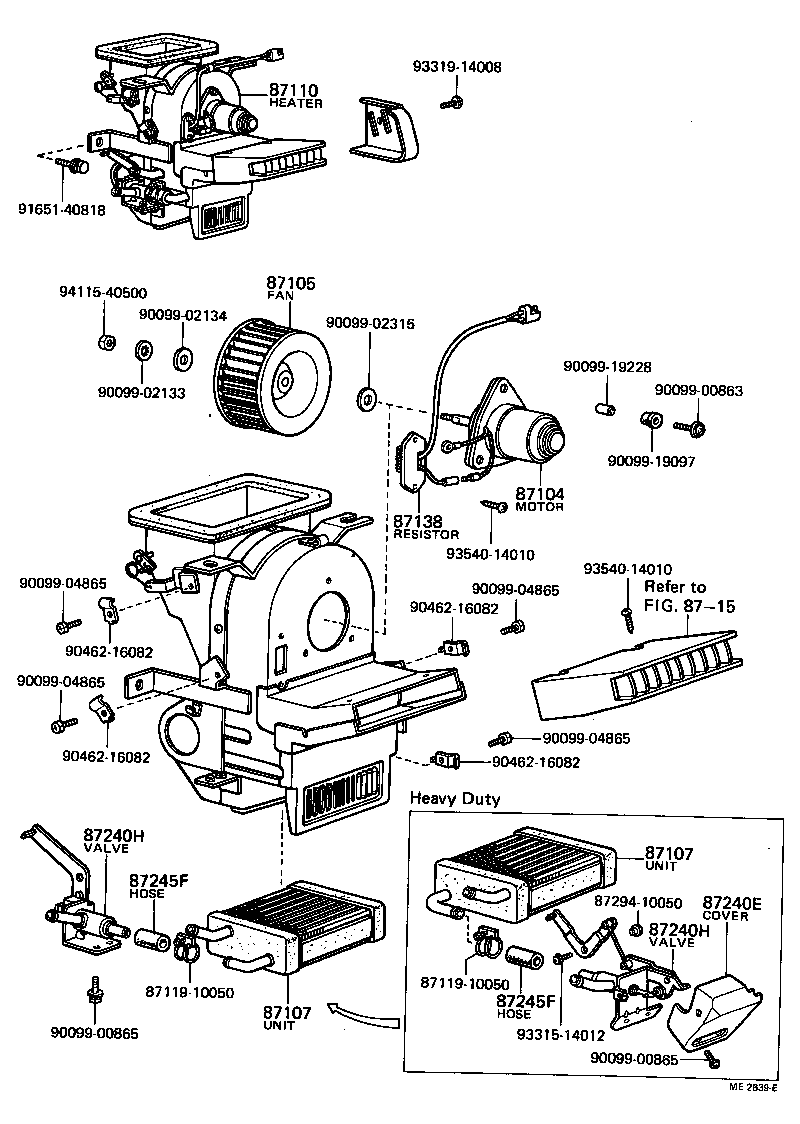

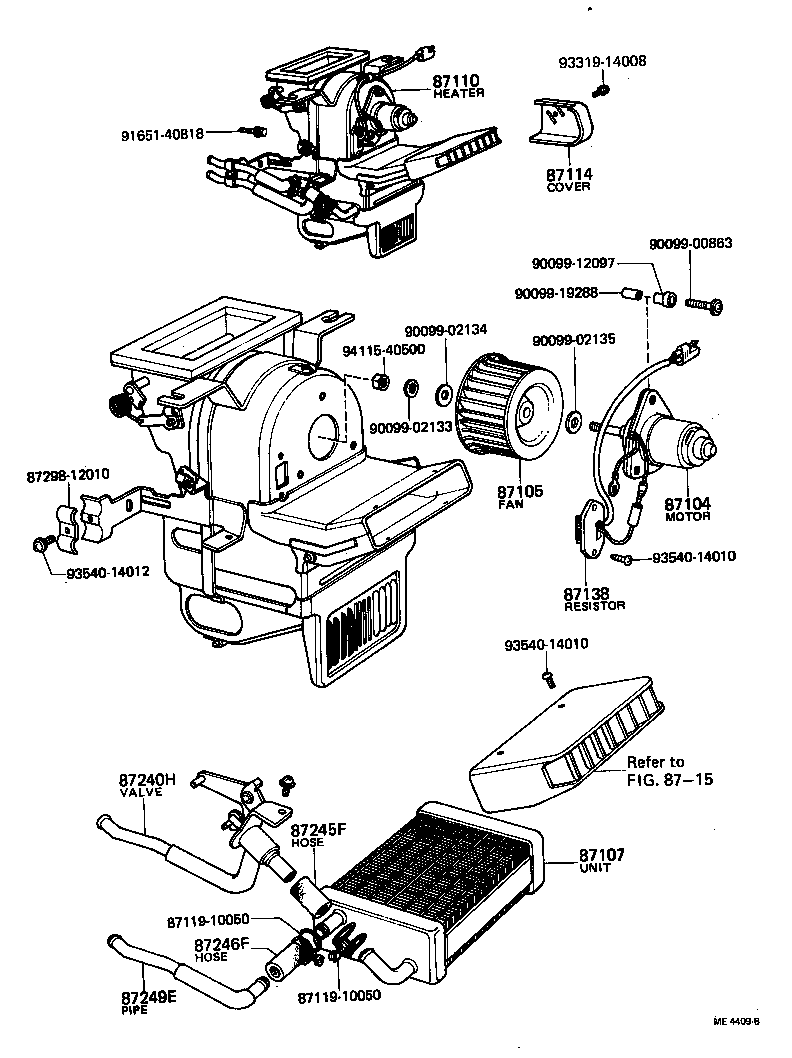

Heating & Air Conditioning - Heater Unit & Blower
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87104 | Motor Sub-assy, Heater Blower |
| 87105 | Fan Sub-assy, Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87110 | Heater Assy |
| 87114 | Cover, Heater |
| 87117 | Lever, Heater |
| 87123 | Knob, Heater |
| 87138 | Resistor, Heater Blower |
| 87240E | Cover, Heater Water Valve |
| 87240H | Valve Assy, Water Unit |
| 87245F | Hose, Heater Water, Inlet F |
| 87246F | Hose, Heater Water, Outlet F |
| 87249E | Pipe, Heater Water Outlet, E (FOR HEATER UNIT) |
| 87337 | Adapter, Heater Blower Motor |
| 87503 | Rail Sub-assy, Center Baffle Side, RH |
| 87505 | Rail Sub-assy, Center Baffle, Center |
| 87507 | Rail Sub-assy, Center Baffle Side, LH |
| 87591 | Baffle, Radiator Grille, Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
