Toyota TOYOTA1000

1969-04 → 1988-08 · chassis KP3# · catalogue 111210 · Europe

Discontinued model Data version 1988-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

17 part groups · 3 illustrations

Illustrations

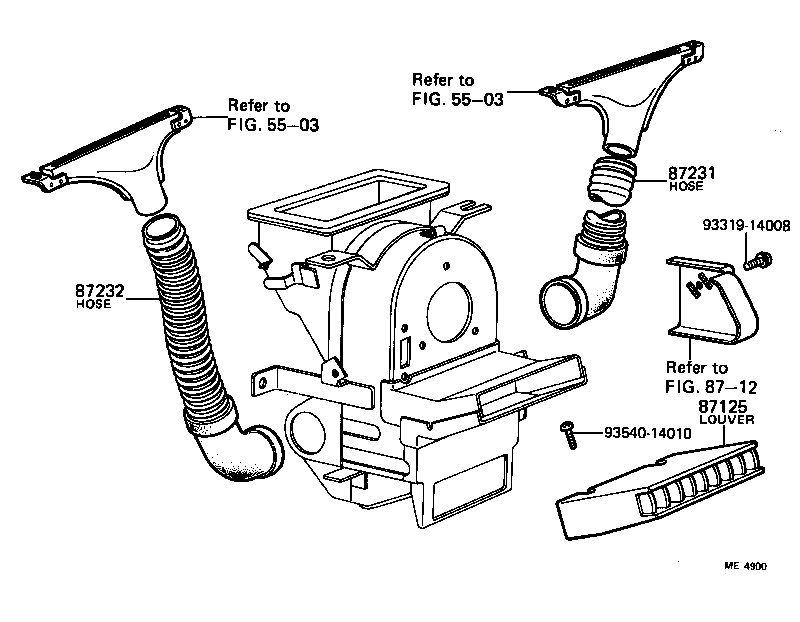

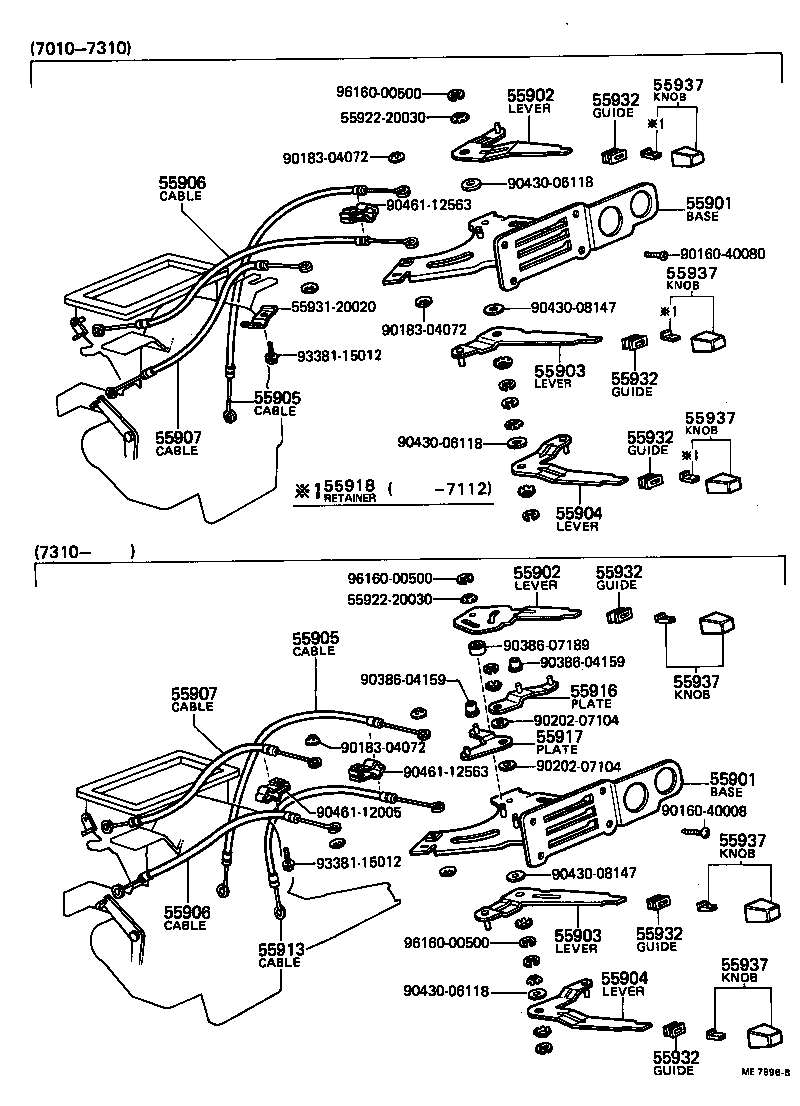

Figure ME4899 ME4899 1969-04 → 1970-10 Figure ME7996B ME7996B 1970-10 → — Figure ME4900 ME4900 1969-04 → —

Part groups

PNCDescription
55901 Base Sub-assy, Heater Control
55902 Lever Sub-assy, Defroster Control
55903 Lever Sub-assy, Heater Control
55904 Lever Sub-assy, Air Inlet Butterfly Control
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55913 Cable Sub-assy, Boost Vent Control
55916 Plate, Defroster Door Control
55917 Plate, Air Inlet Door Control
55918 Retainer, Heater Control Lever
55932 Guide, Lever, NO.1
55937 Knob, Heater Control Lever
55939 Ornament, Heater Control
87125 Louver, Ventilation
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
