Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

16 part groups · 2 illustrations

Illustrations

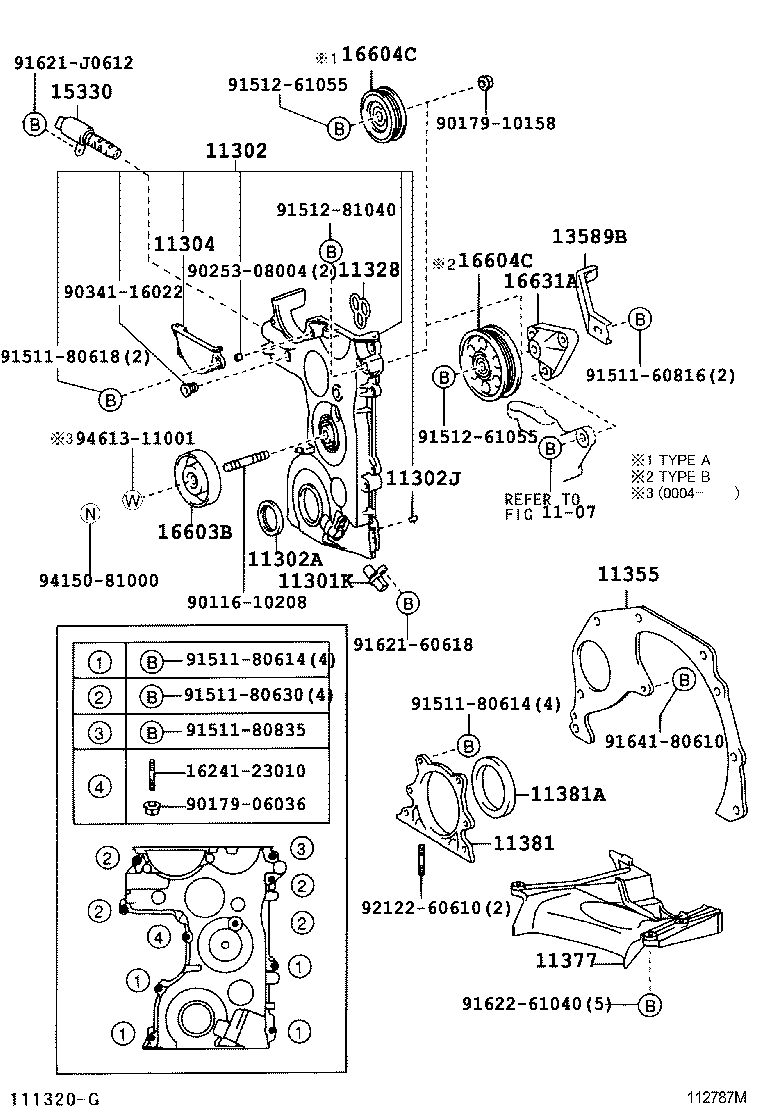

Figure 111463 111463 1999-08 → — Figure 112787M 112787M 1999-01 → 2002-12

Part groups

PNCDescription
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302J Pin, Straight(FOR TIMING CHAIN COVER)
11304 Cover, Timing Chain OR Belt, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11355 Plate, Rear End
11377 Stiffener, Rear End Plate
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12281 Hanger, Engine, NO.1
13589B Stay, Idler Bracket
15330 Valve Assy, Cam Timing Oil Control
16603B Pulley Sub-assy, Idler
16604C Pulley Sub-assy, Idler, NO.2
16631A Bracket, Idler Pulley
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
