Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

46 part groups · 8 illustrations

Illustrations

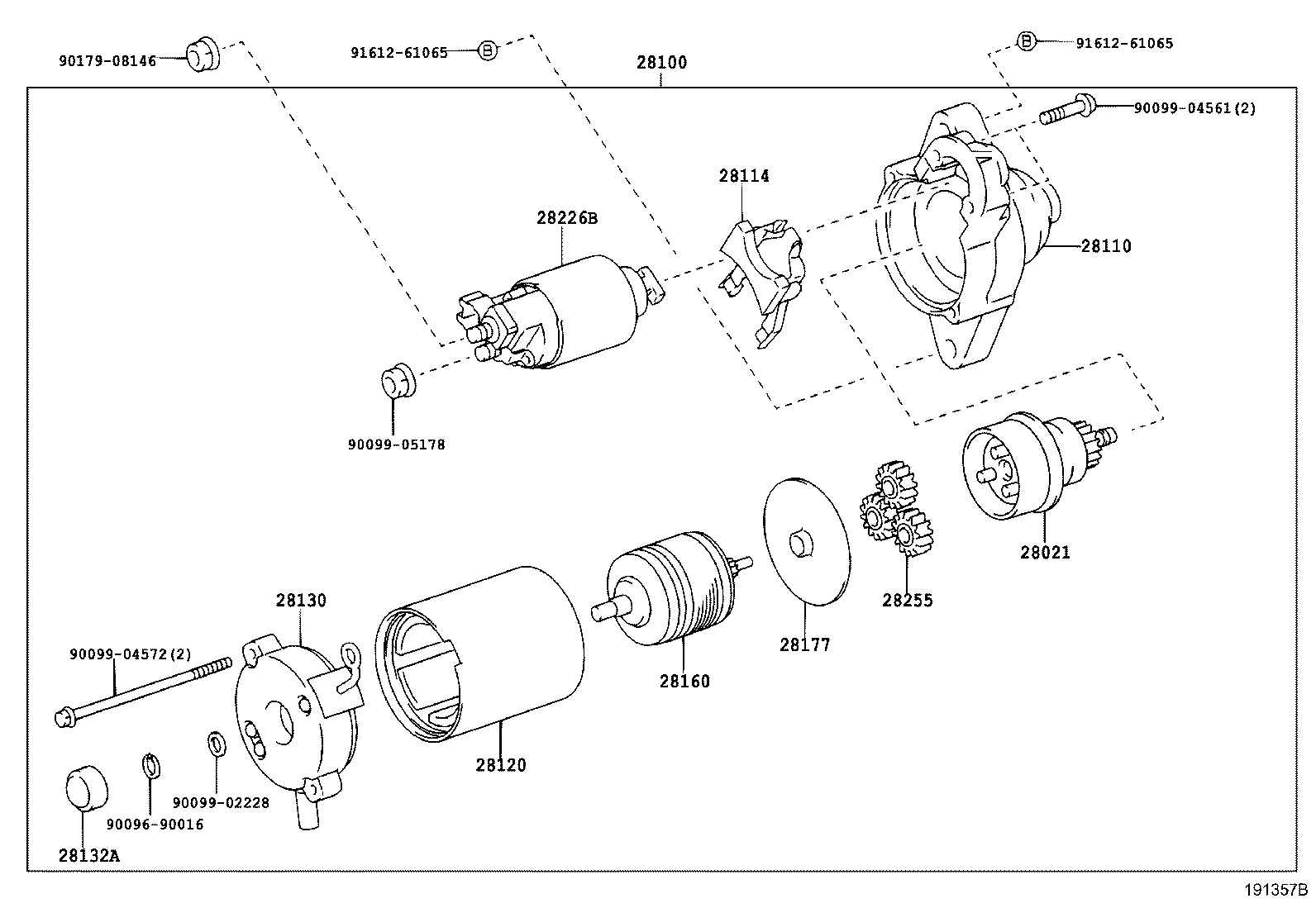

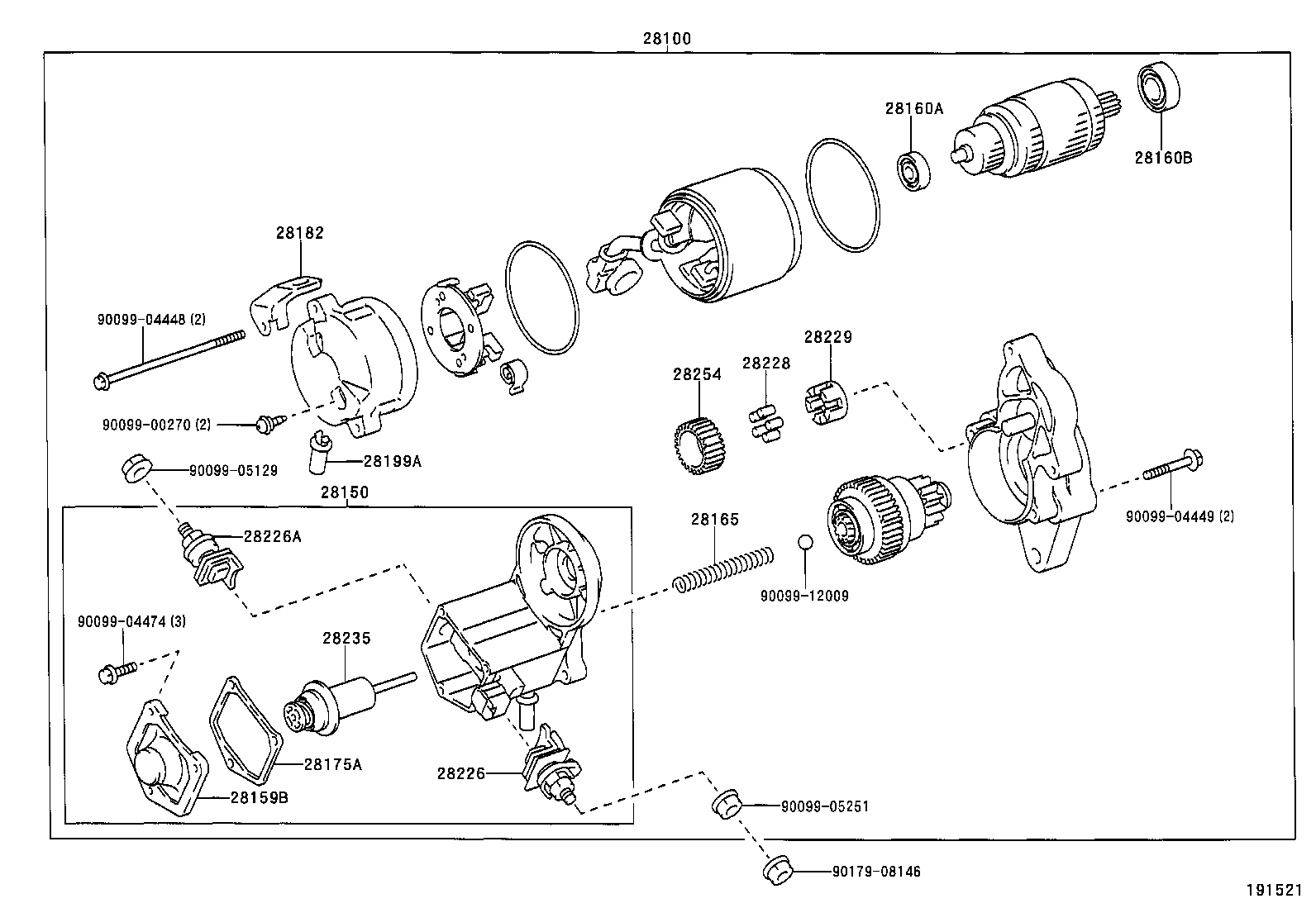

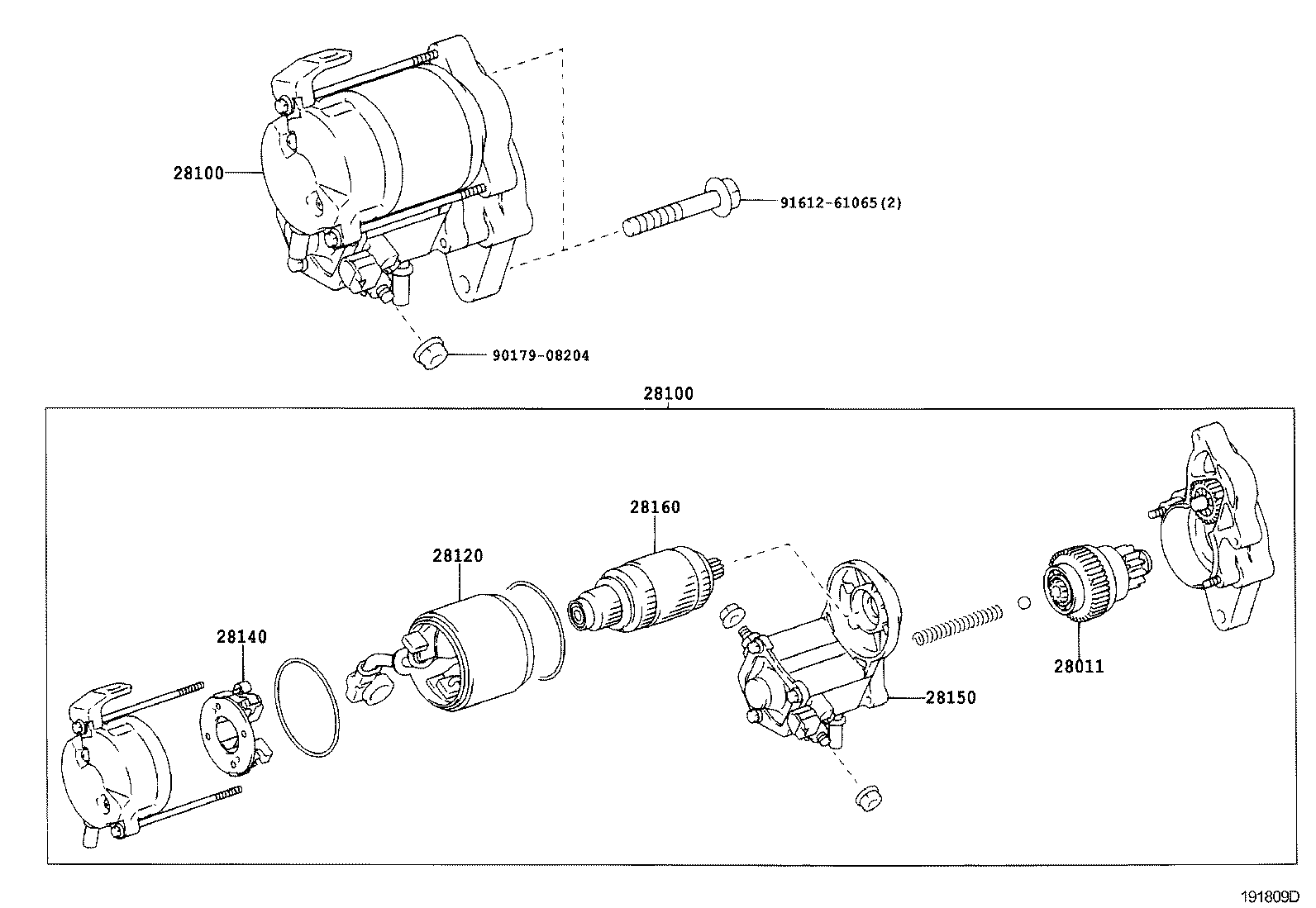

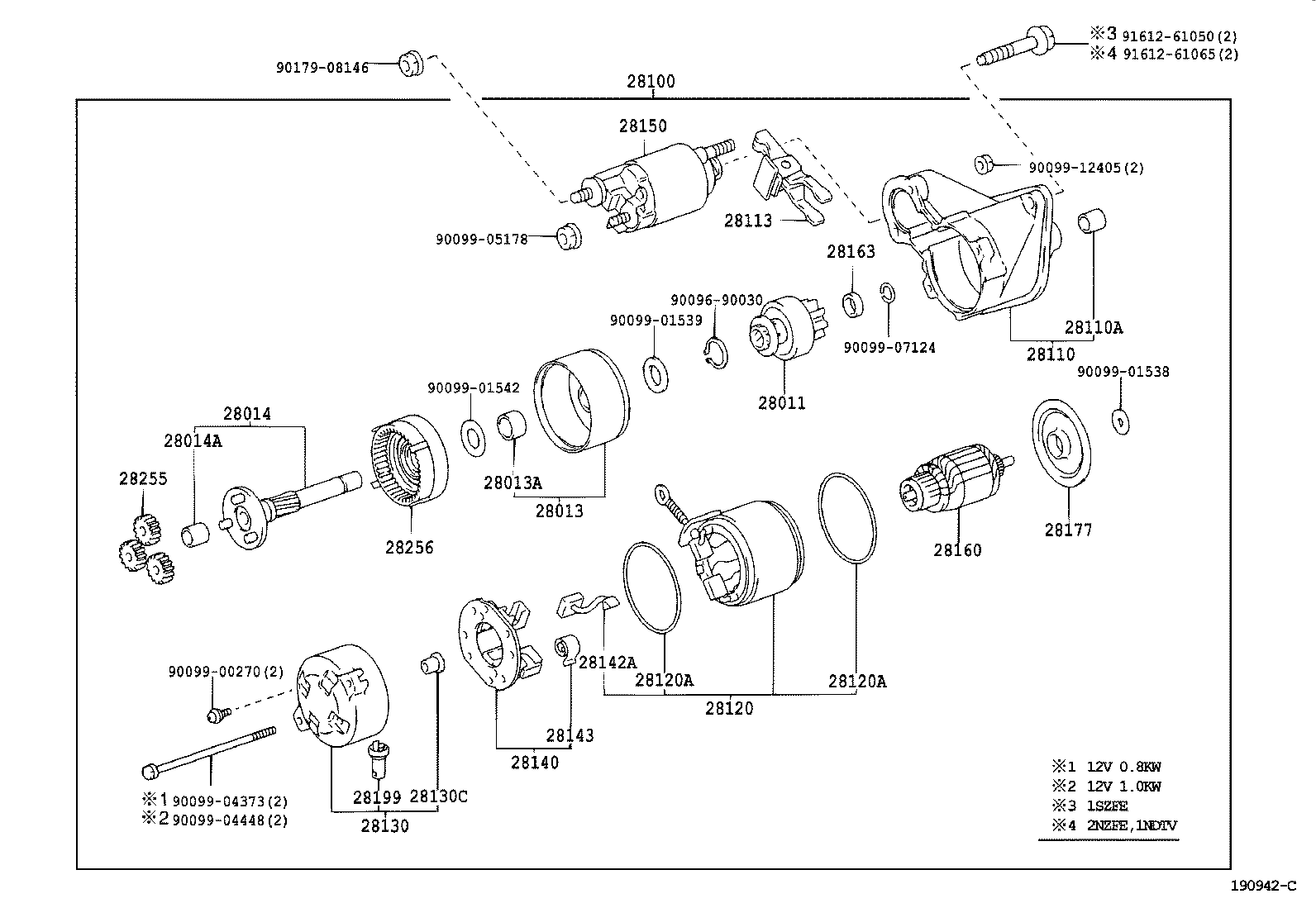

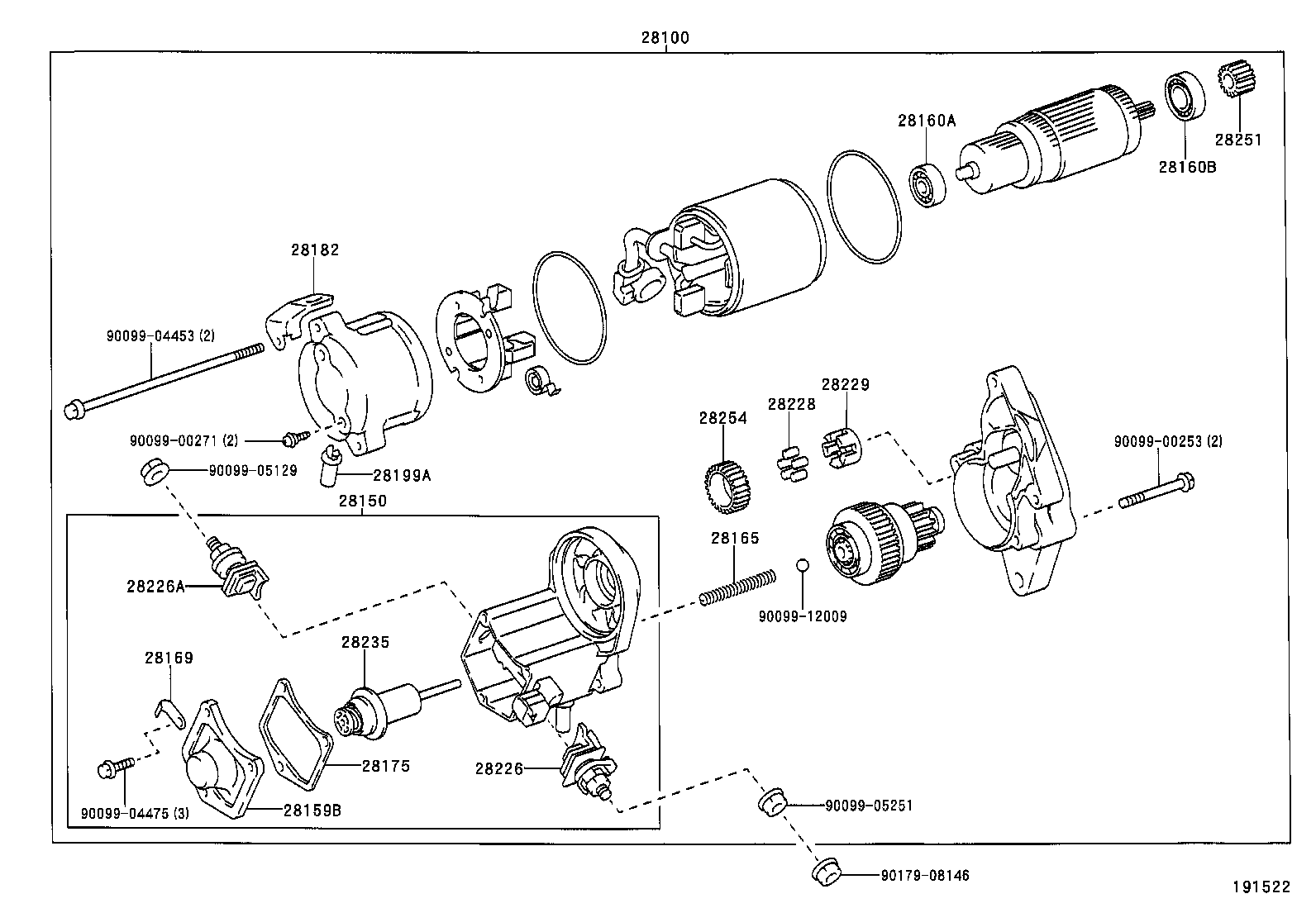

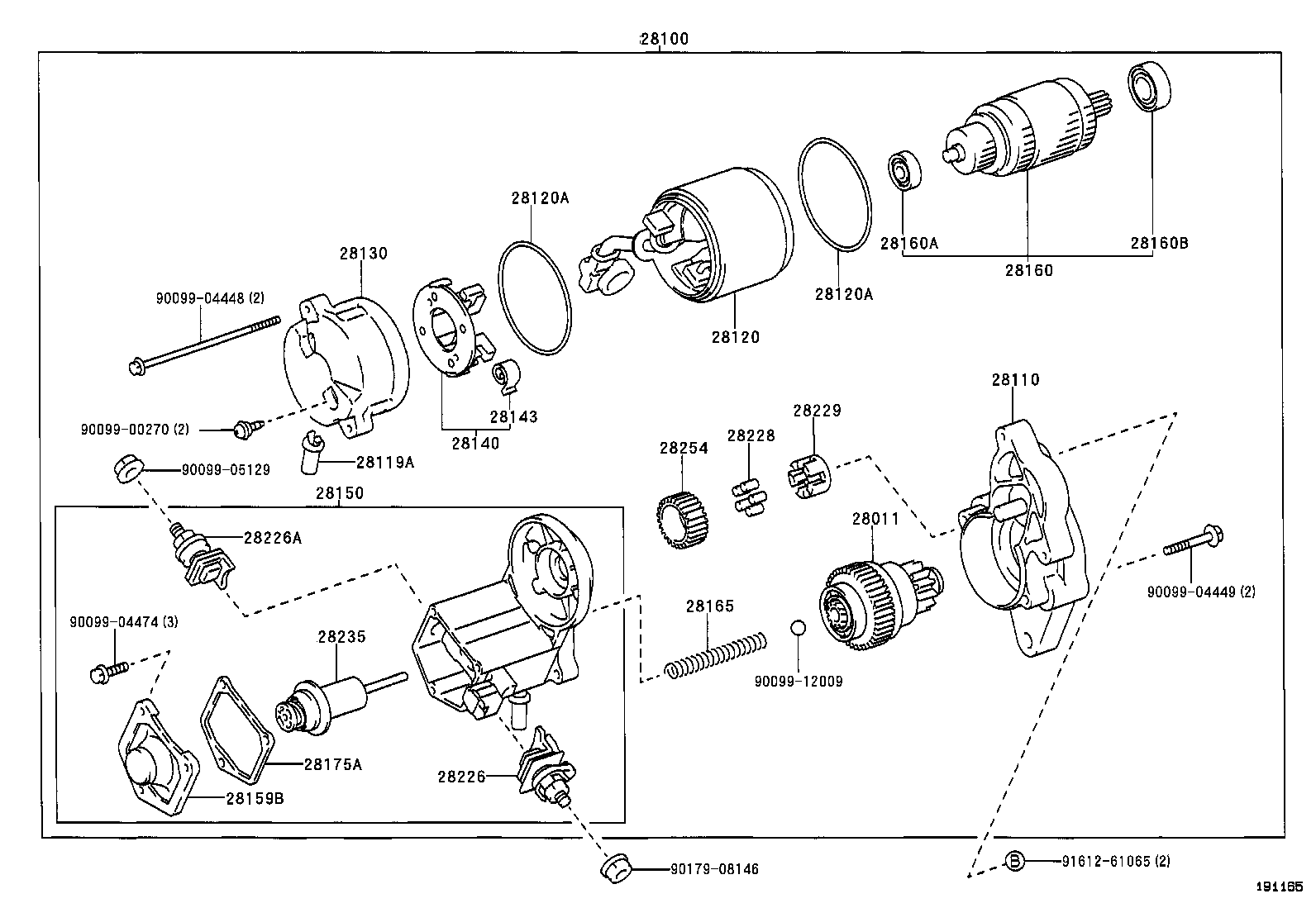

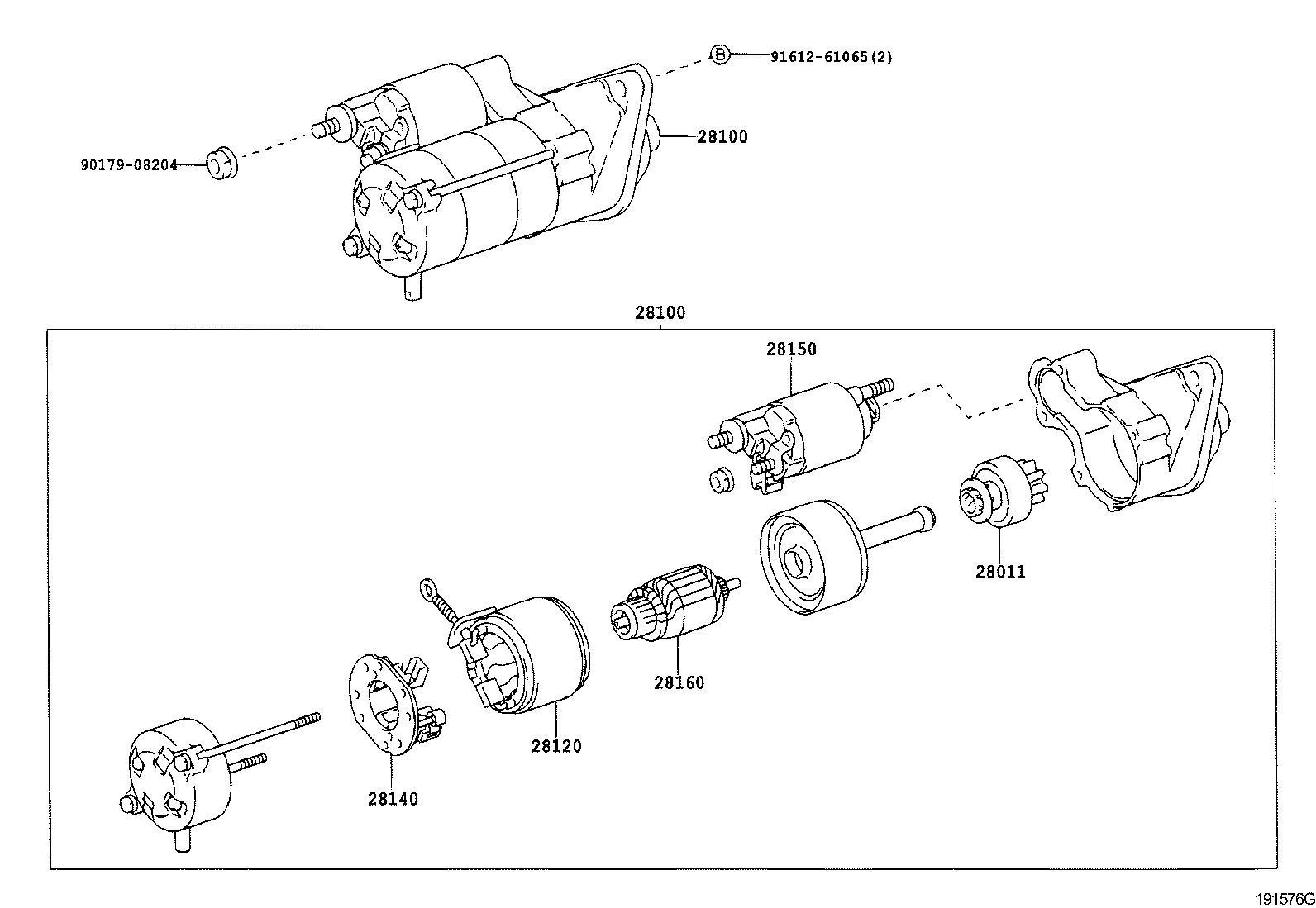

Figure 190943 190943 1999-01 → 2002-12 Figure 191165 191165 2000-01 → 2000-12 Figure 191357B 191357B 2000-12 → 2002-12 Figure 190942C 190942C 1999-01 → 2002-12 Figure 191521 191521 2001-09 → 2002-12 Figure 191522 191522 2001-09 → 2002-12 Figure 191576G 191576G 2002-12 → — Figure 191809D 191809D 2002-12 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28013 Bearing, Starter Center & Shock Absorber, NO.1
28013A Bearing, Starter Center & Shock Absorber, NO.2
28014 Shaft Sub-assy, Planet Carrier
28014A Bush OR Bearing, Planet Carrier Shaft
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28110A Bearing(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28114 Pin, Starter Drive Lever Set
28119A Cover, Starter End Frame
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28130C Bearing, Starter Flange
28132A Cover, Starter Commutator End Frame
28140 Holder Assy, Starter Brush
28141 Insulator, Brush Holder
28142A Starter Kit
28143 Spring, Starter Brush
28149 Plate, Starter
28150 Switch Assy, Magnet Starter
28159B Cover, Magnet Switch
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28160B Bearing, Starter Armature, NO.2
28163 Nut OR Collar, Pinion Stop, Starter
28165 Spring, Starter Magnet Switch Return
28169 Clamp, Starter Motor Lead Wire
28175 Packing, Starter Bearing Cover
28175A Gasket, Magnet Switch Cover
28177 Plate(FOR STARTER ARMATURE)
28182 Stay, Starter Commutator End Frame
28199 Cover, Starter
28199A Protector, Dust Starter
28226 Starter Kit, Battery Terminal
28226A Starter Kit, Motor Terminal
28226B Starter Kit, Repair Service
28228 Roller, Starter Idle Gear Clutch
28229 Retainer, Starter Idle Gear
28235 Plunger, Magnet Switch
28251 Pinion, Starter Drive
28254 Pinion, Starter Idle Gear
28255 Gear, Planet
28256 Gear, Starter Internal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
