Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Release Cylinder

12 part groups · 3 illustrations

Illustrations

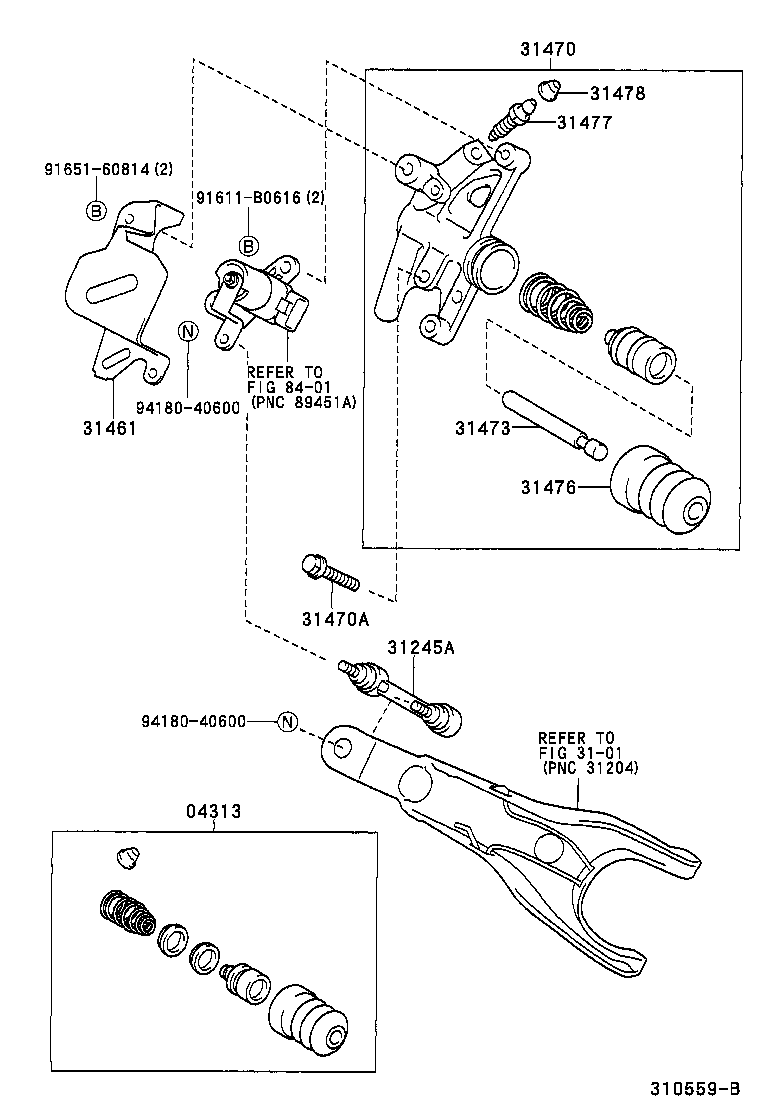

Figure 310558 310558 1999-01 → — Figure 310559B 310559B 1999-01 → 2002-12 Figure 310659B 310659B 1999-08 → —

Part groups

PNCDescription
04313 Cylinder Kit, Clutch Release
31245A Rod, Clutch Release Fork
31461 Insulator, Release Cylinder Heat
31470 Cylinder Assy, Clutch Release
31470A Bolt(FOR CLUTCH RELEASE CYLINDER SETTING)
31470P Union(FOR CLUTCH RELEASE)
31470Q Bolt, Union(FOR CLUTCH RELEASE)
31470R Gasket(FOR CLUTCH RELEASE)
31473 Rod, Clutch Release Cylinder Push, NO.1
31476 Boot, Clutch Release Cylinder
31477 Plug, Bleeder(FOR RELEASE CYLINDER)
31478 Cap, Bleeder Plug(FOR RELEASE CYLINDER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
