Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

26 part groups · 2 illustrations

Illustrations

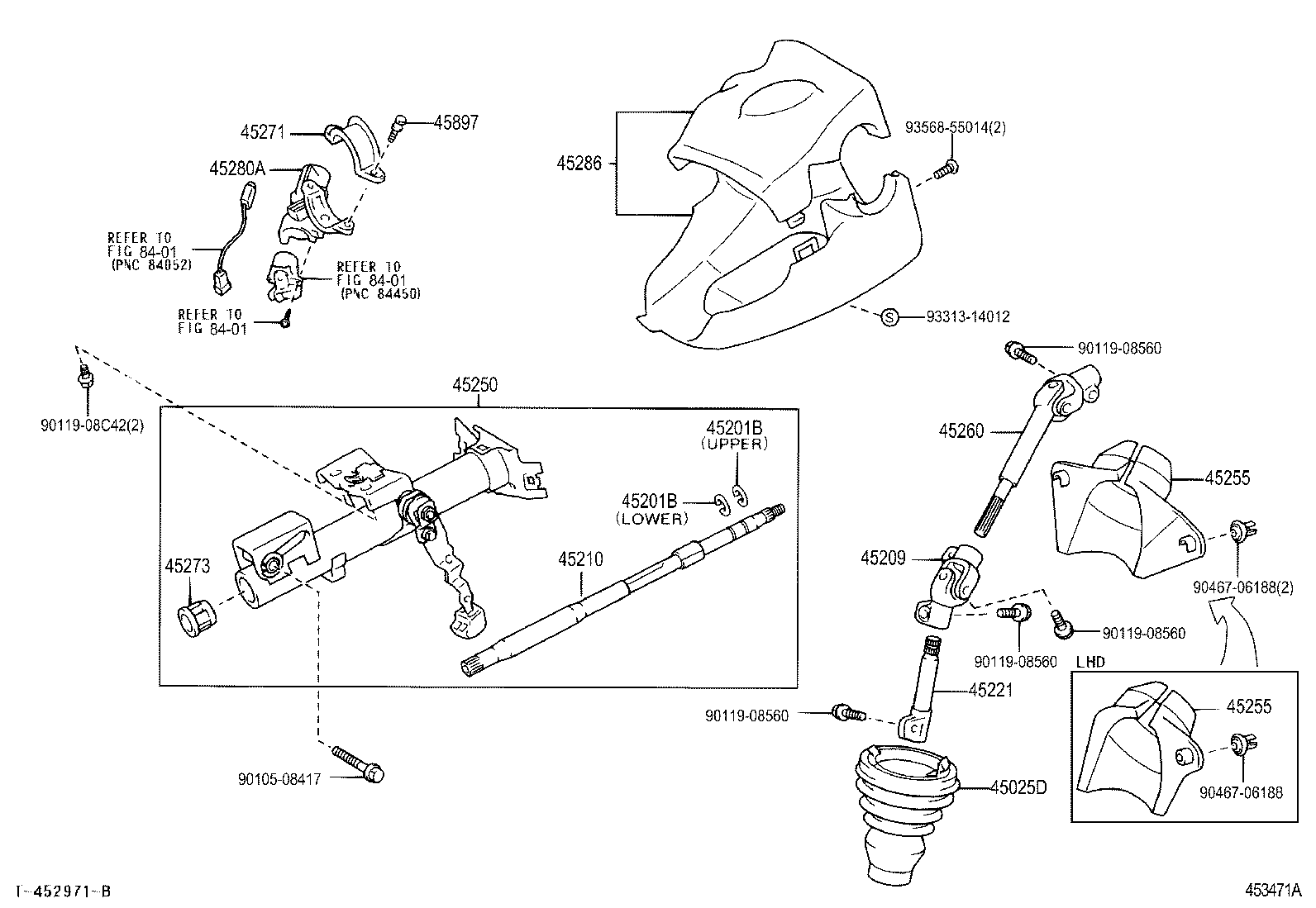

Figure 452922B 452922B 1999-01 → 2002-12 Figure 453471A 453471A 2002-12 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45205 Tube Sub-assy, Steering Column
45209 Yoke Sub-assy, Steering Sliding
45210 Shaft Assy, Steering Main
45221 Shaft, Steering Intermediate
45250 Column Assy, Steering
45255 Plate, Steering Column Hole Cover
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45271A Clamp, Steering Column, Upper NO.2
45273 Bush, Steering Main Shaft
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45813 Collar, Tilt Steering Support, NO.1
45813C Collar, Tilt Steering Support, NO.1
45814 Collar, Tilt Steering Support, NO.2
45821B Reinforce, Tilt Steering Support, NO.1
45826 Lever, Steering Tilt
45831 Bolt, Tilt Lever Lock, NO.1
45833 Nut, Tilt Steering Adjusting, NO.1
45877A Spacer, Steering Column Bracket
45878 Bracket, Steering Column Upper Support
45880A Bolt(FOR STEERING TILT LEVER)
45893A Stopper, Tilt Steering Pawl
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
