Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

5 part groups · 4 illustrations

Illustrations

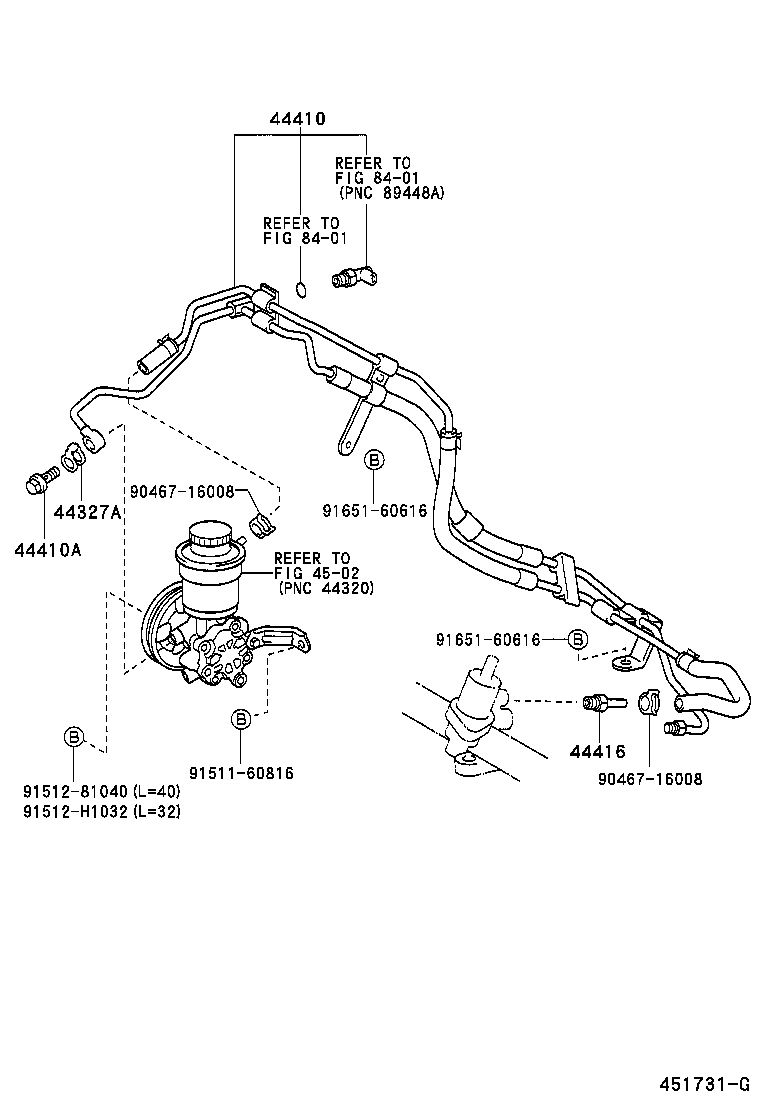

Figure 451730E 451730E 1999-01 → 2002-12 Figure 451731G 451731G 1999-01 → 2002-12 Figure 452923B 452923B 1999-08 → — Figure 452924B 452924B 1999-08 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
