Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

15 part groups · 9 illustrations

Illustrations

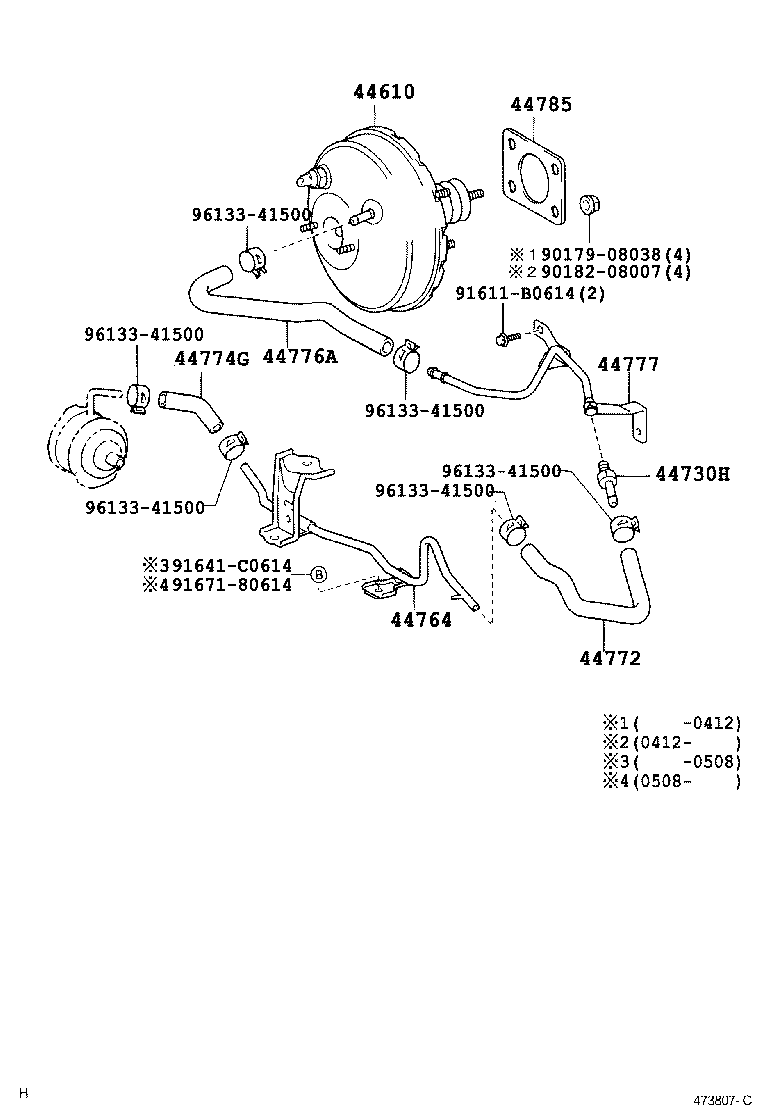

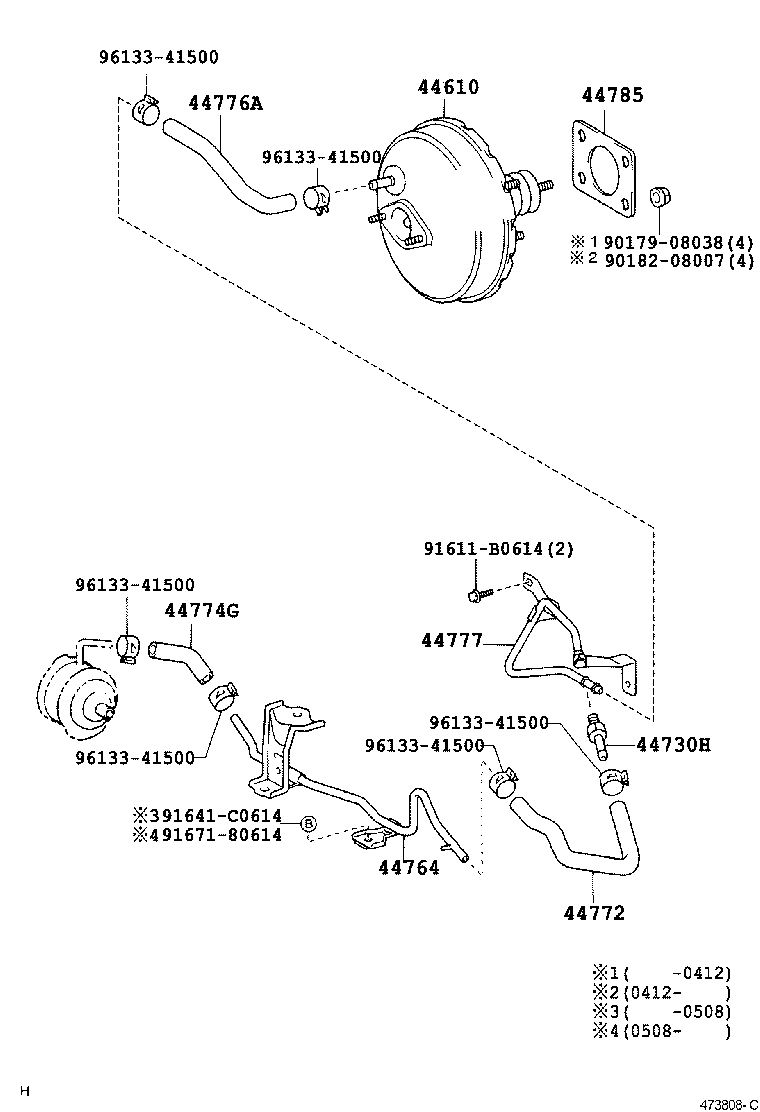

Figure 471406N 471406N 1999-01 → — Figure 471407D 471407D 1999-01 → — Figure 471408E 471408E 1999-01 → — Figure 472886C 472886C 1999-08 → — Figure 472887C 472887C 1999-08 → — Figure 472778D 472778D 2001-09 → 2003-07 Figure 472779C 472779C 2001-09 → 2003-07 Figure 473807C 473807C 2003-07 → — Figure 473808C 473808C 2003-07 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44763 Tube, Booster Vacuum
44764 Tube, Booster Vacuum
44772 Hose, Check Valve TO Connector Tube
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44774G Hose, Union TO Solenoid
44776 Hose, Brake Booster
44776A Hose, Vacuum Reservoir TO Brake Booster
44777 Connector, Vacuum Hose, NO.1
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
