Toyota Yaris (JPP)

1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe

Discontinued model Data version 2006-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 2 illustrations

Illustrations

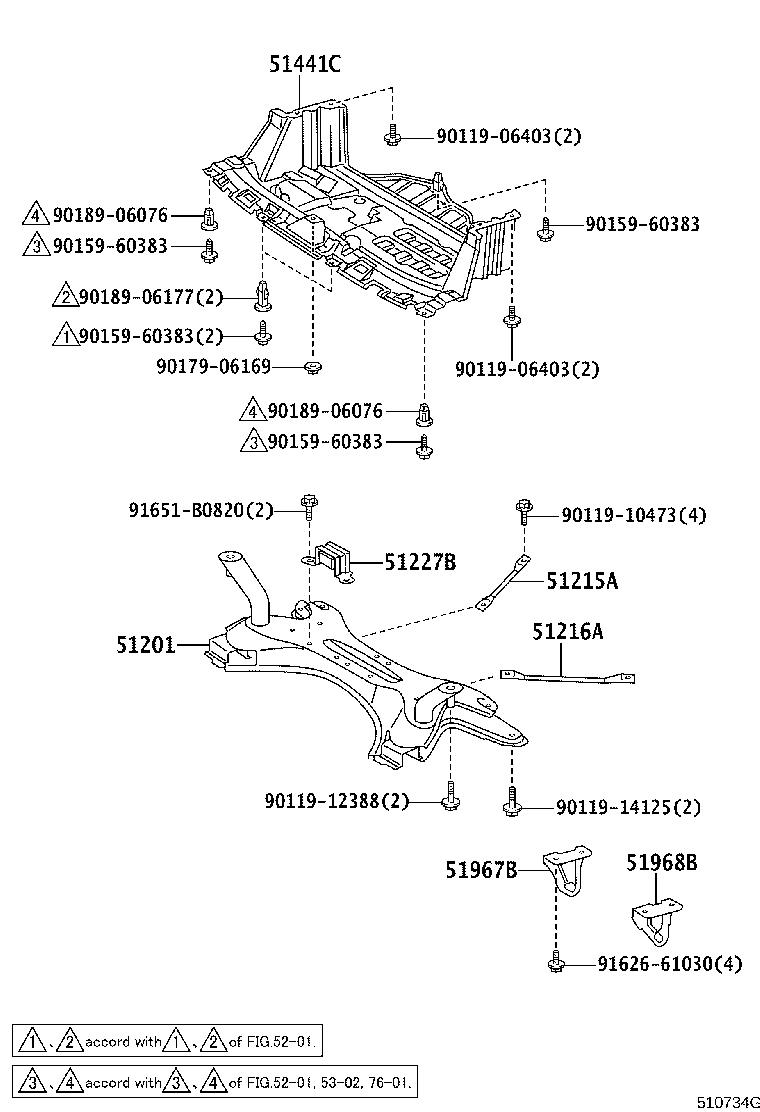

Figure 510438J 510438J 1999-01 → — Figure 510734G 510734G 2001-10 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51215A Reinforcement, Front Suspension Member, RH
51216A Reinforcement, Front Suspension Member, LH
51227B Damper, Front Suspension Member Dynamic
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51967B Hook, Transport, Rear RH
51968B Hook, Transport, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
