Toyota Yaris (JPP)
1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe
Discontinued model
Data version 2006-05

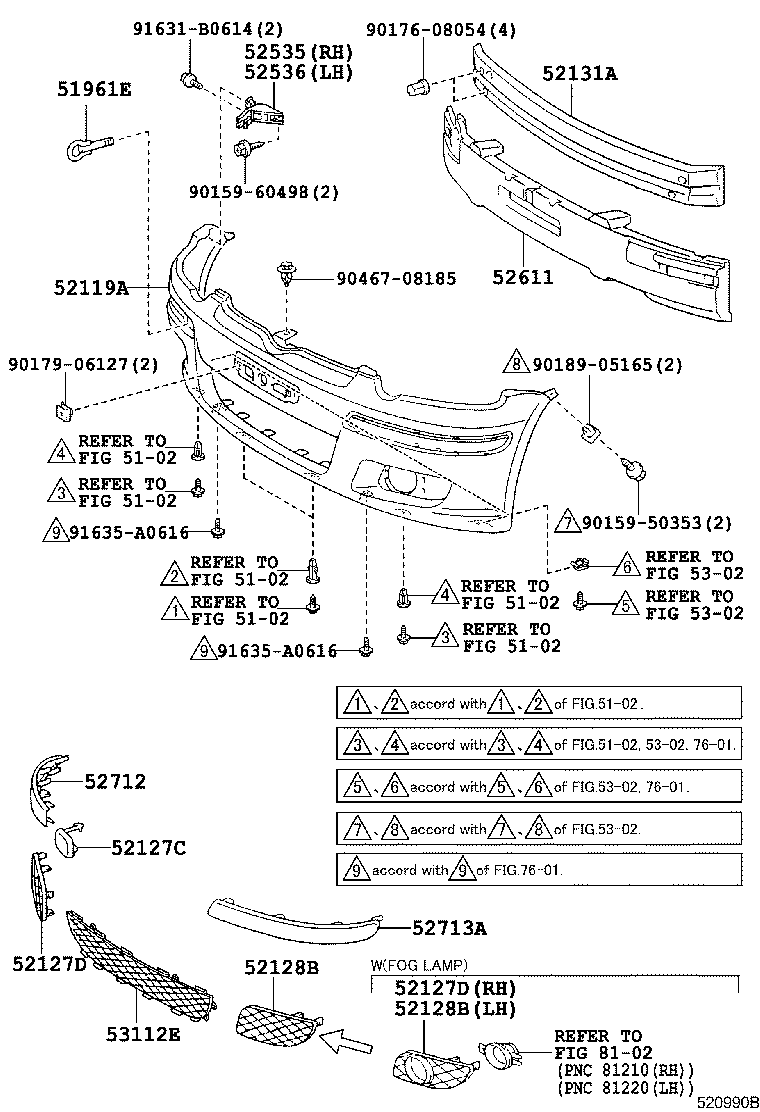

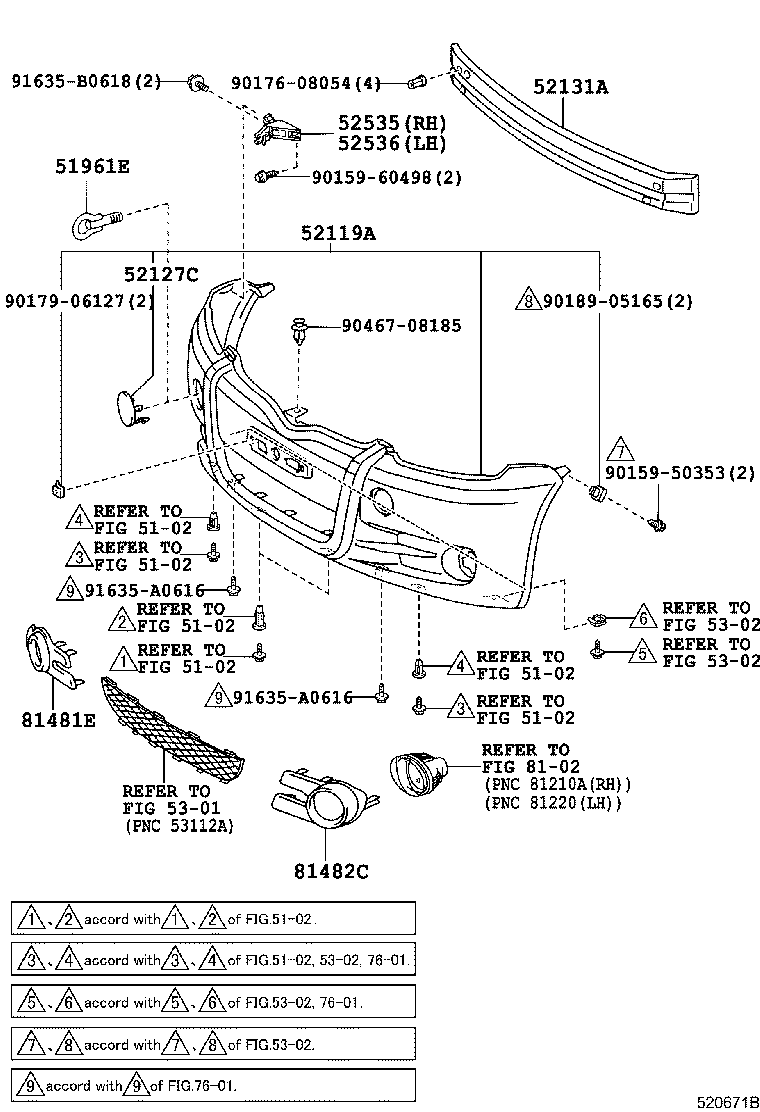

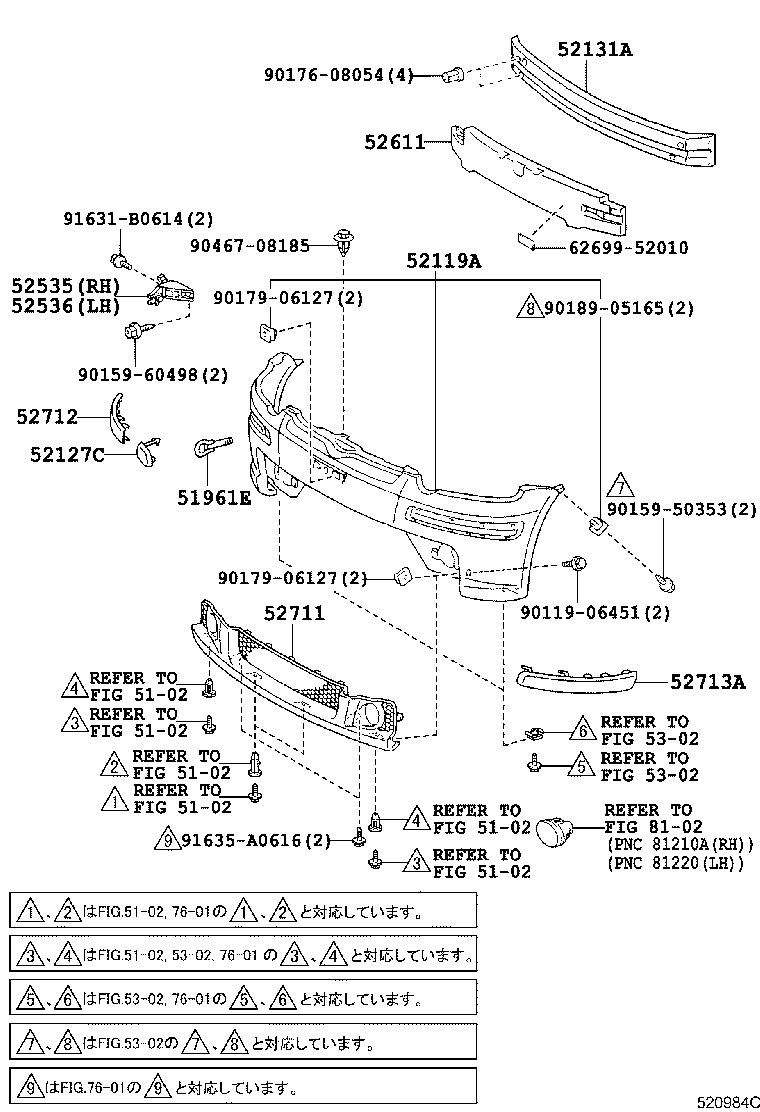

Front Bumper & Bumper Stay
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 51961E | Hook, Front |
| 52119A | Cover, Front Bumper |
| 52127C | Cover, Front Bumper Hole |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52131A | Reinforcement, Front Bumper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52711 | Moulding, Front Bumper |
| 52712 | Moulding, Front Bumper Side, RH |
| 52713A | Moulding, Front Bumper Side, LH |
| 53112E | Grille, Radiator, Lower NO.1 |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
