Toyota Yaris (JPP)
1999-01 → 2005-08 · chassis NCP1#,NLP10,SCP10 · catalogue 112510 · Europe
Discontinued model
Data version 2006-05

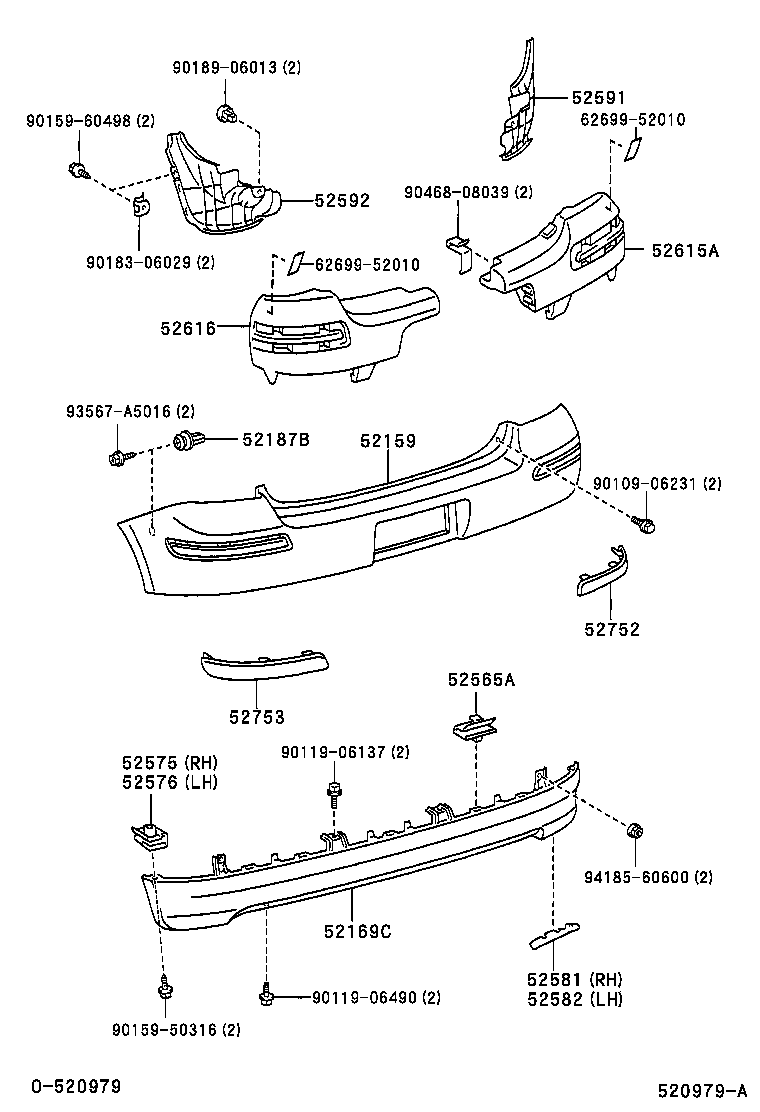

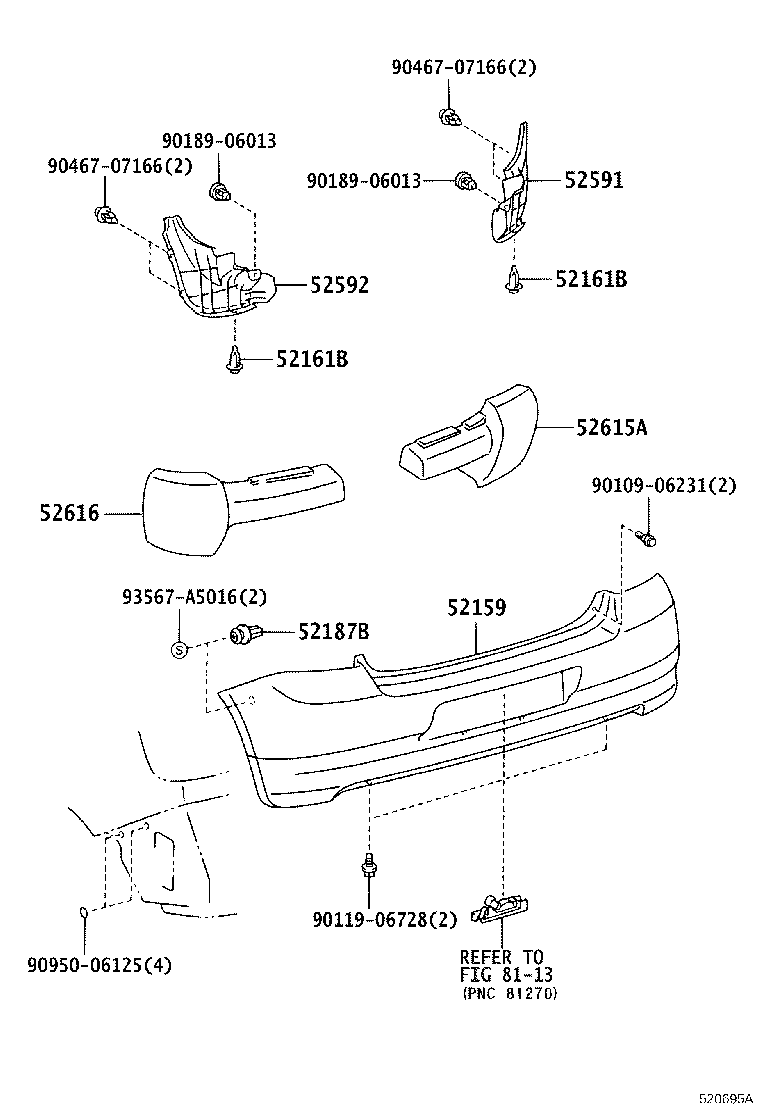

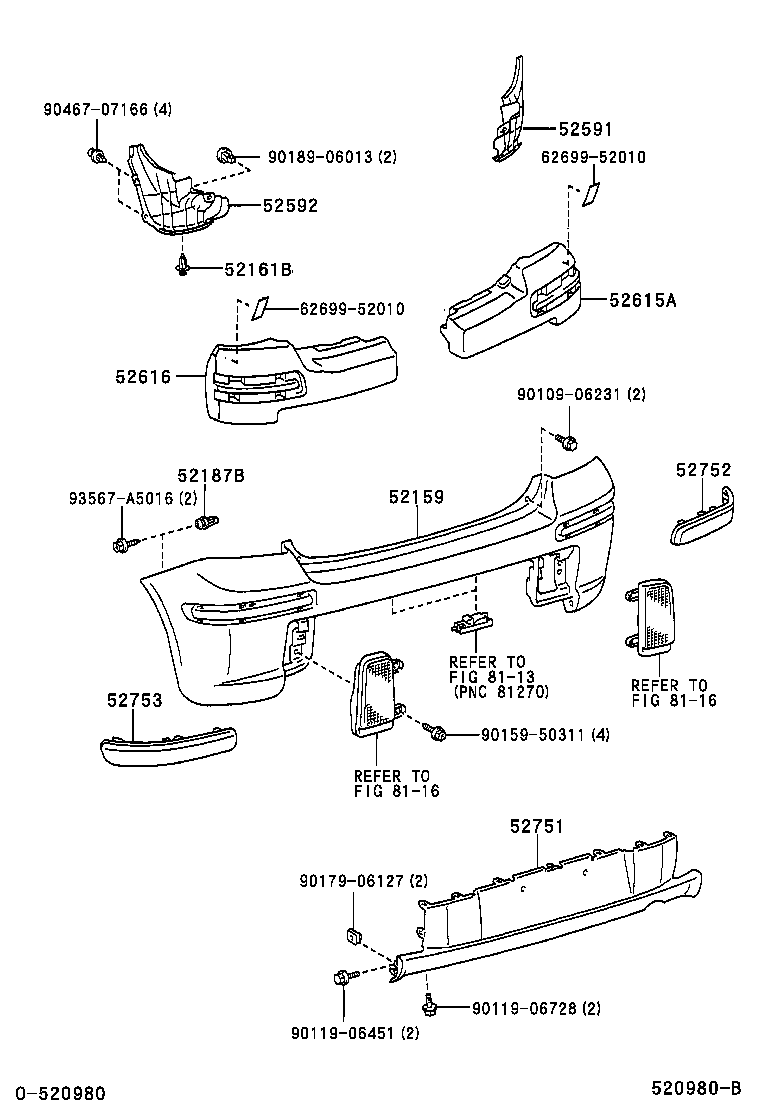

Rear Bumper & Bumper Stay
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52169C | Cover, Rear Bumper, Lower |
| 52187B | Guide, Rear Bumper Location |
| 52565A | Retainer, Rear Bumper, Lower |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52581 | Protector, Rear Bumper, RH |
| 52582 | Protector, Rear Bumper, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52615A | Absorber, Rear Bumper Energy, RH |
| 52616 | Absorber, Rear Bumper Energy, LH |
| 52751 | Moulding, Rear Bumper |
| 52752 | Moulding, Rear Bumper Side, RH |
| 52753 | Moulding, Rear Bumper Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
